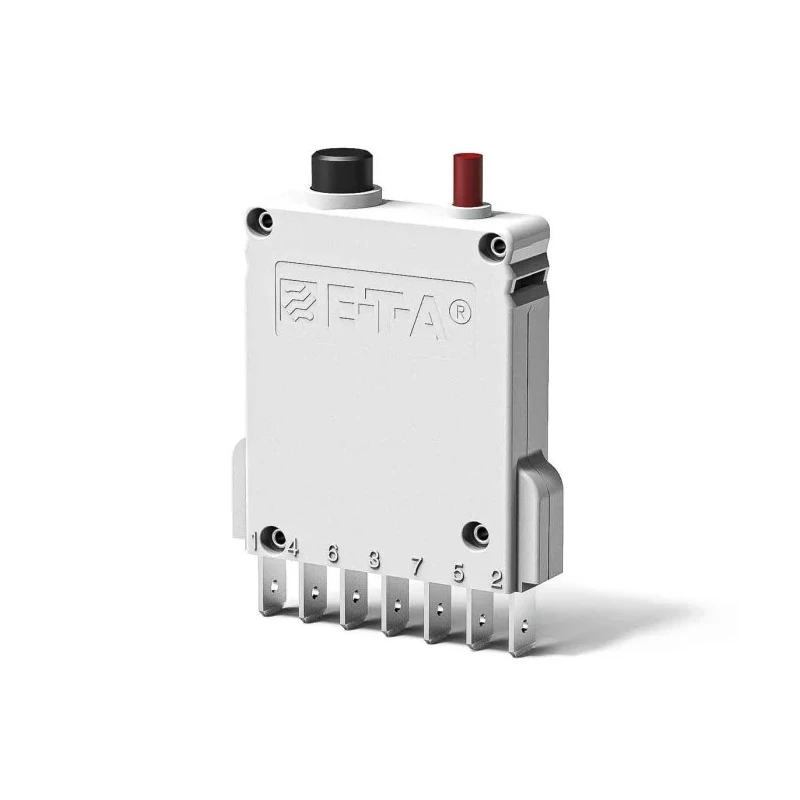

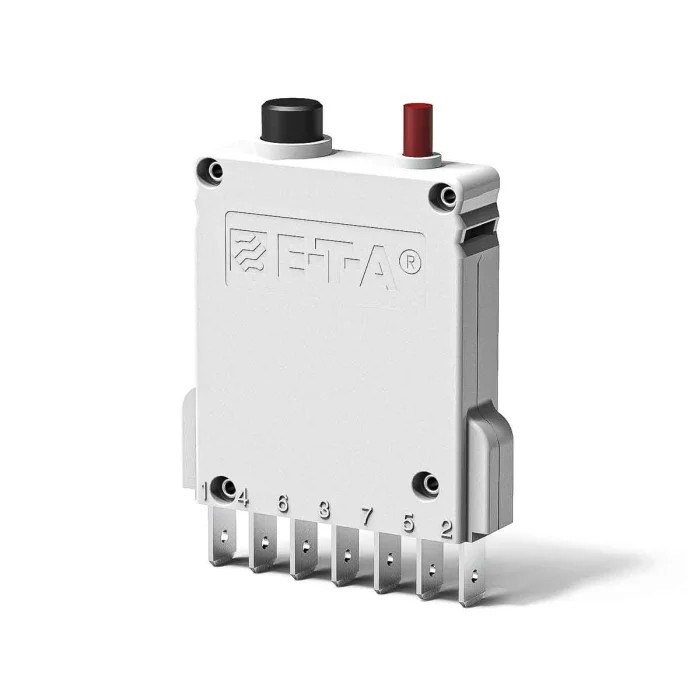

ETA Thermal Magnetic Circuit Breaker Panel Mount 8A Current Rating 1-Pole 250V AC, 65V DC 3600-P10-Si-8A



Category Circuit Breaker Brand ETA Condition New

Specifications

Country of Origin	India
Range	Thermal Magnetic Circuit Breakers
Brand	ETA
Height	50mm
Model	3600-P10-Si-8A
Depth	72mm
Width	11.5mm
Mount Type	Panel
Current Rating	8A
Series	3600
Terminal type	Blade
Breaking Capacity	1000A
Number of Poles	1
Standards/Approvals	VDE, CSA, EN, UL, IEC
Rated AC Voltage	250V ac
Rated DC Voltage	65V dc
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Button

Key Features

Features a thermal magnetic trip-free snap action mechanism for reliable circuit protection.
Operates at a rated AC voltage of 250V and DC voltage of 65V.
Blade terminal type measuring 6.3 by 0.8 mm enables secure electrical connections.
Compact dimensions with width 11.5 mm, height 50 mm, and depth 72 mm.
Reset actuator is a button type, allowing easy manual reset after trip.
Breaking capacity of 1000 A supports safe interruption of fault currents.
Panel mount type suitable for integration in control and instrumentation systems.
Widely approved by UL, CSA, VDE (EN 60934), and IEC standards for safety compliance.

Product Description

ETA 3600-P10-Si-8A thermal magnetic circuit breaker is a single-pole protective device designed for panel mounting applications, boasting an 8 amp current rating and compact dimensions of 11.5 mm width, 50 mm height, and 72 mm depth. This circuit breaker provides secure and reliable protection in electrical systems operating at up to 250V AC and 65V DC.

Equipped with a thermal magnetic trip-free snap action mechanism and a convenient button reset actuator, the breaker ensures accurate trip response and easy manual resetting after fault clearance. The blade terminals measure 6.3 by 0.8 mm, offering a dependable connection interface for electrical wiring.

The 3600 series thermal circuit breakers by ETA are recognized for their robust breaking capacity of 1000 A, capable of interrupting high fault currents safely. These breakers install using E-T-A clip mounting for panel integration or can be plugged into compatible E-T-A sockets (17-P10-Si, 23-P10-Si, 63-P10-Si).

This model meets multiple international safety and performance standards including UL, CSA, VDE, and IEC certifications, confirming its suitability for demanding industrial, laboratory, communication systems, instrumentation, and rail vehicle electrical circuit protections.

Reliable thermal magnetic trip-free snap action mechanism. Rated for 250V AC and 65V DC electrical systems. Compact footprint for panel mounting in tight spaces. Blade terminal connections provide secure wiring interface.

Button type reset actuator for easy manual reset. High breaking capacity of 1000 A. Compliance with UL, CSA, VDE, and IEC standards. Designed for industrial process control and instrumentation protection. Suitable for communications and rail vehicle electrical circuits.
