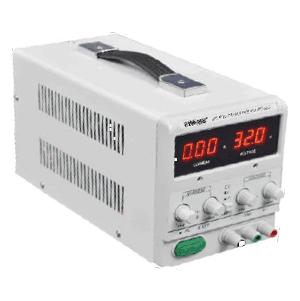

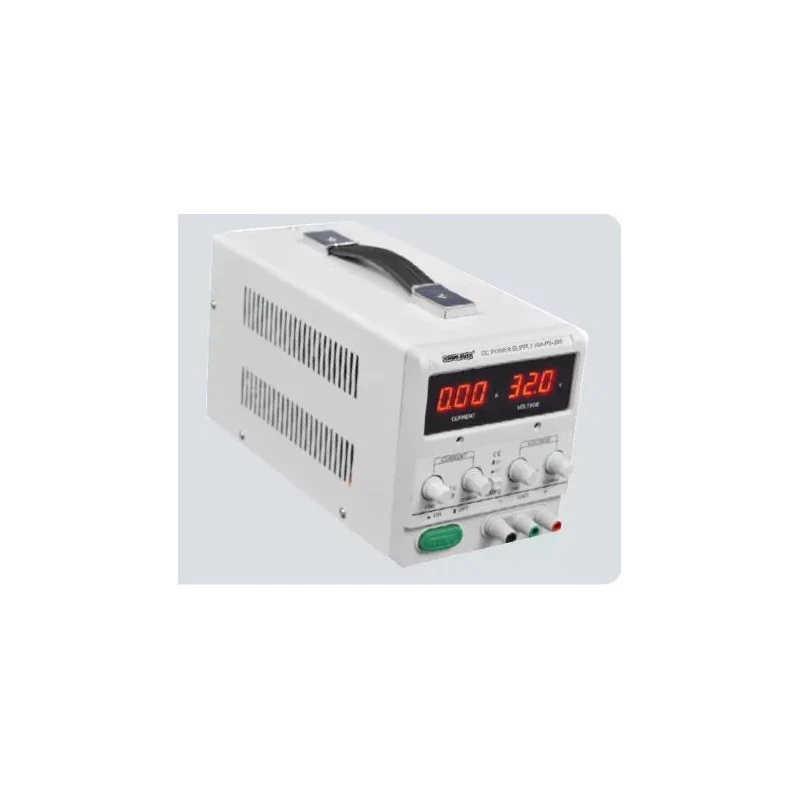

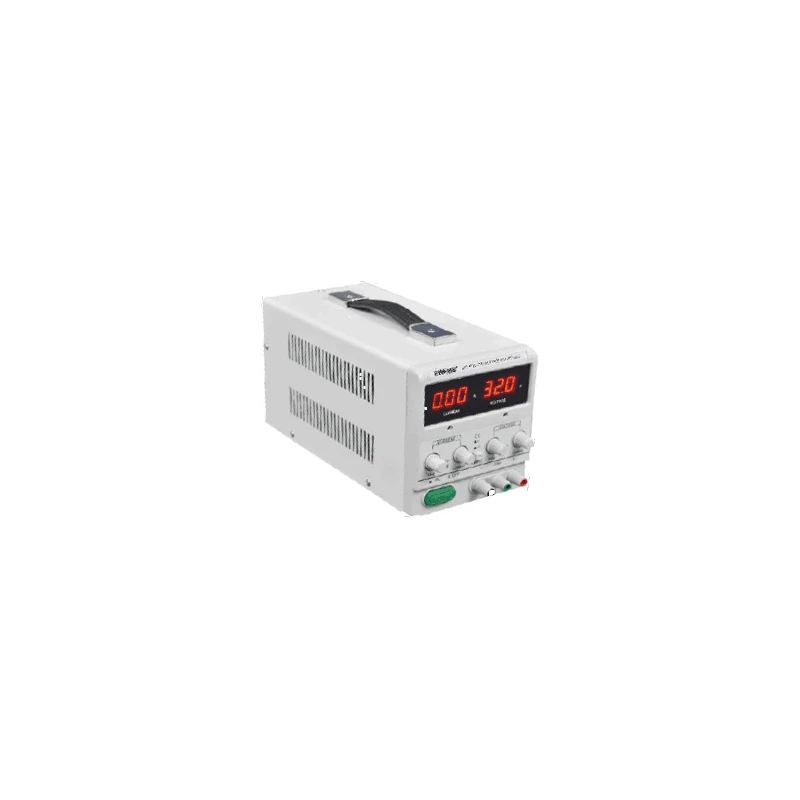

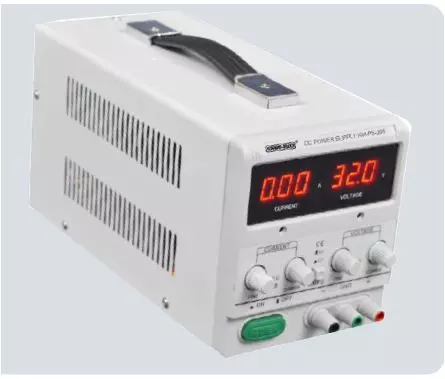

Kusam Meco Ii 0-30 V 0-5 A Dc Regulated Power Supply KMPS305D
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Kusam Meco KM PS 305D-II DC Power Supply / User Manual / Mains Power Cord |
| Brand | Kusam Meco |
| Dimension | 340×260×155mm |
| Function | DC Regulated Power Supply |
| Model | KM-PS-305D II |
| Temperature | 0°C–40°C Up To 80%RH |
| Output Current | 2×0–5A |
| Storage Temp | -10°C–70°C Up To 70%RH |
| Ripple and Noise | CVE 0.5mVrms Up To 3A/1.0mVrms Above 3A/CCE 3mArms |
| Input Voltage | 220V±10% 50Hz±2Hz/110V±10% 60Hz±2Hz |
| Output Voltage | 2×0–30V |
| Current Effect | CVE 1×10⁻⁴±0.5mV/CCE 2×10⁻³±6mA |
| Voltage Display Accuracy | ±1%±2digits |
| Current Display Accuracy | ±2%±2digits |
| Voltage Stability | 1×10⁻⁴±0.5mV |
| Load Stability | 1×10⁻⁴±2mV Up To 3A/1×10⁻⁴±5mV Above 3A |
| Series Mode | 0–60V/0–5A |
| Parallel Mode | 0–30V/0–10A |
| 5V Output Voltage | 5V±3% |
| 5V Output Current | 3A |
| 5V Ripple And Noise | 0.5mVrms |
Key Features
- Dual adjustable outputs with one fixed 5V/3A channel
- Independent, series, or parallel operation modes
- Automatic C.V. and C.C. switching
- Low ripple and high stability with multi-display LED panel
- Integrated current protection for enhanced safety
Product Description
The Kusam Meco KMPS-305D-II Dual DC Power Supply provides two adjustable 0–30V, 0–5A outputs plus a fixed 5V/3A channel. It supports series, parallel, and independent modes. With constant-voltage/current regulation, ultra-low ripple, and fast transient recovery, it ensures superior stability. The 3-digit LED meters display accurate readings for voltage and current.
Available on EnvMart, these Dual DC Power Supplies provide 0–30 V/0–5 A adjustable output. Kusam Meco Devices ensure high efficiency for industrial and testing environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kusam Meco KMPS-305D-II power supply has an output voltage range of 0–30V.
The maximum output current for the Kusam Meco KMPS-305D-II is 5A, with two adjustable outputs of 0–5A each.
The operating temperature range for the Kusam Meco KMPS-305D-II is 0°C to 40°C with a humidity of up to 80% RH.
The input voltage requirement for the Kusam Meco KMPS-305D-II is 220V±10% at 50Hz±2Hz or 110V±10% at 60Hz±2Hz.
The dimensions of the Kusam Meco KMPS-305D-II are 340×260×155mm.
Yes, the Kusam Meco KMPS-305D-II supports independent, series, and parallel operation modes.
The ripple and noise specification for the Kusam Meco KMPS-305D-II is 0.5mVrms up to 3A and 1.0mVrms above 3A for CVE, and 3mArms for CCE.
The package of the Kusam Meco KMPS-305D-II includes the power supply unit, a user manual, and a mains power cord.
The voltage display accuracy of the Kusam Meco KMPS-305D-II is ±1% ±2 digits.
The Kusam Meco KMPS-305D-II has a fixed output voltage of 5V and a fixed output current of 3A.
The storage temperature range for the Kusam Meco KMPS-305D-II is -10°C to 70°C with a humidity of up to 70% RH.
The load stability specification for the Kusam Meco KMPS-305D-II is 1×10⁻⁴±2mV up to 3A and 1×10⁻⁴±5mV above 3A.
