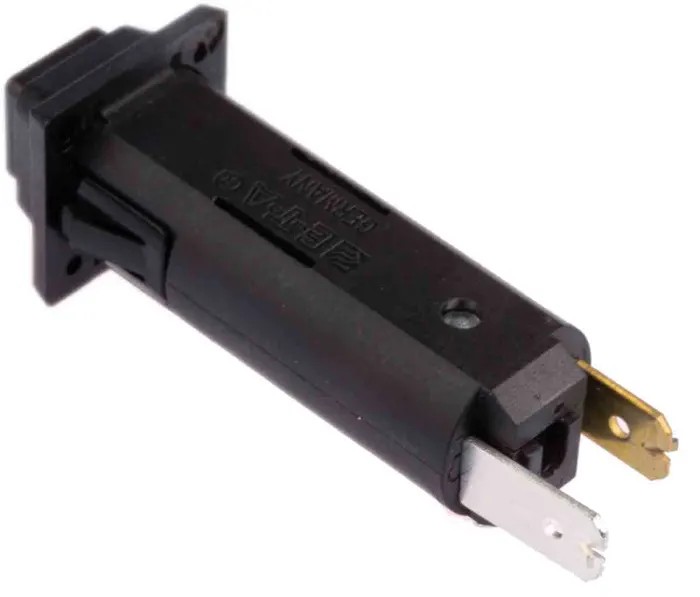

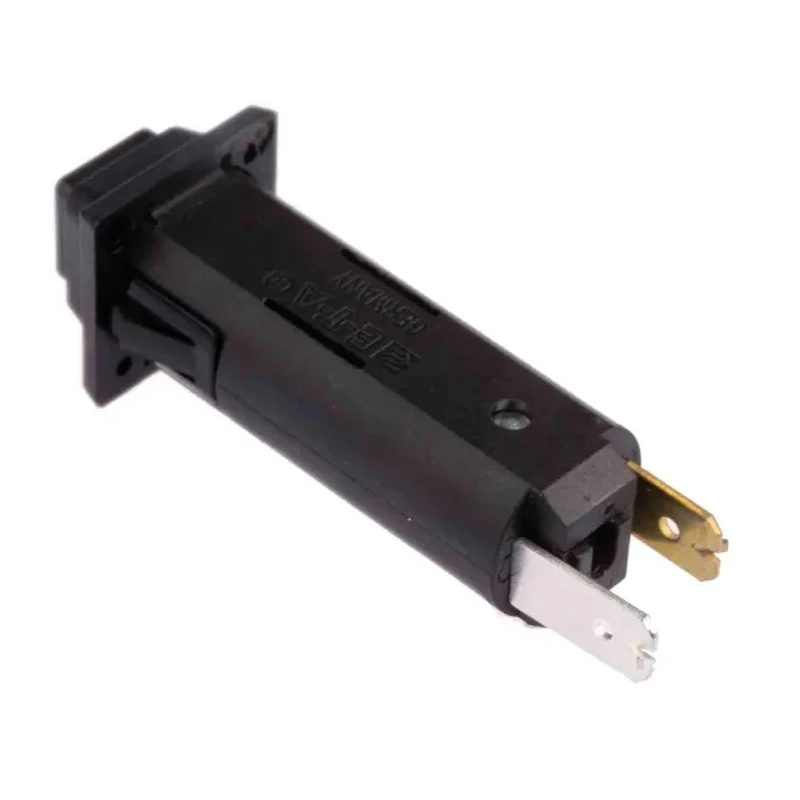

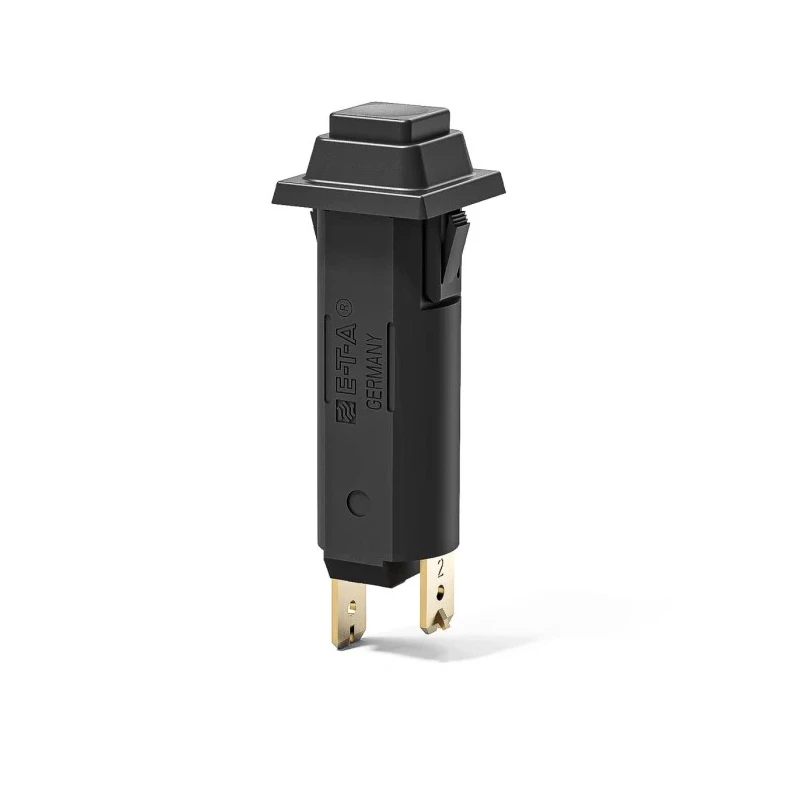

ETA Thermal Circuit Breaker 2A Current Rating 1-Pole Panel Mount 250V AC 50V DC 1110-F112-P1M1-2A

ETA 1110-F112-P1M1-2A Thermal Circuit Breaker 2A Current Rating 1-Pole Panel Mount is engineered for effective protection and control in electrical circuits. Designed primarily for motors, transformers, and power supplies, this thermal breaker operates with a reliable thermal tripping mechanism and features a button-reset actuator for easy manual resetting.

With a compact panel mount form factor measuring 19 mm in width and 50.3 mm in height, it fits standard front panel snap-in mounting cut-outs and offers blade-type terminals sized 6.3 x 0.8 mm for secure connections. The breaker supports rated AC voltage of 250V and DC voltage of 50V, and provides a breaking capacity of 25A to safely interrupt fault currents.

This device features type R tripping characteristics with medium break time, delivering a typical tripping response time between 20 to 30 seconds at twice its nominal current rating. It incorporates a tease free/trip free mechanism to enhance user safety and operational reliability. A square black pushbutton switch serves both as an actuator and visual tripped/off position indicator, facilitating quick diagnostics.

The ETA 1110 series thermal breaker has a typical electrical life of 300 operations at twice the nominal current rating, ensuring durability for industrial, laboratory, and commercial automation applications. It conforms to essential global standards including CE and RoHS, and holds approvals from UL, CSA, and VDE, reinforcing its compliance and quality.

Rated current of 2A suitable for motor, transformer, and power supply applications. Panel mount design with a width of 19 mm and height of 50.3 mm for compact installation. Thermal tripping mechanism with type R characteristics ensures quick response to overcurrent.

Supports AC voltage up to 250V and DC voltage up to 50V with a breaking capacity of 25A. Blade-type terminals enable secure electrical connections. Features a visual indication for tripped/off position for easy troubleshooting.

Designed with a tease free/trip free mechanism for enhanced operational safety. Typical life expectancy of 300 operations at twice the nominal current rating. Complies with CE and RoHS standards and holds UL, CSA, and VDE approvals.

This thermal Circuit Breaker is suitable for use in industrial controls, electrical panels, HVAC systems, and various automated equipment, where reliable circuit protection against overloads is critical. Experience the trusted quality and performance of ETA products at EnvMart.
