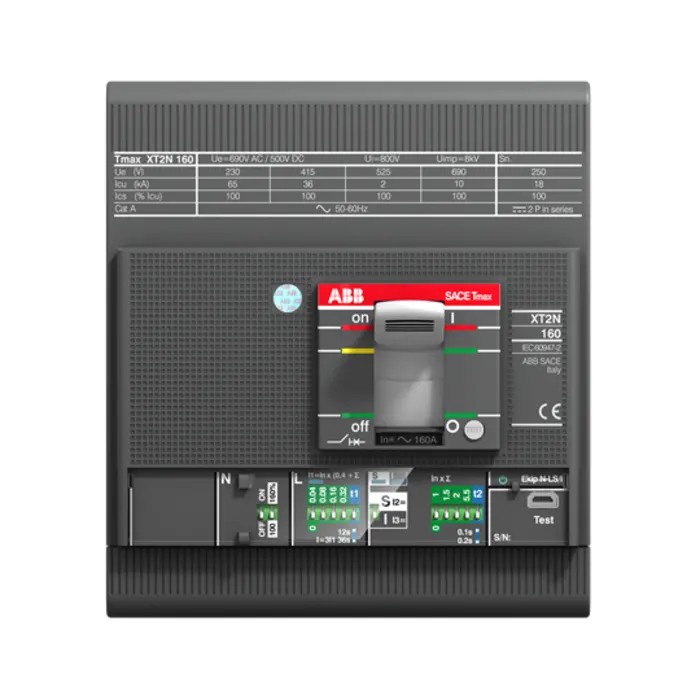

ABB Molded Case Circuit Breaker 4-Pole 10A Breaking Capacity 85 kA Fixed Terminal 690V AC XT2S 1SDA06 1SDA067845R1

Free Delivery in India | Lowest Global Shipping Charges

ABB Molded Case Circuit Breaker 4-Pole 10A Breaking Capacity 85 kA Fixed Terminal 690V AC XT2S 1SDA06 1SDA067845R1



Category Molded Case Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	XT2S
Brand	ABB
Height	130mm
Model	XT2S
Depth	82.5mm
Width	120mm
Mount Type	Fixed
Current Rating	10A
Series	1SDA06
Terminal type	Fixed
Breaking Capacity	85kA
Number of Poles	4
Standards/Approvals	CE, IEC, RoHS
Rated AC Voltage	690V ac
Better World Claim	Designed for Disassembly
Tripping Mechanism	Solid State
Reset Actuator Type	Lever
Short circuit performance level	S

Key Features

Features a solid state tripping mechanism for reliable protection.
Designed with a lever reset actuator for easy manual resetting.
Complies with CE, IEC, and RoHS standards ensuring safety and environmental compliance.
Compact dimensions with height 130 mm, width 120 mm, and depth 82.5 mm.
Provides high breaking capacity of 85 kA suitable for industrial electrical protections.
Constructed as a fixed mount with fixed terminals for secure installation.
Manufactured in Italy following quality and performance standards.
Part of the XT2S series with the 1SDA06 range designation.

Product Description

ABB XT2S Molded Case Circuit Breaker 4-Pole 10A model 1SDA067845R1 is a high-performance electrical protection device designed for industrial and commercial applications requiring reliable circuit interruption and safety.

This circuit breaker features a 4-pole configuration and fixed terminal type to ensure secure and stable connectivity in electrical distribution systems. Rated at 690 Vac operational voltage and withstanding up to 1000 V insulation voltage (Ui), it is capable of handling demanding electrical conditions.

The tripping mechanism is solid state release type EL, providing precise and consistent operation with a 10A rated nominal current (In). It incorporates the EKIP LSI technology for adjustable long-time, short-time, and instantaneous tripping characteristics.

Designed in compliance with international standards including CE, IEC, and RoHS, this ABB circuit breaker assures safety, environmental friendliness, and interoperability within a wide range of electrical systems.

Its compact construction measures 130 mm in height, 120 mm in width, and 82.5 mm in depth, making it suitable for integration into electrical panels with space constraints.

Key operational performance indicators include a breaking capacity of 85 kA and a short circuit performance rated at level S, ensuring robust protection against electrical faults and short circuits in industrial environments.

The device is designed for fixed mounting with a lever-type reset actuator for ease of resetting after tripping events. Its Better World certification claims a design aimed at disassembly, supporting sustainability and recyclability efforts in electrical hardware manufacturing.

Ideal for use in electrical distribution, automation, manufacturing, and industrial settings, this MCCB provides durable and precise circuit protection to enhance safety and system reliability.

Features a solid state tripping mechanism for consistent protection performance. Compliance with CE, IEC, and RoHS ensures regulatory and environmental standards. Supports fixed terminal mounting for stable panel installation.

Compact dimensions facilitate integration into tight spaces. Rated for high operational voltage and short circuit breaking capacity. Designed for easy manual resetting with a lever actuator. Explore ABB's range of Molded Case Circuit Breakers and related electrical protection products in the Electronics & Electricals category at EnvMart.
