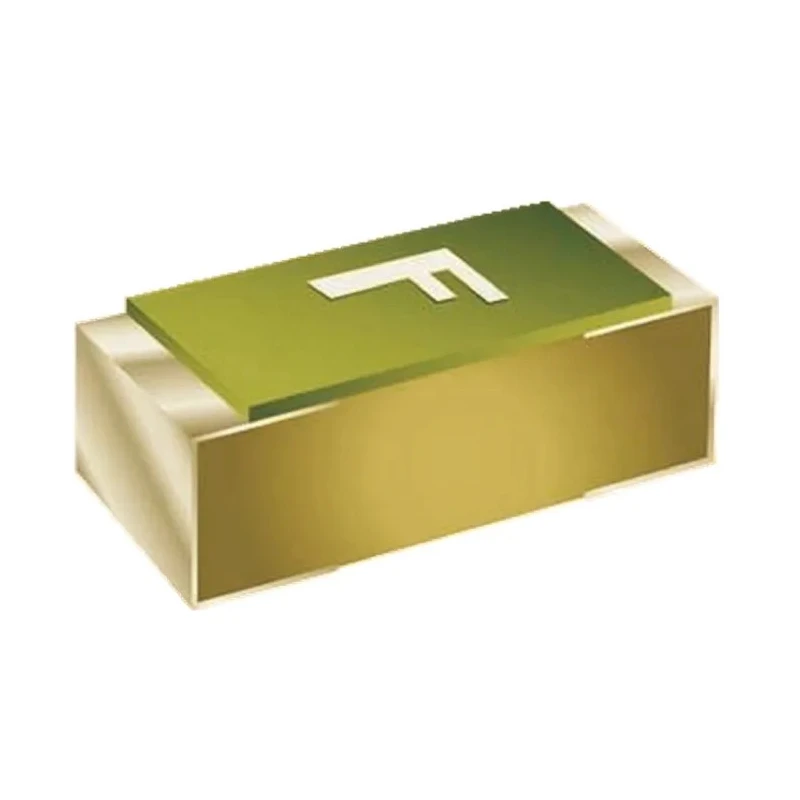

Schurter Super Quick Acting Non-Resettable Fuse 500mA, 63V dc, Epoxy Glass Body, 3412.0113.22

Schurter 3412.0113.22 is a super quick acting non-resettable fuse rated at 500mA, designed to operate at 63V DC. Featuring an epoxy glass body and tin plated copper terminals, this fuse combines robust construction with excellent electrical performance.

The compact 0603 package size (1.6 x 0.8 mm) allows efficient surface mount technology (SMT) integration, significant for space-constrained circuit board applications. The fuse has a breaking capacity of 50A, enabling it to reliably interrupt faults swiftly and protect sensitive electronic components.

Operating temperature range is broad, from -55°C to 90°C, supporting use in varied environmental conditions. The resistance of 225 milliohms ensures precise current limitation, reducing potential damage during overcurrent events.

Certified with RoHS, CSA, REACH, UL 248-14, and CE approvals, the fuse meets rigorous international safety and environmental standards, making it suitable for demanding industrial and commercial electronic assemblies.

Its applications include protecting high-value silicon ICs in alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, and medical apparatus where fast, reliable circuit protection is essential.

The epoxy glass body ensures durability and high insulation. Compact 0603 package size measuring 1.6 x 0.8 mm allows space-efficient mounting. Breaking capacity of 50A provides robust circuit interruption capability. Operating temperature ranges from -55°C minimum to 90°C maximum.

Tin plated copper terminals enhance conductivity and solderability. Compliance with RoHS, CSA, REACH, UL 248-14, and CE standards guarantees quality and safety. Series USF 0603 fuse designed for reliable surface mount installation.

Resistance of 225 milliohms supports precise current limiting. Ideal for protecting sensitive electronic equipment such as alarm systems, audio/visual devices, and power supplies. Manufactured in Switzerland, supporting high manufacturing standards.

This non-resettable fuse is a critical component in ensuring the longevity and safety of electronic circuits in industrial, commercial, and medical applications. Explore more circuit protection devices and Schurter products with EnvMart’s selection.
