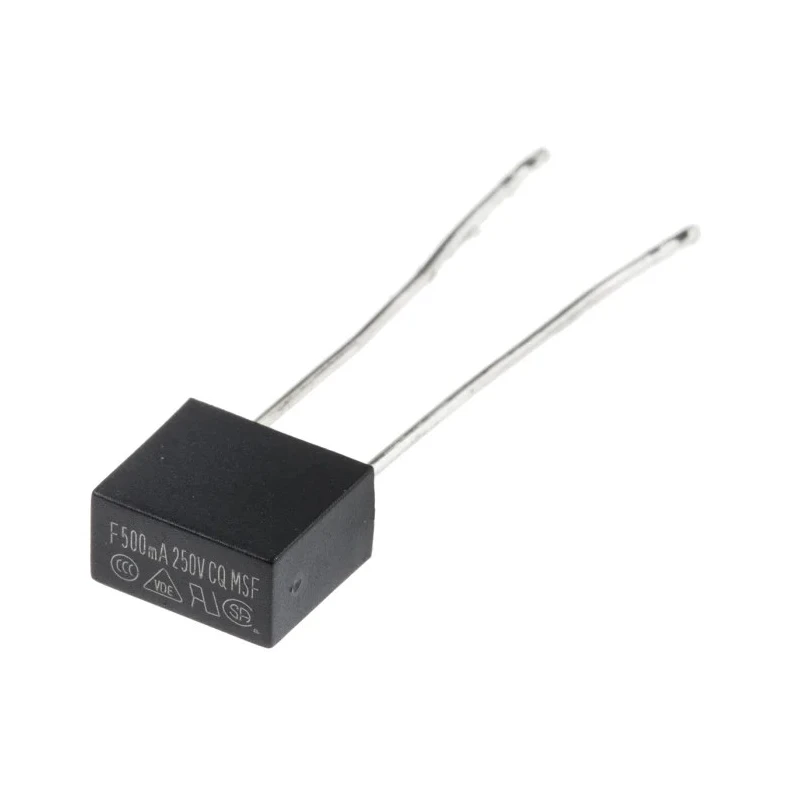

RS PRO Non-Resettable Fuse, Radial, 500mA, 250V, Fast Acting, Thermoplastic Body 767-5106
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V |
| Diameter | 0.62mm |
| Brand | RS PRO |
| Body Material | Thermoplastic |
| Height | 7.7mm |
| Length | 8.35mm |
| Model | 767-5106 |
| Width | 4.3mm |
| Current Rating | 500mA |
| Series | RS PRO |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Lead Length | 22mm |
| Breaking Capacity | 35A |
| Standards/Approvals | RoHS, CSA |
| Fuse Characteristics | Fast Acting |
| Lead Orientation | Radial |
Key Features
- Designed with radial lead orientation for convenient PCB mounting.
- Fast acting fuse characteristics ensure quick circuit protection.
- Thermoplastic polyamide body enhances safety and insulation.
- Operates reliably between -55°C and 125°C temperature range.
- Breaking capacity of 35A supports high fault currents safely.
- Compact dimensions with length 8.35mm, width 4.3mm, and height 7.7mm.
- Lead length of 22mm and diameter of 0.62mm for robust connection.
- Complies with RoHS and CSA standards for quality and environmental safety.
Product Description
RS PRO 767-5106 Non-Resettable Fuse is a reliable radial lead fuse designed for circuit protection under demanding electrical conditions. Rated for 500mA current and 250V voltage, this fast acting fuse features a thermoplastic polyamide body that provides excellent insulation and durability.
This fuse operates effectively over a broad temperature range from -55°C up to 125°C, making it suitable for use in industrial and electronic devices exposed to variable thermal environments. Its fast acting characteristic delivers rapid interruption of overcurrent events, thereby protecting sensitive components and preventing damage.
The fuse measures 8.35mm in length, 4.3mm in width, and 7.7mm in height, with lead dimensions of 22mm length and 0.62mm diameter, facilitating secure and easy mounting on printed circuit boards via radial leads.
The breaking capacity is rated at 35A, enabling it to safely interrupt high fault currents without compromising circuit integrity. This product complies with the RoHS directive and the CSA safety standards, affirming its adherence to quality and environmental regulations.
Radial lead fuse construction for PCB assembly. Fast acting fuse attributes for enhanced protection. Thermoplastic body material ensuring electrical safety. Wide operational temperature range from -55°C to 125°C. Breaking capacity of 35A for high fault current handling.
Compact size ideal for constrained electronic assemblies. Standards compliant with RoHS and CSA. Manufactured in Taiwan, Province of China.
This RS PRO non-resettable fuse is suitable for use in industrial automation, consumer electronics, and manufacturing applications where effective overcurrent protection is essential. It lends itself to applications within circuit breakers, controllers, and various electrical and automation systems.
Explore more industrial electrical protection components and quality RS PRO products on EnvMart for robust and dependable electronic circuit safeguarding solutions.
Explore more products in our Non Resettable Fuse category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 500mA, making it suitable for applications requiring this level of current protection.
The voltage rating for this fuse is 250V, allowing it to be used in circuits operating at this voltage level.
The breaking capacity of this fuse is rated at 35A, enabling it to safely interrupt high fault currents.
This fuse measures 8.35mm in length, 4.3mm in width, and 7.7mm in height, making it compact for PCB mounting.
The lead length is 22mm with a diameter of 0.62mm, providing robust connections for mounting.
It operates reliably between -55°C and 125°C, suitable for various thermal environments.
The body of this fuse is made from thermoplastic polyamide, enhancing safety and insulation.
This fuse complies with RoHS and CSA standards, ensuring adherence to quality and environmental regulations.
The fast acting characteristic allows for rapid interruption of overcurrent events, protecting sensitive components effectively.
It is suitable for use in industrial automation, consumer electronics, and manufacturing applications where overcurrent protection is essential.
This model features a radial lead orientation, facilitating convenient PCB mounting.
This RS PRO non-resettable fuse is manufactured in Taiwan, Province of China.
