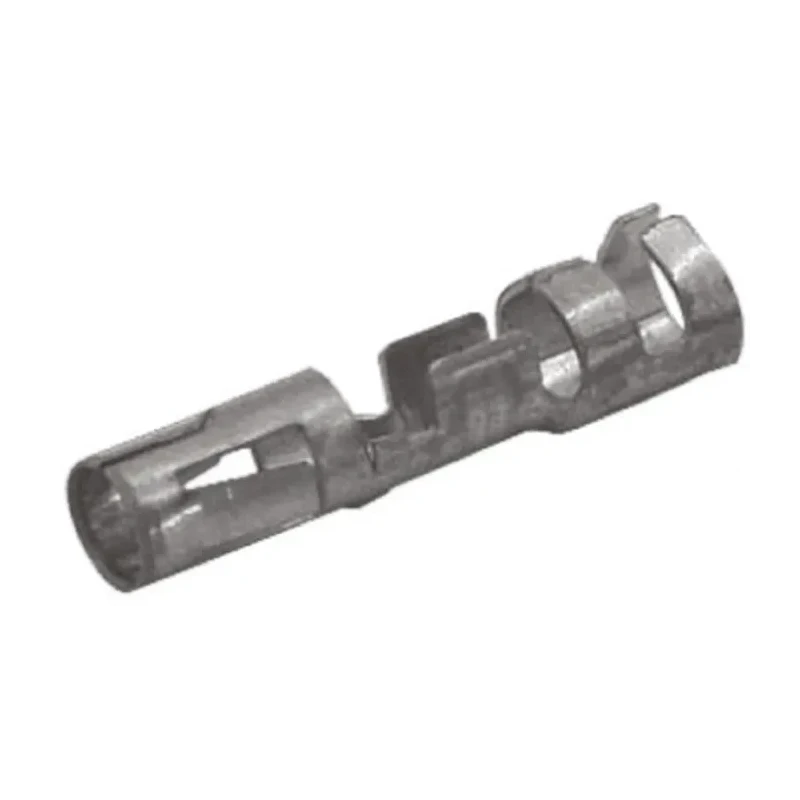

TE Connectivity 0.140 Mate-N-LOK Series Female Crimp Terminal, 20 AWG Minimum Crimp, 14 AWG Maximum Crimp 61626-1

TE Connectivity model 61626-1 is a Female Crimp Terminal from the 0.140 Mate-N-LOK Series designed for industrial and electronic applications requiring reliable wiring connections. This terminal is engineered for use with .140 Mate-N-LOK connector housings and supports wire sizes from 20 AWG (0.52 mm²) minimum to 14 AWG (2.08 mm²) maximum, allowing flexibility for various wiring needs.

Constructed from brass with tin plating, this crimp terminal features excellent electrical conductivity and resistance to corrosion, ensuring long term durability. The contact resistance is maximally 4 mΩ, supporting efficient current flow with minimal losses. Rated for currents up to 10 A, it is suitable for moderate power electronic components.

The terminal length of 20.19 mm allows precise fitment within the connector housing and wiring assemblies. It operates effectively across a wide temperature range from -55°C to 105°C, suitable for harsh industrial and commercial environments.

Termination is crimp type, providing secure and durable wire connections. The design includes dual locking lances assuring optimum contact stability, crucial for vibration-resistant and reliable connections. These features make it well-suited for internal equipment requiring wire-to-wire connections with discrete wire spacing of 6.09 mm (0.24 inches) pitch.

The fully polarized nylon housing minimizes risk of misconnection and reduces insertion and extraction forces, protecting contacts fully within the housing. Users should note that no insertion tool is recommended due to the larger wire sizes handled by these terminals.

This product finds application in electronic components, power connectors, industrial automation systems, and manufacturing environments requiring robust and precise electrical connections. TE Connectivity upholds stringent manufacture quality standards, ensuring consistent performance in heavy-duty or sensitive electrical applications.

Designed for reliable connections with a current rating of 10 amps. Constructed from brass with tin plating for excellent conductivity and corrosion resistance. Length measures 20.19 mm ensuring compatibility with .140 Mate-N-LOK connector housings.

Operating temperature ranges from -55°C to 105°C for varied environmental conditions. Crimp termination type allows for secure mechanical and electrical connection. Features dual locking lances that provide optimum contact stability.

Suitable for internal equipment wire-to-wire discrete wire connections at 6.09 mm pitch. Fully polarized nylon housings offer low insertion and extraction forces with complete contact protection. No special insertion tool is recommended for these contacts due to larger wire sizes.
