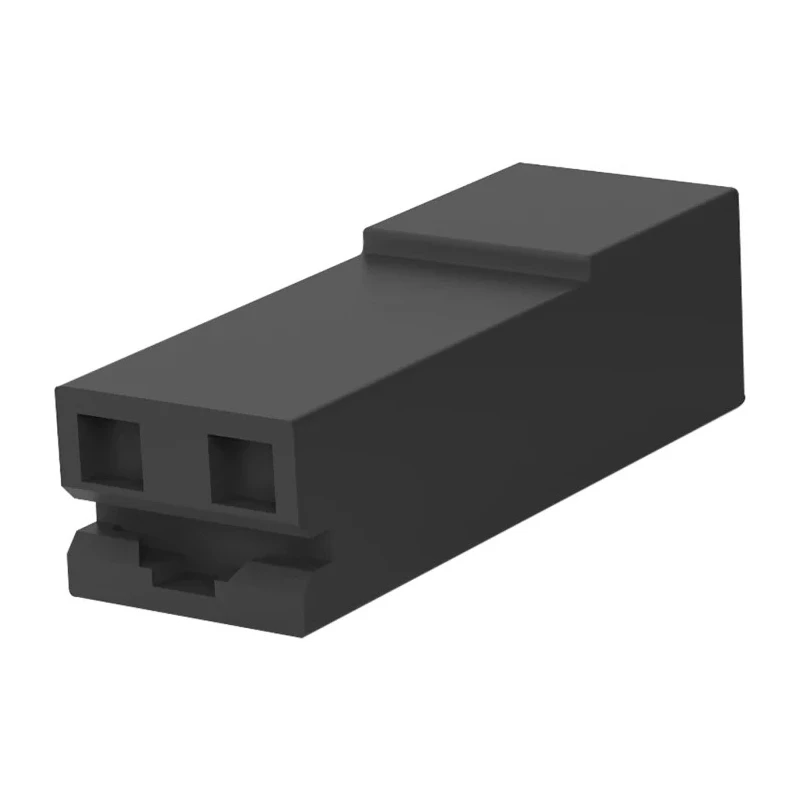

TE Connectivity 0.250 1 Way LCP Crimp Terminal Housing with 9.78 mm Tab Size Black 1969820-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity 0.250 1 Way LCP Crimp Terminal Housing with 9.78 mm Tab Size Black 1969820-1

Name: TE Connectivity 0.250 1 Way LCP Crimp Terminal Housing with 9.78 mm Tab Size Black 1969820-1
Brand: TE Connectivity
SKU: 211161
Price: 0.45 USD
Availability: InStock



Category Crimp Terminal Housings Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Black
Body Material	LCP
Length	28.83mm
Connector Type	Receptacle
Series	0.250
Number of Contacts	1
Minimum Wire Size AWG	10AWG
Maximum Wire Size AWG	12AWG
Tab Width	9.78mm
Tab Thickness	8.36mm
Tab Size	9.78 x 8.36 mm

Key Features

Constructed from high-temperature LCP material rated from -40 to +240°C.
Features internal locking ramps for secure connection retention.
Designed for use with wire sizes from 10 AWG to 12 AWG.
Black color housing with 28.83 mm length and 8.36 mm tab thickness.
Suitable for applications demanding strong vibration and mechanical strain resistance.
Acts as a removal tool by unlocking the mated tab when pulled.
Ideal for automotive, industrial equipment, control cabinets, and white goods.

Product Description

TE Connectivity 1969820-1 0.250 1 Way LCP Crimp Terminal Housing is an advanced receptacle-type connector housing offering robust insulation and secure terminal locking. Manufactured from UL 94V-0 rated black Liquid Crystal Polymer (LCP), this housing withstands extreme operating temperatures ranging from -40 to +240°C, making it highly reliable for demanding industrial and automotive environments.

The housing includes internal locking ramps that engage with the receptacle latch to prevent unintended disconnection even under severe vibration or mechanical strain conditions. With a tab size of 9.78 mm by 8.36 mm thickness and accommodating wire sizes between 10 AWG and 12 AWG, it supports versatile wiring needs for power and signal applications.

Its length of 28.83 mm and robust design provide a compact yet durable connection interface. The positive locking feature enables easy unmating by acting as a removal tool that disengages the receptacle latch when the housing is pulled, simplifying maintenance and servicing tasks.

This crimp terminal housing is ideally suited for passenger vehicles, off-road vehicles, trucks, buses, industrial equipment, ovens, and control cabinets. The reliable insulation and locking mechanism ensure extended service life even in high temperature and vibration-prone applications.

High-temperature resistant LCP material rated -40 to +240°C. Internal locking ramps secure terminal connections firmly. Housing acts as a removal tool for easy unmating. Compatible with 10 AWG to 12 AWG wires for versatile use.

Compact 28.83 mm length housing for efficient space usage. Suitable for heavy-duty automotive and industrial applications. Black UL 94V-0 flame retardant housing material. Explore the TE Connectivity Positive Lock MK II 250 series for reliable, high-quality connection solutions in your electronic components selection on EnvMart.

Explore more products in our Crimp Terminal Housings category.
