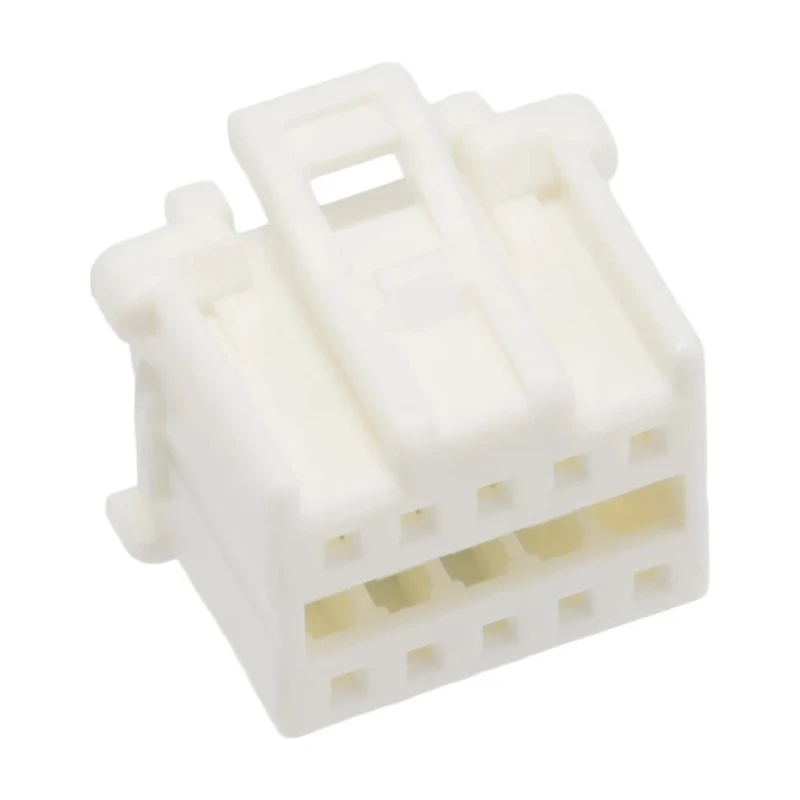

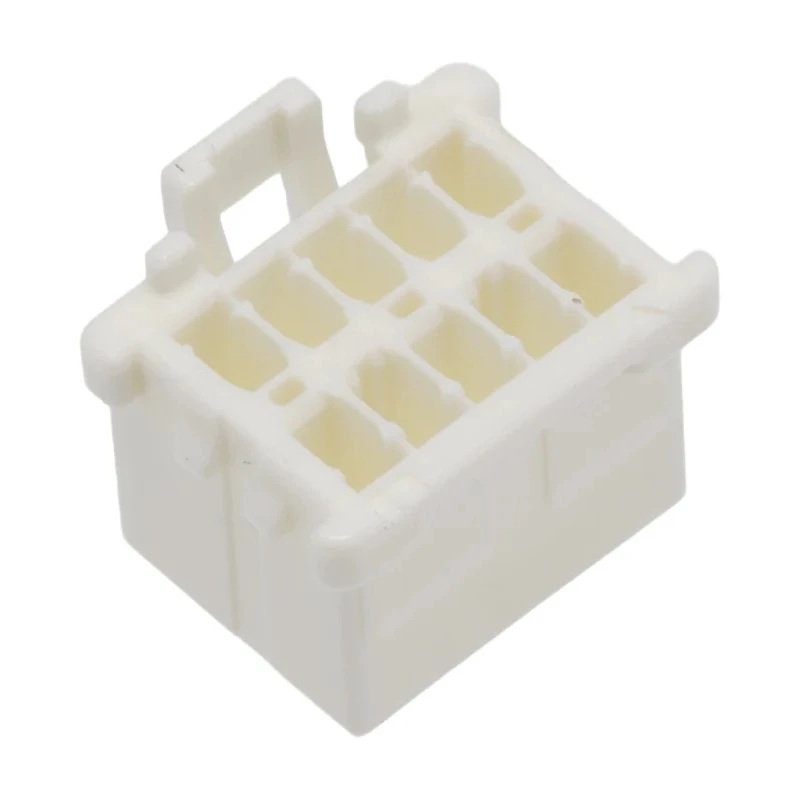

Molex MicroClasp Female Connector Housing 2 mm Pitch 10 Way 2 Row Straight 51353-1000

Molex 51353-1000 MicroClasp Female Connector Housing is a 2 mm pitch, 10 way, 2 row straight connector housing designed for wire-to-board applications. It is made of nylon, providing durability and robust performance in electrical connection systems.

This dual-row receptacle housing supports compact PCB layouts by offering a small 2.00 mm pitch footprint, enabling space savings in electronics design. The MicroClasp series integrates an inner positive lock, providing secure mating and retention with an audible click, ensuring reliable connection security.

The connector housing interfaces seamlessly with MicroClasp crimp terminal contacts and headers, facilitating efficient assembly. Its low insertion force terminal design reduces wear and ease of operation in manufacturing or field applications.

With a current carrying capacity up to 3.0 Amperes, this connector is well suited for various electronic, industrial, and commercial use cases requiring compact, reliable, and easy-to-use wiring solutions.

The housing includes a lance system that stabilizes the interface and ensures correct positioning on the PCB. The absence of formal standards or approvals (No approvals listed) should be taken into consideration based on end-use requirements.

The housing is made from durable nylon material ensuring long service life. Double row, 10 contact configuration optimizes wiring density. 2.0 mm pitch footprint allows PCB space efficiency and compact wiring. Inner positive lock provides secure retention and audible confirmation of mating.

Supports current up to 3.0 A in a compact connector assembly. Compatible with MicroClasp crimp terminals and headers for assembly flexibility. Low insertion force terminals reduce wear and facilitate easy mating/unmating.

Includes housing lance system for enhanced stability on the PCB. Measures 13.4 mm length and 11.5 mm width for precise fitting.

This connector housing is widely applicable in electronics manufacturing, assembly, and repair. It suits use in industrial automation, commercial electronics, telecommunications, and other fields requiring compact connector solutions.
