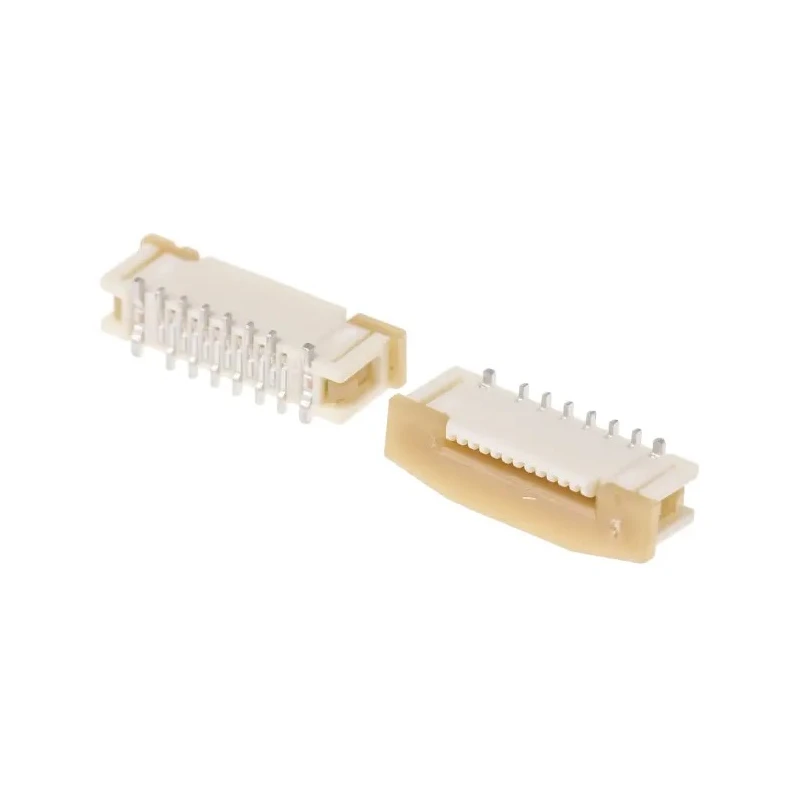

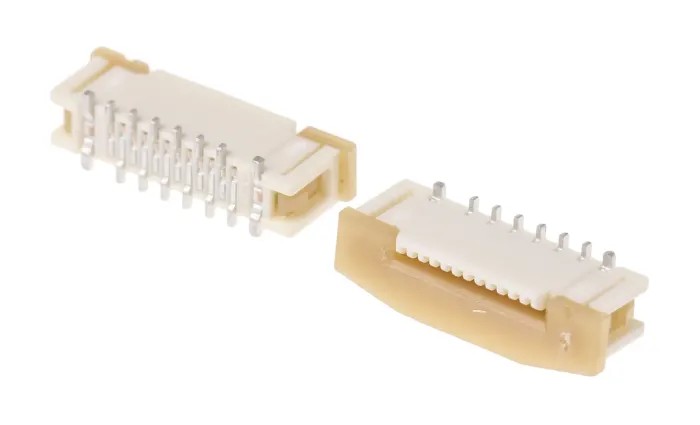

Molex 0.5 mm Pitch 12 Way Straight Female FPC Connector, Solder 52559-1252

Molex 52559-1252 is a 0.5 mm pitch, 12 way straight female FPC connector with solder termination, designed for high density interconnect applications requiring reliable electrical contact.

It features a ZIF (Zero Insertion Force) vertical surface mount contact system with a slide type actuator providing secure and repeatable connections suitable for tight packaging environments.

The connector housing is constructed from nylon for mechanical robustness and electrical insulation, supporting operating temperatures from -20°C to 85°C. Its contact material is phosphor bronze with gold over nickel plating to ensure signal integrity and corrosion resistance under demanding conditions.

With a current rating of 500mA and voltage rating of 50V AC, this connector is intended for signal and data transmission in automotive navigation systems, digital cameras, GPS devices, smartphones, medical monitors, and other mobile communication equipment.

The design includes solder tabs on the base to provide secure printed circuit board retention and strain relief, enhancing mechanical stability during field use and assembly. This FPC Connector supports 12 contacts in a single row with a pitch of 0.5 mm.

ZIF insertion force technology enables repeat-cycling with minimal wear on contacts. Slide type actuator ensures easy insertion while maintaining secure locking of the flat flexible cable. Contact plating of gold over nickel improves electrical conductivity and durability.

The nylon housing offers excellent insulation and mechanical strength. Operating temperature range enables usage in a broad array of industrial and consumer environments. Locking mechanism assures reliable connection retention during use.

Suitable for automotive, consumer electronics, medical, and telecommunications applications. Compact design helps in saving space in tight packaging assemblies.

EnvMart offers this Molex 52559-1252 connector for industrial, laboratory, manufacturing, and electronic assembly sectors where high reliability and compact signal interconnection solutions are required.
