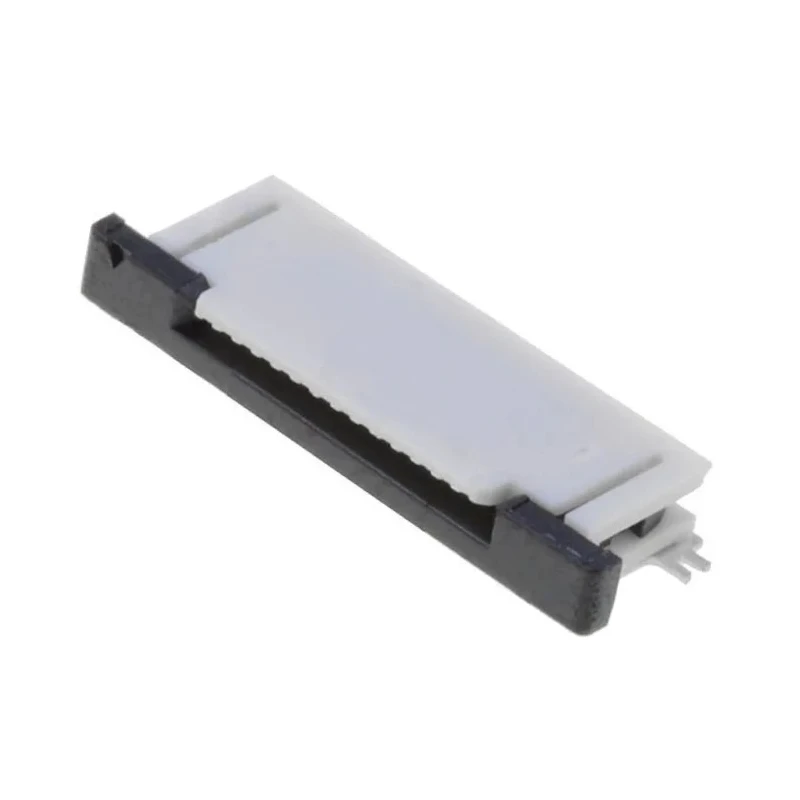

Molex 0.5 mm Pitch 14 Way Straight Easy-On FPC Connector Solder Termination 52745-1497

Molex 52745-1497 is a 0.5 mm pitch, 14 way straight FPC connector designed for secure and compact interconnection of flat flexible cables in electronic assemblies. This Easy-On connector features a Zero Insertion Force (ZIF) slide actuator that allows easy insertion and removal of cables without damaging the contacts, making it ideal for repeated cycling in demanding industrial and commercial applications.

The connector uses gold-plated phosphor bronze contacts which offer excellent conductivity and wear resistance, ensuring signal integrity and long-lasting performance. Its solder termination provides reliable mounting on the PCB with additional solder tabs for strain relief and mechanical stability. The polypropylene housing material provides effective insulation and durability.

Designed for use within a voltage rating of 50 V and current of 500 mA, the connector supports a single row of 14 contacts with a top contact position in a straight orientation. The built-in locking mechanism further secures the connection for reliable operation in automotive, consumer electronics, datacomm, medical, and mobile device applications.

This product operates within the temperature range of -20°C to 85°C and features a space-saving design suitable for compact circuit designs requiring high-density and reliable FPC connections. It is part of the Molex 52745 series known for quality and robust performance in flat flexible cable interconnections.

The 0.5 mm pitch ensures compactness for tight packaging requirements. ZIF slide actuator minimizes wear and facilitates replacement cycles. Gold-plated phosphor bronze contacts provide excellent electrical performance. Solder tabs on the base ensure secure PCB mounting and strain relief.

Locking mechanism enhances connection security during use. Single row configuration supports 14 contacts for precise signal routing. Operates reliably over a wide temperature range (-20°C to 85°C). Polypropylene housing offers insulation and durability.

This Molex FPC connector model 52745-1497 is ideal for industries including automotive navigation, consumer electronics, medical monitoring devices, and telecommunication equipment where reliable, compact, and maintainable cable connections are critical. For a full range of FPC Connectors, explore the related Molex 52745 series within EnvMart.
