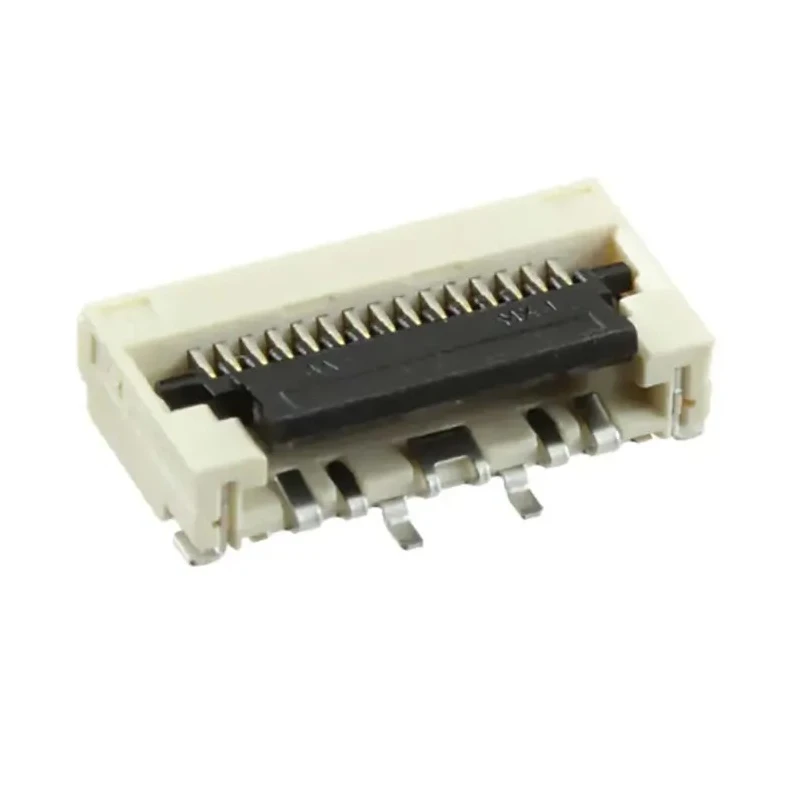

Molex 0.5 mm Pitch 15 Way Right Angle Female FPC Connector, Bottom Contact 5022441530

Molex 5022441530 is a high precision 0.5 mm pitch FPC Connector featuring 15 female contacts with a right angle orientation and bottom contact termination. Manufactured using phosphor bronze contact material with gold plating, this connector ensures high conductivity and corrosion resistance suitable for demanding industrial electronics applications.

The surface mount design allows easy integration onto PCBs while the zero insertion force (ZIF) mechanism minimizes wear and tear on flexible printed circuits (FPC). The locking mechanism provides additional security to maintain stable electrical connections under vibration or movement.

Operating temperature ranges from -25°C up to 85°C, making it suitable for extended industrial, manufacturing, laboratory, and electronic assembly environments. Rated for 500mA current and 50V voltage, this connector is ideal for signal transmission with fine pitch requirements such as LVDS and compact electronics.

This single row 15-way right angle female connector, model 5022441530, is a trusted component for engineers designing compact, reliable electronic interfaces. It supports bottom contact FPCs and offers an optimized height of 2.33mm to save board space.

The connector features a 0.5 mm pitch for fine-pitch connections. It has 15 female contacts manufactured from phosphor bronze for reliable conductivity. Designed with right angle orientation to optimize PCB layout. Bottom contact termination ensures secure connectivity and low insertion force with ZIF mechanism.

Gold-plated contacts provide corrosion resistance for high performance. Operates reliably from -25°C to 85°C suitable for industrial environments. Supports low current applications up to 500mA and voltage rating of 50V. Includes locking mechanism to secure cable connections.

Single row design with surface mount mounting type for ease of assembly.

Widely used in electronics, industrial automation, manufacturing, and laboratory equipment for interconnecting flexible printed circuits in tight spaces while ensuring durability and performance. Available for purchase with confidence as new condition with verified technical specifications. Browse more connectors and FPC components in the Electronics & Electricals category at EnvMart.
