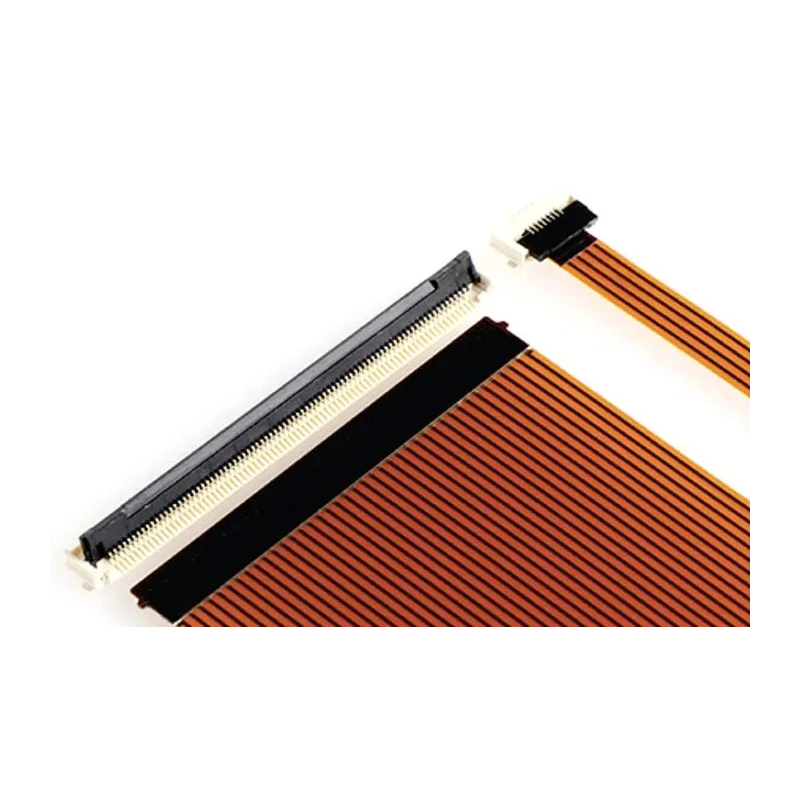

Molex 0.5 mm Pitch 11 Way Right Angle Male Easy-On FPC Connector, Solder 505110-1192

Molex 505110-1192 0.5 mm Pitch 11 Way Right Angle Male Easy-On FPC Connector, Solder is a high-performance connector designed for compact and reliable flat flexible cable (FFC) and flat printed cable (FPC) applications. This surface mount connector features double bottom phosphor bronze contacts plated with gold over nickel, providing excellent contact reliability and corrosion resistance. The low profile design with a mating height of 1.9 mm enables use in tight packaging environments.

This Easy-On series connector employs zero insertion force (ZIF) technology, allowing easy cable insertion and minimizing wear during repeated cycles. The cable ear-tab locking feature ensures proper cable seating and high retention force, which is critical for reliable electrical connections. Robust solder tabs secure the connector firmly to the PCB, offering strain relief for increased durability.

Operating voltage is rated at 50V with a maximum current of 500mA, suitable for low power electronics. The connector withstands temperatures from -40°C up to 105°C, making it suitable for demanding industrial, automotive display, audio/navigation systems, consumer electronics such as flat panel TVs, portable gaming devices, personal navigation, and data communication equipment including tablet/Notebook PCs, printers, and copiers.

The housing is made from liquid crystal polymer that provides mechanical strength and stability. Cable orientation is right angle with a single row of 11 contacts, ensuring ease of integration into various designs. This product is manufactured in Japan, ensuring quality and reliability standards are met.

Double bottom contacts ensure clean connection and excellent reliability. Cable ear-tab locking provides secure cable alignment. Compact 1.9 mm height supports tight packaging designs. Zero insertion force for easy and repeatable cable insertion.

Solder termination ensures strong PCB retention and strain relief. Gold over nickel contact plating enhances durability and conductivity. Liquid crystal polymer housing offers robust mechanical performance. Wide operating temperature range from -40°C to 105°C.

Suitable for automotive, consumer electronics, data communications, and industrial sectors. Explore the complete range of reliable FPC Connectors at EnvMart to find solutions tailored for your electronic assembly needs.
