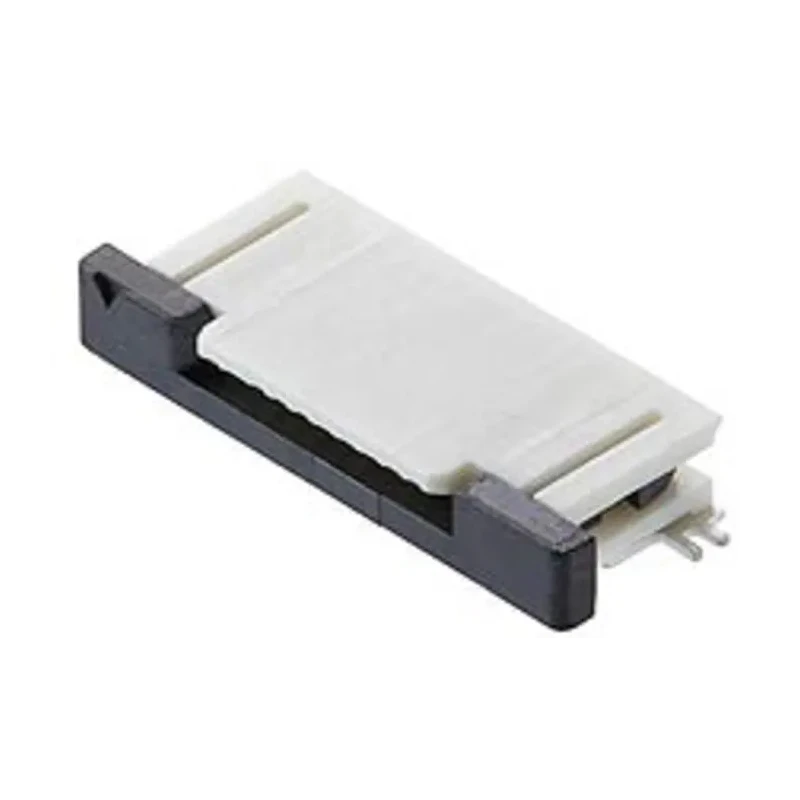

Molex 0.5 mm Pitch 15 Way Right Angle Female Easy-On FFC/FPC Connector, Surface Mount Solder Termination 50V 500mA 52745-1597

Molex 52745-1597 is a 0.5 mm pitch, 15-way right angle female FPC Connector designed for surface mounting on printed circuit boards. It employs easy-on FFC/FPC technology with solder termination, providing secure electrical connection and ease of assembly in compact electronic devices. The connector features gold plated phosphor bronze contacts with a Zero Insertion Force (ZIF) locking mechanism, supporting up to 50 volts and 500 mA current, suitable for sensitive low-power signals.

The connector's housing is made of Polyamide 4.6, offering excellent durability and mechanical strength. It is engineered to operate in wide temperature ranges from -40°C to a maximum of 85°C, making it reliable for industrial and commercial environments. The single-row, right angle design with top contact position enables flexible PCB layout and effective space utilization.

This connector is widely applied in electronic components, power connectors, industrial automation, and precision electronic equipment. The high barrier packaging and Japanese manufacturing origin ensure consistent quality and compliance with industrial standards. Packaging contains a reel assembly suitable for automated PCB assembly processes.

Constructed with phosphor bronze contacts plated with gold for high reliability. Features a Zero Insertion Force (ZIF) mechanism for easy cable insertion. Rated for 50 V voltage and 500 mA current to suit low power applications.

Operates reliably between -40°C and 85°C for industrial environments. Housing made from durable Polyamide 4.6 material ensuring mechanical strength. Right angle orientation with top contact position for PCB design flexibility.

Equipped with a locking mechanism to secure cable connections firmly. Single row connector design facilitating compact PCB layouts. Manufactured in Japan ensuring high quality and standards compliance. Ideal for electronics, industrial, and laboratory assemblies requiring miniature FPC connections.
