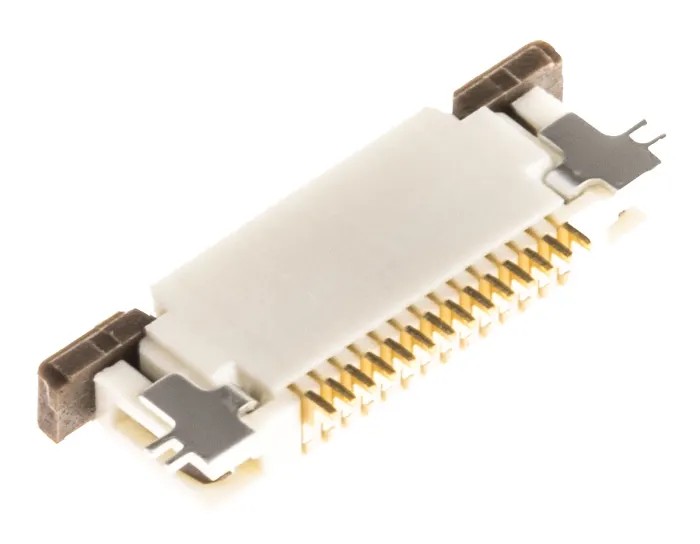

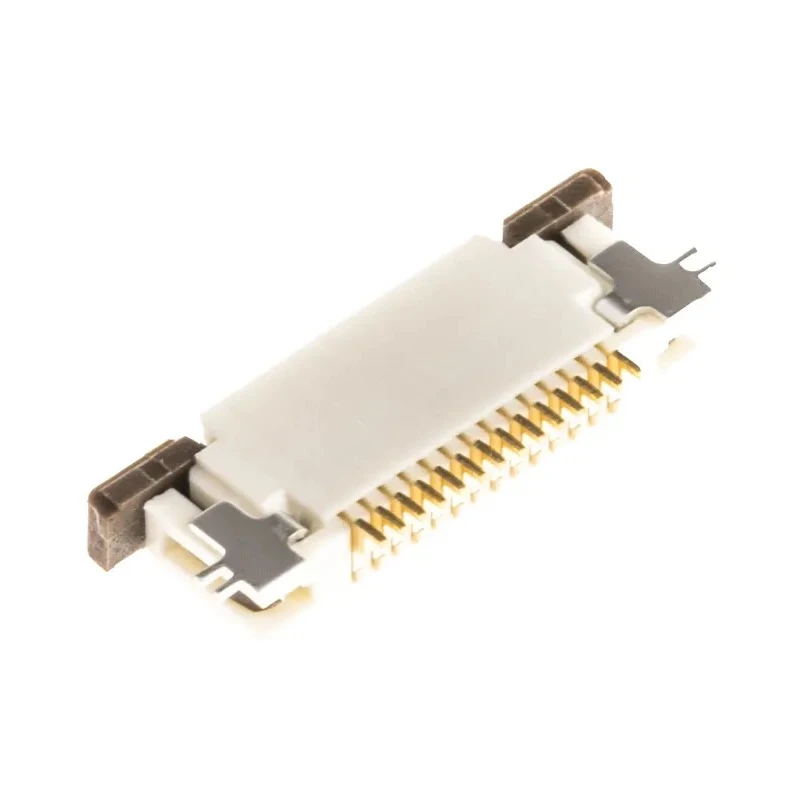

Molex 0.5 mm Pitch 14 Way Right Angle Female FPC Connector ZIF Bottom Contact 52746-1471
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | 52746 |
| Termination Type | ZIF Bottom Contact |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 14 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Features Zero Insertion Force (ZIF) bottom contact for minimal wear during repeated cycles.
- Designed with a slide-type actuator for easy insertion and secure connection of flexible printed circuits.
- Utilizes phosphor bronze contacts with gold over nickel plating for reliable conductivity and corrosion resistance.
- Constructed with nylon housing and a locking mechanism to ensure stability and retention.
- Rated for 50V and 500mA with operation temperatures ranging from -20°C to 85°C.
- Right-angle orientation with surface mount technology for space-constrained PCB applications.
- Ideal for automotive, consumer electronics, medical devices, and telecommunication equipment.
- Includes secure solder tabs for strain relief and PCB retention.
Product Description
Molex 52746-1471 0.5 mm Pitch 14 Way Right Angle Female FPC Connector is a high-quality zero insertion force (ZIF) bottom contact connector designed for use in compact electronic assemblies. With a fine 0.5 mm pitch and 14 contacts, this surface-mount connector features a right-angle orientation suitable for tight packaging applications.
The connector includes phosphor bronze contacts plated with gold over nickel, ensuring excellent electrical performance and resistance to oxidation. It uses a slide-type hinged actuator that facilitates easy insertion and reliable connection of flexible printed circuits (FPC), while its movable contacts maintain secure retention even when cables are pulled. The nylon housing and locking mechanism provide durable mechanical support and stability on the PCB.
Rated for 50 volts and 500 milliamps, it can operate safely in environments ranging from -20°C to 85°C. Its features such as solder tabs increase strain relief and robustness for solder joints.
This FPC connector is widely used in automotive navigation systems, consumer electronics like smartphones and tablets, medical monitoring devices, digital cameras, and telecommunications equipment, where high-density, reliable signal interconnections are essential.
Zero Insertion Force (ZIF) bottom contact minimizes wear and ensures reliable connections. Slide-type actuator allows easy, secure FPC insertion. Phosphor bronze contacts with gold plating provide corrosion resistance and stable conductivity.
Nylon housing with locking mechanism secures connector on PCB. Suitable for high-density electronic applications with 0.5 mm pitch and 14 contacts. Operating temperature range from -20°C to 85°C for diverse environments.
Solder tabs provide strain relief and retention for SMT mounting. Right-angle surface mount design optimizes PCB space usage.
This connector series facilitates reliable, space-efficient design solutions for industrial, automotive, consumer electronics, medical, and telecommunication applications. Explore more in our FPC Connector category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 50 volts.
It has a current rating of 500 milliamps.
The operating temperature range is from -20°C to 85°C.
The housing is made of nylon, and the contacts are phosphor bronze with gold over nickel plating.
This connector features 14 contacts.
It utilizes a ZIF (Zero Insertion Force) bottom contact termination type.
The pitch size of this model is 0.5 mm.
It has a right-angle orientation, suitable for space-constrained applications.
This unit is designed for surface mount technology (SMT).
It is ideal for automotive, consumer electronics, medical devices, and telecommunications equipment.
Yes, it includes secure solder tabs for strain relief and PCB retention.
The contact gender is female.
