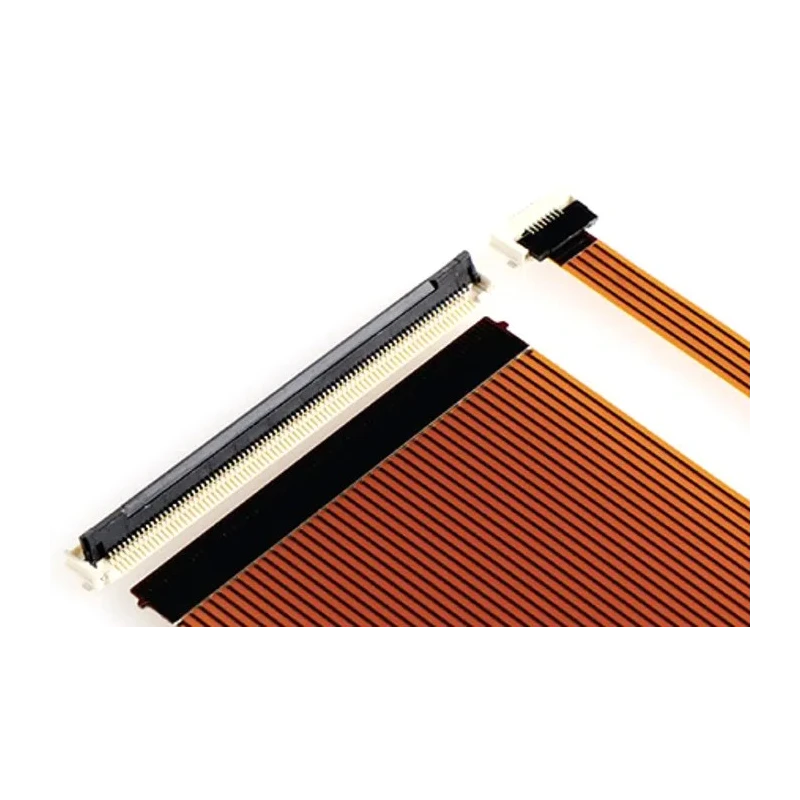

Molex 0.5 mm Pitch 12 Way Right Angle Male FPC Connector Solder 505110-1292

Molex 505110-1292 is a 0.5 mm pitch 12 way right angle male FPC Connector designed for high-reliability electronic applications. It features robust double bottom contacts for a clean mating interface and excellent contact reliability, implemented with gold over nickel plating for durability. The connector incorporates a cable ear-tab locking mechanism, ensuring proper cable alignment and strong retention force during operation. Its compact, low-profile design has a mating height of just 1.9 mm, suitable for space-constrained PCB assemblies.

The connector supports a current rating of 500 mA and voltage up to 50 V, with operation guaranteed from -40°C to 105°C. It employs a Zero Insertion Force (ZIF) design that facilitates easy cable insertion and allows repeat cycling with minimal contact wear. Robust solder tabs secure the component to the PCB and provide strain relief for solder joints. Additionally, the housing features a vacuum pick and place area on the top side to improve assembly efficiency and reduce manufacturing costs.

This Molex Easy-On 505110 series connector is constructed with phosphor bronze contacts housed in a liquid crystal polymer body, ensuring mechanical stability and electrical isolation. It is designed for varied industrial and commercial uses, including automotive displays, audio and navigation systems, flat panel TVs, portable gaming devices, personal navigation equipment, optical disk drives, notebook and tablet PCs, printers, and copiers. Its compact form factor and locking features make it ideal for tight packaging applications.

Double bottom contacts provide clean mating and high reliability. Cable ear-tab locking feature ensures correct cable seating and retention. Low 1.9 mm mating height for compact electronic assemblies. Zero insertion force allows easy insertion and longevity.

Robust solder tabs enhance PCB retention and strain relief. Vacuum pick and place area for streamlined PCB assembly. Suitable for automotive, consumer electronics, and data communications. Phosphor bronze contacts with gold/nickel plating for durability.

Housing made from stable liquid crystal polymer material. Operates reliably from -40°C to 105°C at 50 V and 500 mA. Explore more Molex connectors and electronics components at EnvMart for your industrial and commercial needs.
