Molex 0.5 mm Pitch 11 Way Right Angle Male FPC Connector, Solder 505110-1192

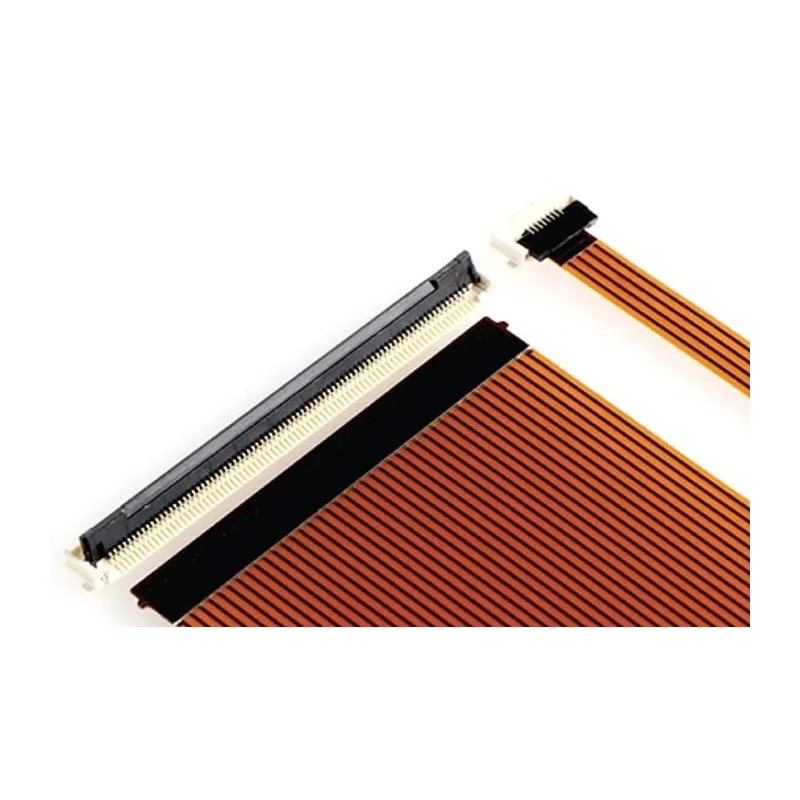

Molex 505110-1192 is a 0.5 mm pitch 11 way right angle male FPC connector featuring solder termination and double bottom contact design for enhanced connectivity and reliability. This connector has a surface mount type with a compact low profile design and a mating height of only 1.9 mm, making it ideal for space-constrained electronic applications.

The double bottom contacts provide two contacts per circuit ensuring a clean mating interface by removing dust and contaminants, which significantly increases contact reliability. Its cable ear-tab locking feature guarantees proper cable seating, alignment, and high retention force while providing easy actuation.

With Zero Insertion Force (ZIF) technology, this FPC connector provides easy cable insertion and supports repeat cycling with minimal wear, improving assembly longevity. The robust solder tabs secure PCB retention and add strain relief to solder joints, enhancing mechanical stability during operation.

The housing, molded from Liquid Crystal Polymer, offers excellent mechanical strength and operating temperature resilience, withstanding from -40°C to 105°C. Contacts are manufactured from phosphor bronze and plated with gold over nickel for optimal conductivity and durability. Operating voltage is rated at 50 V and the current rating is 500 mA, suitable for low-power automotive display audio, navigation systems, flat panel TVs, portable gaming devices, tablet and notebook PCs, printers, and optical disk drives.

Double bottom contacts ensure a clean interface and reliability. Cable ear-tab locking for cable alignment and retention. Compact, low profile design with 1.9 mm mating height. Zero Insertion Force for easy cable insertion and minimum wear.

Solder tabs provide secure PCB retention and strain relief. Vacuum pick and place area facilitates assembly efficiency. Phosphor bronze contacts with gold over nickel plating. Liquid Crystal Polymer housing with excellent thermal stability.

Operating temperature range from -40°C to 105°C. Rated for 50 V voltage and 500 mA current applications.

This Molex FPC Connector series is widely used in industrial, automotive, consumer electronics, manufacturing, and data communication sectors for reliable and compact board connection solutions. Explore more Molex connectors in the Electronics Components category on EnvMart for comprehensive solutions.
