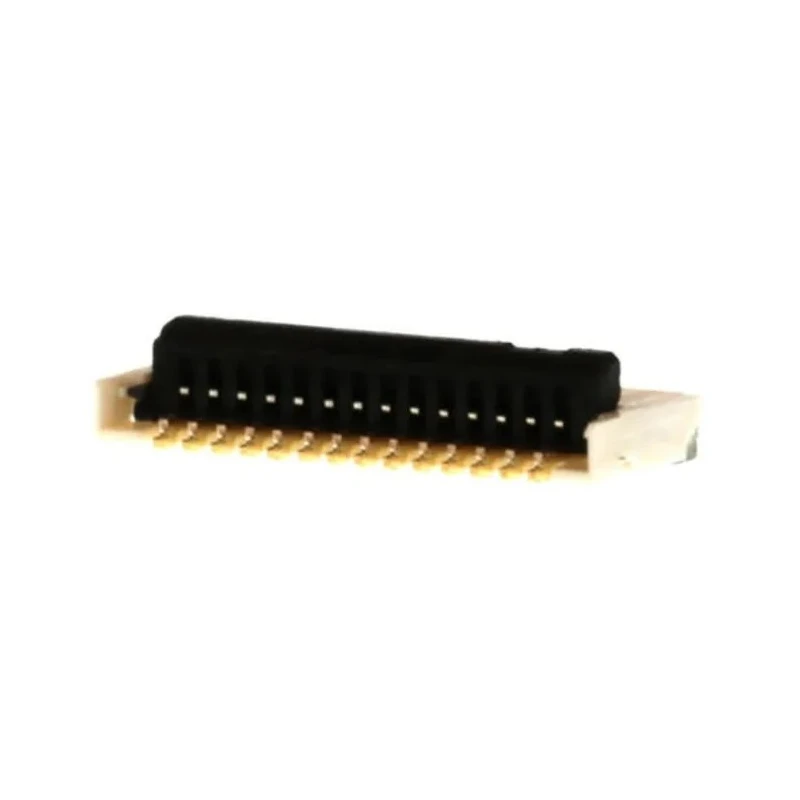

Molex 0.5 mm Pitch 14 Way Right Angle Female FPC Connector, Solder 503480-1400

Molex 503480-1400 is a 0.5 mm pitch, 14 way right angle female FPC connector with solder termination designed for surface mount applications. This high-performance electronic component facilitates compact circuit designs with reliable electrical connections and durability.

The connector uses phosphor bronze contacts plated with gold over nickel to enhance electrical conductivity while protecting against corrosion. Its dual contact position and right angle orientation allow effective connection of flexible printed circuits in restricted space layouts. The locking mechanism ensures secure and stable mating.

Operating reliably between -40°C to 85°C, the connector supports continuous current up to 500 mA per contact, making it suitable for various industrial and commercial uses. Its housing, crafted from liquid crystal polymer material, further enhances heat tolerance and mechanical robustness during assembly and operation.

This FPC connector is commonly applied in consumer electronics, medical devices requiring precise electrical contacts, automotive systems with stringent space constraints, and automation equipment needing compact, reliable connections. It supports lead-free soldering processes with a maximum assembly temperature of 250°C and withstands up to 10 mating cycles to ensure durability.

The connector features 14 contacts arranged with a 0.5 mm pitch for compact electronic designs. Constructed with phosphor bronze contacts plated with gold over nickel to ensure excellent conductivity and durability. Right angle dual contact design enables flexible circuit connection with a locking mechanism for secure engagement.

Supports a current rating of 500 mA per contact and operates within a temperature range of -40°C to 85°C. Housing made of liquid crystal polymer provides high temperature resistance and mechanical strength. Suitable for use in consumer electronics, automotive applications, medical equipment, and automation devices.

Designed to endure up to 10 mating cycles for reliable repeated use. Explore EnvMart’s extensive range of electronic components and FPC Connectors for professional and industrial applications.
