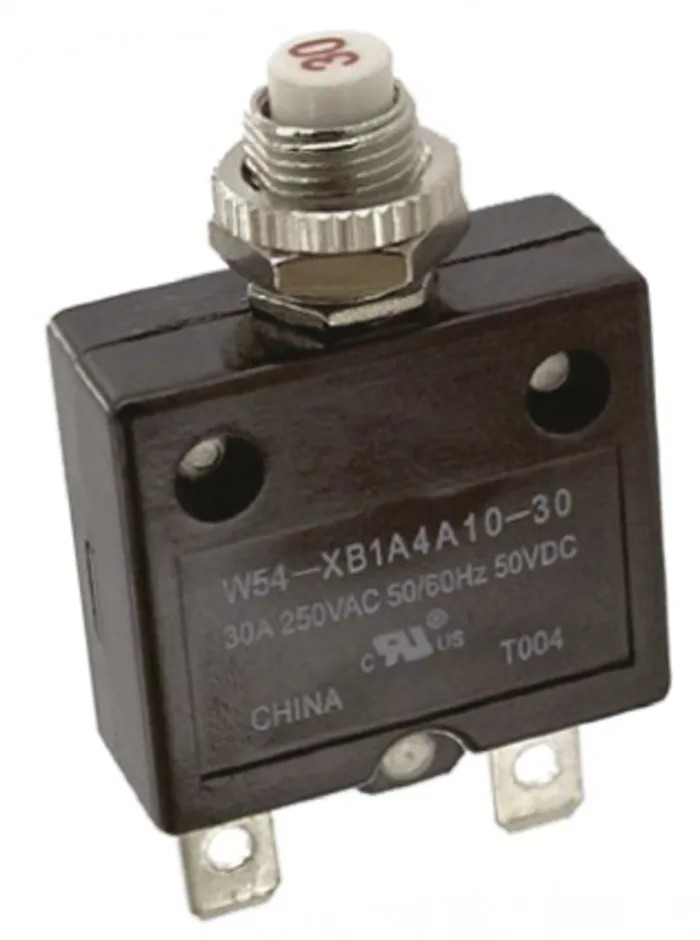

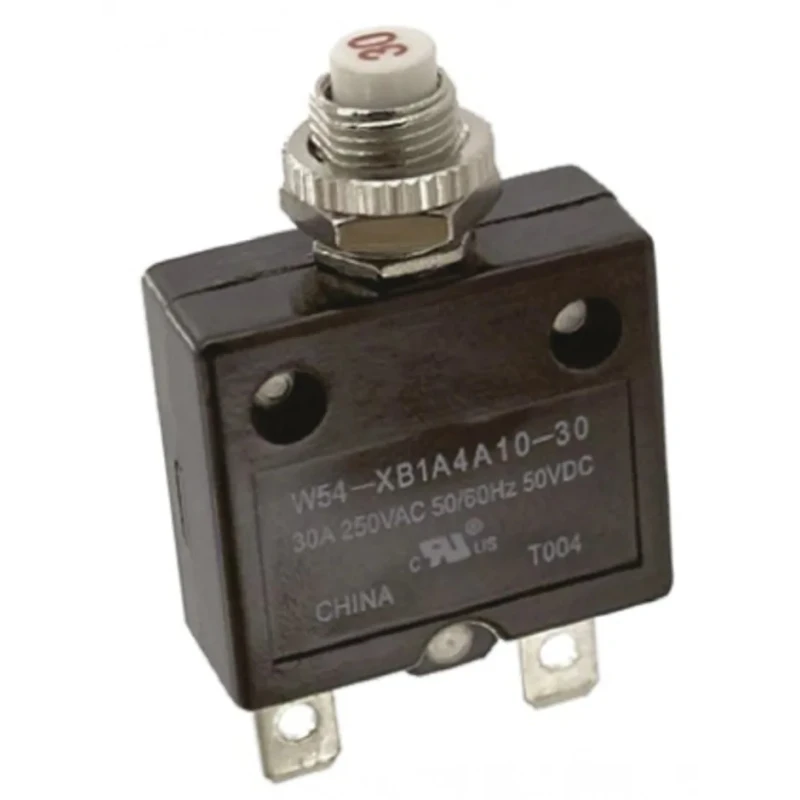

TE Connectivity W58 Thermal Circuit Breaker 30A Current Rating 1-Pole Direct Mount W54-XB1A4A10-30

Name: TE Connectivity W58 Thermal Circuit Breaker 30A Current Rating 1-Pole Direct Mount W54-XB1A4A10-30
Brand: TE Connectivity
SKU: 131353
Price: 6.32 USD
Availability: InStock



Category Thermal Circuit Breaker Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Model	W54-XB1A4A10-30
Width	14.6mm
Mount Type	Direct
Current Rating	30A
Series	W58
Terminal type	Screw
Breaking Capacity	1000A
Number of Poles	1
Standards/Approvals	CE, RoHS
Rated AC Voltage	250V ac
Rated DC Voltage	50V dc
Tripping Characteristics	Trips at 135% of rating within one hour at +25°C
Tripping Mechanism	Thermal
Reset Actuator Type	Toggle Switch
Mount Hole Size	18.8 mm
Break Time	Medium

Key Features

Thermal circuit breaker with a 30 ampere current rating.
Features a single pole configuration suitable for direct mounting.
Equipped with a toggle switch reset actuator for easy operation.
Trips at 135% of rating within one hour at ambient +25 degrees Celsius.
Rated for 250V AC and 50V DC voltage applications.
Breaking capacity of 1000A ensures reliable circuit protection.
Mount hole size of 18.8 mm and width of 14.6 mm for compact installation.
Screw type terminals for secure electrical connection.

Product Description

TE Connectivity W54-XB1A4A10-30 thermal circuit breaker is a new, reliable electrical safety device with a 30A current rating and 1-pole configuration designed for direct mount installation. It operates efficiently with thermal tripping mechanism, ensuring circuit protection in industrial, HVAC, manufacturing, and automation applications.

The circuit breaker uses a toggle switch reset actuator that offers user-friendly reset capability after trip events. Designed to trip at 135% of rated current within one hour at a temperature of 25°C, it provides precise protection against overcurrent conditions.

Rated at 250V AC and 50V DC, its breaking capacity of 1000A supports robust fault interruption in various electrical networks. The breaker features screw terminals for secure wiring and a mount hole size of 18.8 mm with a compact width of 14.6 mm, allowing easy installation in panel boards and circuit breaker assemblies.

Compliant with CE and RoHS directives, this thermal circuit breaker meets stringent safety and environmental standards. Thermal tripping mechanism ensures reliable overcurrent protection. Toggle switch actuator for manual reset post trip.

Compact direct mount design for versatile panel integration. High breaking capacity suitable for industrial and commercial circuits. Compliant with international safety directives CE and RoHS. Screw terminal type facilitates strong electrical connections.

Rated for AC and DC voltage applications enhancing flexibility. Designed for moderate break time ensuring balance between speed and stability.

This product finds application in electrical, automation, HVAC, manufacturing, and water treatment industries where reliable circuit protection is critical. Choosing TE Connectivity W54-XB1A4A10-30 thermal circuit breaker helps ensure secure, compliant, and durable overcurrent protection tailored for demanding industrial environments.
