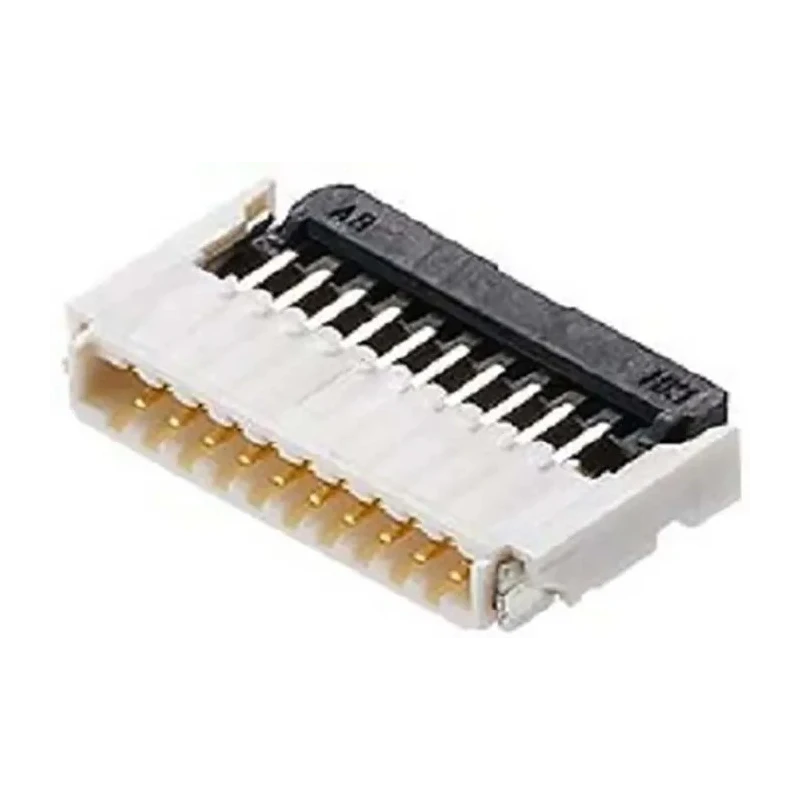

Molex 0.5 mm Pitch 12 Way Right Angle Female Easy-On FPC Connector with Top & Bottom Contact 5034801200
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | 503480 |
| Termination Type | Top & Bottom Contact |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Position | Dual |
Key Features
- Features 12 contacts with gold over nickel plating for enhanced conductivity.
- Made with phosphor bronze contact material for good electrical performance.
- Supports current rating of 500mA and voltage rating of 50V.
- Right angle orientation with locking mechanism for secure connections.
- Housing made from Liquid Crystal Polymer offering durability over wide temperature range.
- Suitable operating temperature ranges from -40°C to 85°C.
- Designed as an easy-on FFC/FPC type connector with 1 row of contacts.
- Ideal for electronic industrial applications requiring compact, robust FPC connections.
Product Description
Molex 5034801200 is a high-quality 0.5 mm pitch 12 way right angle female FPC connector featuring a dual top & bottom contact termination style, designed specifically for surface mount applications. This Easy-On FFC/FPC connector series provides reliable electrical connections with a compact profile suited for tight spaces.
Constructed with phosphor bronze contacts plated with gold over nickel, the connector ensures excellent conductivity and corrosion resistance. It supports a current rating of 500mA and is rated for voltages up to 50V. The right angle orientation facilitates PCB design flexibility and improved routing options.
The housing is made from Liquid Crystal Polymer, providing mechanical strength and thermal stability across a broad operating temperature range from -40°C to 85°C. The connector incorporates a locking mechanism to secure the cable firmly, minimizing disconnections during mechanical vibrations or shocks.
With a single row of 12 contacts, this connector is ideal for various electronic manufacturing, industrial, and consumer device applications where space and connection reliability are critical. Its top & bottom contact design improves contact reliability by providing dual engagement.
12 contacts gold over nickel plated for improved electrical performance. Phosphor bronze contact material for durability and conductivity. Voltage rated at 50V, supporting up to 500mA current. Right angle female connector with locking mechanism for secure fitting.
Liquid Crystal Polymer housing ensuring mechanical and thermal robustness. Operating temperature range from -40°C up to 85°C. Easy-On FFC/FPC connector designed for surface mount use on PCBs.
This Molex FPC Connector meets the demands of electrical and electronic component assemblies including power connectors, PCB mounting designs, and compact device manufacturing. It is widely used in industrial, laboratory, and commercial electronic applications where reliable board-to-flex cables connections are required.
Browse our extensive collection of electronic connectors and components at EnvMart for compatible products and detailed specifications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a voltage of 50V.
This model supports a current rating of 500mA.
The contacts are made from phosphor bronze and are plated with gold over nickel, while the housing is constructed from Liquid Crystal Polymer.
The operating temperature ranges from -40°C to 85°C.
It features 12 contacts arranged in a single row.
It utilizes a top & bottom contact termination style.
This connector has a right angle orientation.
Yes, it includes a locking mechanism to secure the cable and minimize disconnections.
It is designed for surface mount applications.
The connector is manufactured in India.
The pitch of this connector is 0.5 mm.
It is suitable for various electronic manufacturing, industrial, and consumer device applications that require reliable board-to-flex cable connections.
