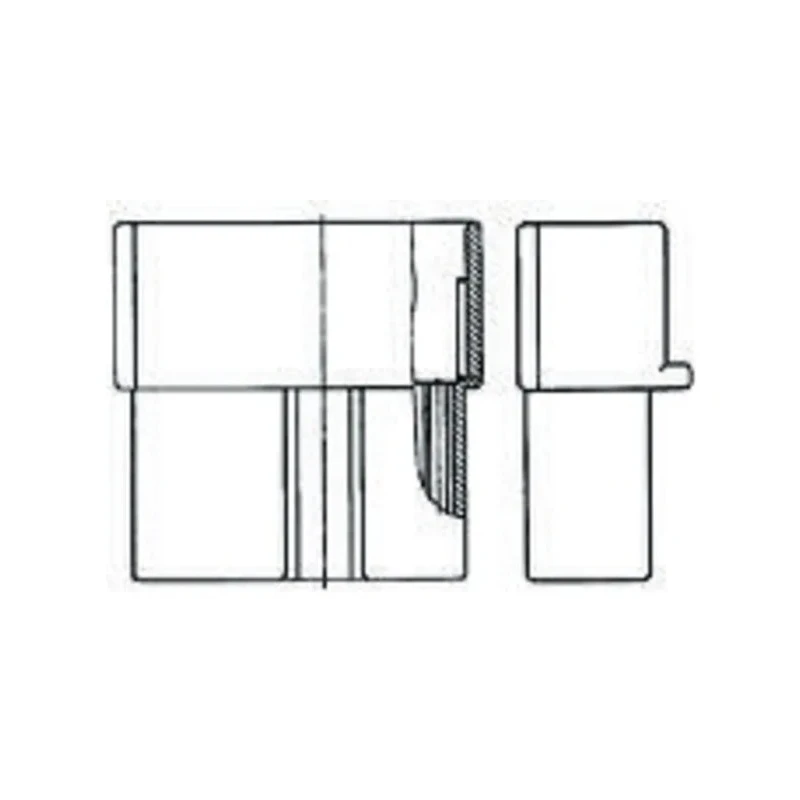

TE Connectivity Multi-Interlock Mark II Female Connector Housing 7 mm Pitch 5 Way 2 Row Straight 172504-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 23.6mm |
| Model | 172504-1 |
| Width | 17.9mm |
| Housing Material | Nylon |
| Series | Multi-Interlock Mark II |
| Number of Rows | 2 |
| Pitch | 7mm |
| For Use With | Wire-to-Wire Multiple Interlock Connector |
| Number of Contacts | 5 |
| Connector Gender | Female |
Key Features
- Connector housing made from durable nylon material.
- Designed for Multi-Interlock Mark II series connectors.
- Pitch spacing of 7 millimeters ensures compatibility with standard contacts.
- 5 way with 2 row configuration for multi-contact applications.
- Straight orientation supports efficient wire-to-wire connection layouts.
- Compact dimensions with length 23.6 mm and width 17.9 mm.
- Female gender connector housing for receptacle applications.
- Suitable for industrial and electronic component assembly use.
Product Description
TE Connectivity 172504-1 is a female connector housing for Multi-Interlock Mark II series, featuring a 7 mm pitch, 5 contacts arranged in 2 rows, and straight orientation. Made of high-quality nylon, this connector housing ensures reliable wire-to-wire connection for various electronic and industrial applications.
Manufactured to provide durability and precision, the housing has compact dimensions of 23.6 mm length and 17.9 mm width. Its female connector design is ideal for use as a receptacle component in multi-contact assemblies.
The Multi-Interlock Mark II series enhances connection security, making this housing suitable for power connectors, PCB connectors, and wire housing applications. The 7 mm pitch ensures compatibility with standard contact spacing, while the 5-way 2-row configuration accommodates versatile wiring needs.
Although it does not carry specific certifications or standards approvals, this connector housing benefits from TE Connectivity's expertise in connector systems and materials. The nylon construction provides insulation and mechanical stability during installation and operation.
Connector housing made from durable nylon material. Designed for Multi-Interlock Mark II series connectors. Pitch spacing of 7 millimeters ensures compatibility with standard contacts. 5 way with 2 row configuration for multi-contact applications.
Straight orientation supports efficient wire-to-wire connection layouts. Compact dimensions with length 23.6 mm and width 17.9 mm. Female gender connector housing for receptacle applications. Suitable for industrial and electronic component assembly use.
No specific approvals or standards certifications applied. Ideal for PCB connector and wire housing requirements.
This Connector Housing is suited for industrial, electronics manufacturing, and assembly operations requiring reliable wire-to-wire connections. TE Connectivity provides extensive documentation and 3D models for design integration. Explore the category for compatible connectors and accessories to complete your assembly.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 7 mm, ensuring compatibility with standard contacts.
This model supports 5 contacts arranged in a 2-row configuration.
The connector housing has a length of 23.6 mm and a width of 17.9 mm.
It is made from durable nylon material, providing insulation and mechanical stability.
This housing features a female connector design, suitable for receptacle applications.
The orientation of this connector housing is straight, supporting efficient wire-to-wire connections.
Yes, it is suitable for industrial and electronic component assembly use, particularly in multi-contact applications.
This connector housing belongs to the Multi-Interlock Mark II series.
It is designed for use with wire-to-wire multiple interlock connectors, making it versatile for various wiring needs.
No, this connector housing does not carry specific certifications or standards approvals.
The country of origin for this connector housing is India.
This connector housing is ideal for power connectors, PCB connectors, and wire housing applications.
