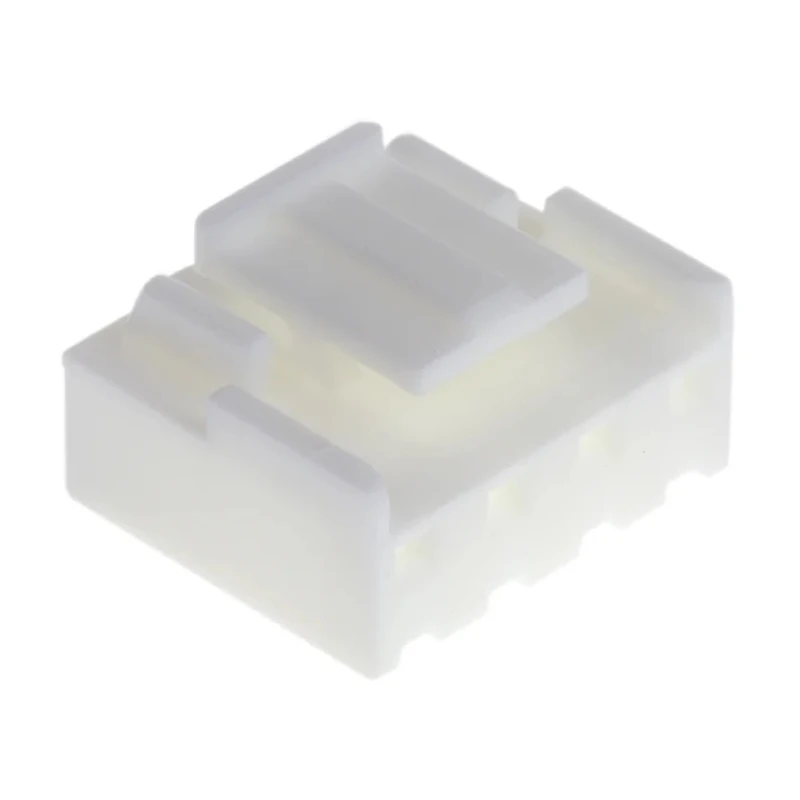

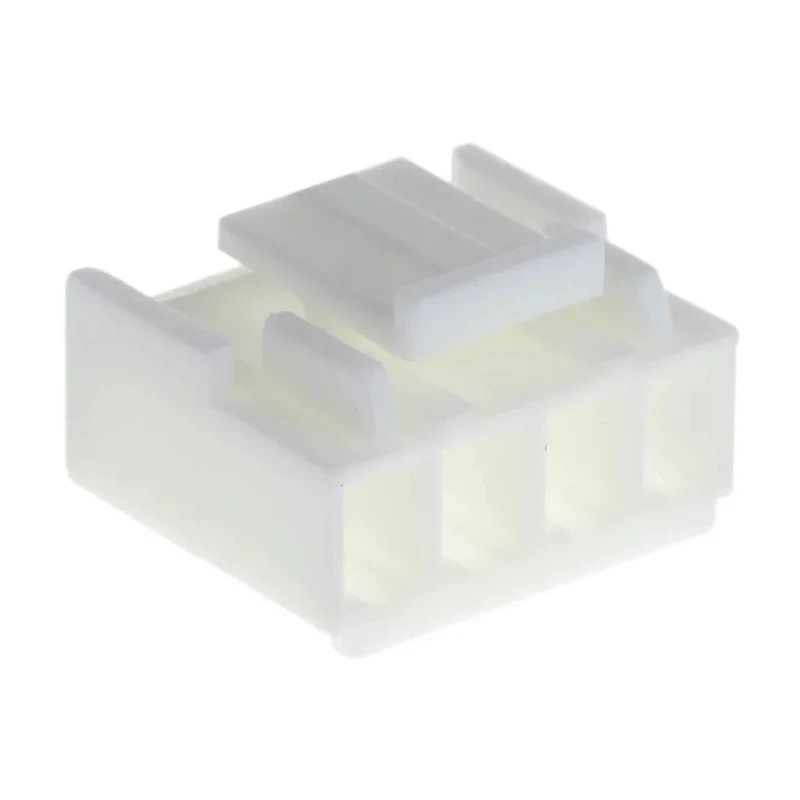

TE Connectivity Economy Power Male Connector Housing 3.96 mm Pitch 4 Way 1 Row Straight 1-1123722-4
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 15.78mm |
| Width | 10.5mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Economy Power |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| For Use With | Wire-to-Board Economy Power Connector |
| Number of Contacts | 4 |
| Connector Gender | Male |
Key Features
- Constructed from durable nylon material providing robust housing protection.
- Designed with an audible locking latch for secure mating confirmation.
- Asymmetrical terminal design prevents mis-mating and ensures correct polarization.
- Compatible with wire sizes ranging from 16 to 22 AWG for versatile connection options.
- Supports operating temperatures from -25°C to 105°C for reliable industrial performance.
- Locking capabilities prevent unmating during shock and vibration environments.
- Applicable in HVAC, commercial equipment, lighting, household appliances, and industrial machinery.
Product Description
TE Connectivity 1-1123722-4 Economy Power Male Connector Housing is a 3.96 mm pitch connector designed with 4 contacts arranged in a single row and a straight orientation. Made from high-quality nylon, it features an audible 'click' locking latch that provides tactile feedback ensuring a secure connection. This housing accommodates wire sizes from 16 to 22 AWG and is engineered with asymmetrical terminals to prevent misalignment during mating.
The Economy Power series connector offers high durability with a temperature rating between -25°C and 105°C and a voltage rating ranging from 250 VAC to 600 VAC. It supports currents up to 11 A, making it suitable for various power circuit applications requiring reliable, high-current carrying capacity.
This connector housing is ideal for diverse industrial uses such as HVAC systems, commercial and building equipment, vending machines, arcade machines, lighting, industrial machinery, and household appliances. Its locking capabilities and terminal position assurance devices help prevent unmating caused by shocks or vibrations, providing robust performance in demanding environments.
Durable nylon housing construction ensures long-lasting reliability. Audible locking latch confirms secure connection every time. Polarisation and asymmetrical terminals prevent incorrect mating. Compatible with 16-22 AWG wire sizes for flexible application.
Wide temperature operating range from -25°C to 105°C. Voltage rating 250 VAC to 600 VAC with 11 A current capacity. Locking features protect against unmating in shock/vibration environments. Suitable for HVAC, commercial, lighting, industrial and household equipment.
Set contains one male Connector Housing compatible with Economy Power connectors, designed for wire-to-board cable mounting. Explore the Electronics Components category on EnvMart for compatible connectors and accessories from TE Connectivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 3.96 mm.
It supports a maximum current capacity of 11 A.
The operating temperature range is from -25°C to 105°C.
This housing is compatible with wire sizes ranging from 16 to 22 AWG.
The connector housing is constructed from nylon material.
This model has 4 contacts arranged in a single row.
It supports cable mounting for wire-to-board connections.
It features an audible locking latch that provides tactile feedback, ensuring a secure connection.
It is suitable for applications in HVAC systems, commercial equipment, lighting, household appliances, and industrial machinery.
The orientation of this connector housing is straight.
The country of origin for this connector housing is China.
The voltage rating ranges from 250 VAC to 600 VAC.
