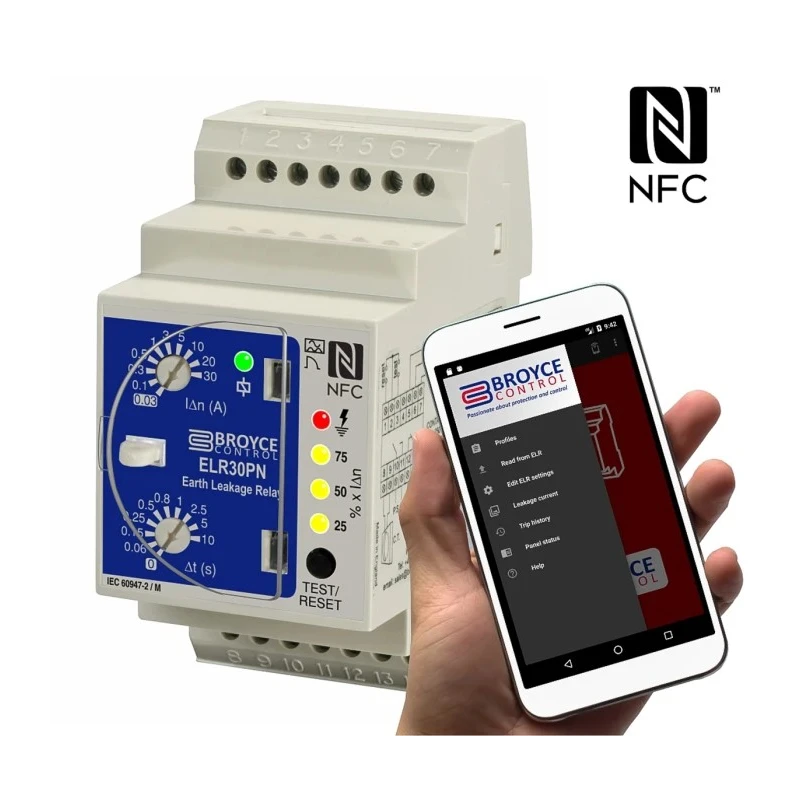

Broyce Control Earth Leakage Relay, 50 to 60 Hz Frequency, 7.5 mA to 30 A Leakage, SPDT SPNO Output ELR30PN 24-230V AC/DC

Broyce Control ELR30PN 24-230V AC/DC Earth Leakage Relay is a high-quality, Type A protective device designed for sensitive earth fault detection, operating in a frequency range of 50 to 60 Hz. It effectively monitors leakage currents from 7.5 mA up to 30 A, offering enhanced safety in electrical installations.

This relay features dual relay outputs, including SPDT and SPNO configurations, providing flexible control and signaling capabilities for automation and protection systems. Its compact form factor with dimensions 44mm x 44mm x 85mm and DIN rail mount type facilitates convenient installation in electrical panels.

The device incorporates a remote test function, enabling operators to perform operational checks without disassembling equipment, thereby increasing maintenance efficiency and reliability. With screw terminal connections, the relay ensures secure and robust wiring.

Operating reliably within an ambient temperature range of -20°C to 60°C, the ELR30PN model consumes just 5W power, underscoring its energy efficiency. Input voltage flexibility supports both 24V and 230V AC/DC sources, making it adaptable in various industrial and commercial electrical environments.

Certified to comply with rigorous international norms such as IEC 61543, IEC 60947-2, IEC 62020, and RoHS, this earth leakage relay meets high safety and quality standards. Its IP20 protection class safeguards against finger access and solid foreign objects, suitable for protected indoor electrical assemblies.

Equipped with SPDT and SPNO relay outputs suited for automation control. Type A classification provides protection against AC and pulsed DC leakage currents. Multi-voltage compatibility with 24-230V AC/DC input supports diverse applications.

DIN rail mounting simplifies panel integration and wiring. Low power consumption of 5W ensures economical operation. Remote test function facilitates easy maintenance and operational checks. Screw terminals deliver secure installation and connection integrity.

Operates in temperature range from -20°C to 60°C for versatile environments. Compact size with 44mm width and length, and 85mm height. Conforms to multiple international electrical and safety standards.

This earth leakage relay is ideal for industrial automation, electrical panel protection, and safety applications requiring sensitive leakage detection to prevent electrical hazards and enhance system reliability. Select Broyce Control products at EnvMart for trusted quality and compliance.
