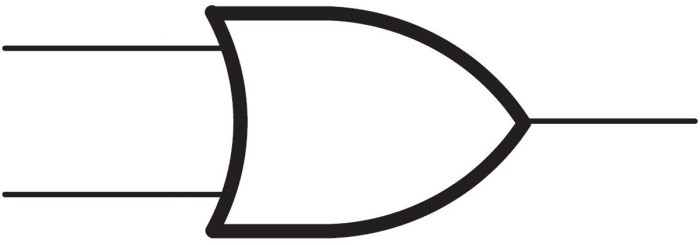

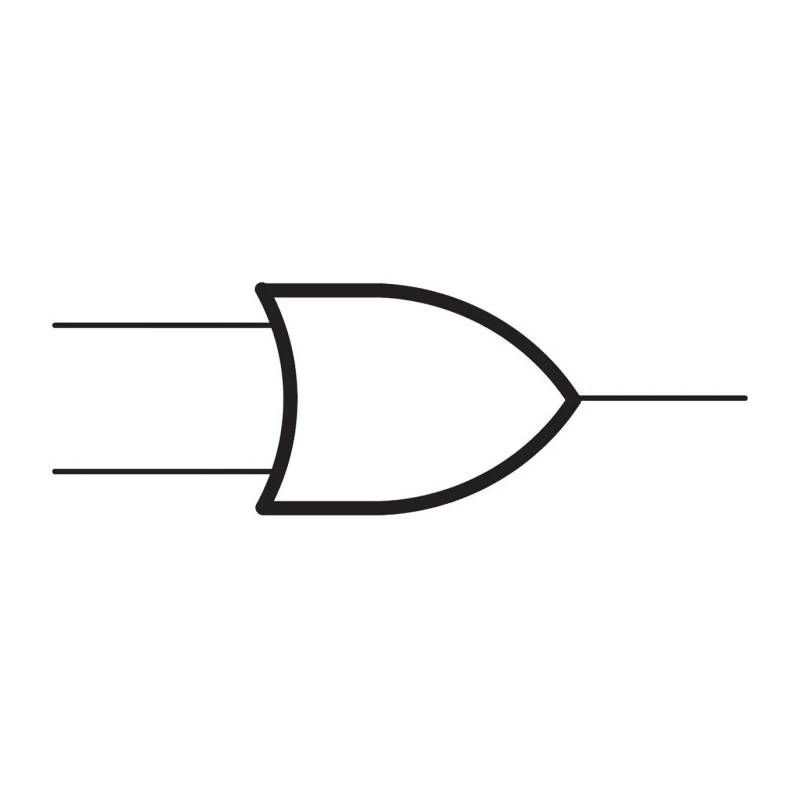

DiodesZetex 1 2-Input OR Logic Gate, 5-Pin SOT-25, Surface Mount, CMOS, AHC Logic Family 74AHC1G32W5-7

DiodesZetex 74AHC1G32W5-7 1 2-Input OR Logic Gate is designed as a high-speed single gate device intended for surface mounting on printed circuit boards. Featuring AHC logic family technology with CMOS input types, this gate offers efficient operation within a voltage range of 2 to 5.5 volts, suitable for a wide variety of electronic applications.

Its compact SOT-25 package with a height of 1.3mm and length of 3.1mm makes it ideal for space-constrained electronic assemblies. The gate has one element with two inputs and is designed to achieve a maximum propagation delay time of 9.5 nanoseconds at a specified load capacitance.

This device delivers push-pull output configuration, capable of sourcing and sinking output currents up to 8mA, making it suitable for various digital logic circuits. Operating temperature from -40°C to 125°C allows use in demanding industrial, automotive (non-automotive standard though), and consumer electronics environments.

Manufactured in China, the 74AHC1G32W5-7 logic gate is RoHS compliant, supporting environmental regulations related to hazardous substances. This logic gate incorporates one logic element with two inputs per gate. Surface mount package SOT-25 with a total of 5 pins.

Push-pull output design enabling balanced high and low output currents. Maximum propagation delay of 9.5 nanoseconds ensuring high-speed logical operations. Wide operating temperature range from -40°C to 125°C ensuring reliability in diverse environments.

This product is suitable for use in electronics manufacturing, industrial automation systems, consumer electronic devices, and any application requiring compact and efficient logic gate components. It provides reliable and consistent electrical performance for integrated circuit designs.
