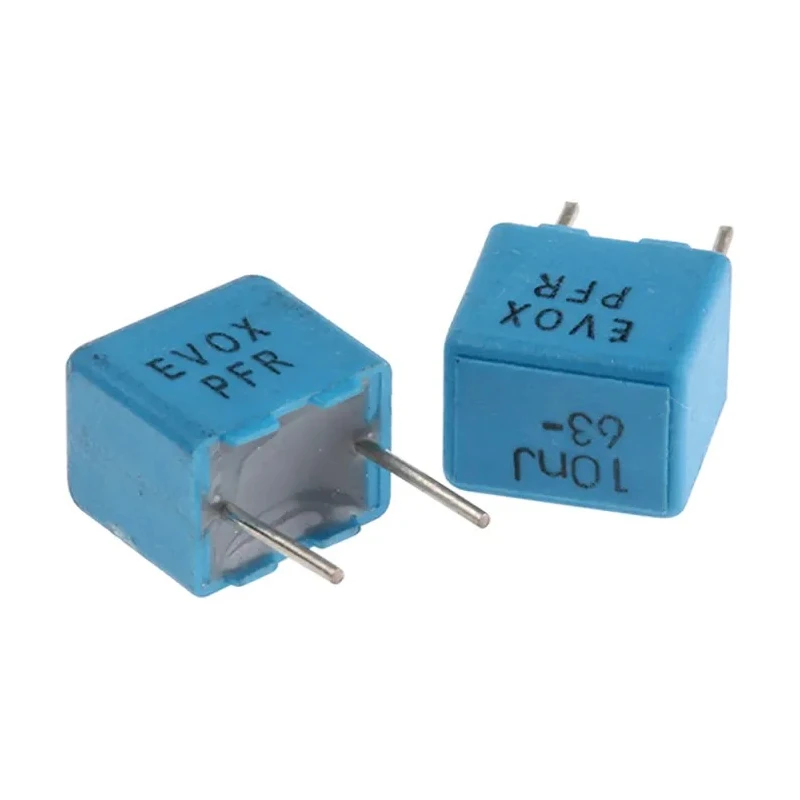

KEMET Film Capacitor 10 nF, 63 V DC, ±5% Tolerance, 5 mm Lead Pitch, Through Hole PFR510

The KEMET PFR5103J63J12L4BULK Film Capacitor is a premium electronic component engineered to deliver high reliability and efficiency in signal and power applications. Featuring a 10 nF nominal capacitance and a rated voltage of 63 V DC (40 V AC), this capacitor is ideal for precision filtering, coupling, decoupling, or bypass operations in a range of electronic circuits.

Designed with a ±5% tolerance, the component delivers consistently accurate performance, making it suitable for demanding industrial environments where stable capacitance values are essential. The through hole mounting format with a standard 5 mm lead pitch allows for robust connection to printed circuit boards, supporting both manual and automated assembly processes.

Offers 10 nF capacitance for reliable filtering and timing circuits in industrial and commercial electronics. Rated at 63 V DC and 40 V AC, providing versatility for various power and signal circuit requirements. ±5% tolerance allows for precision and stability, supporting critical performance applications.

Through hole, radial lead configuration with 5 mm pitch for secure, durable mounting. Encapsulated in a flame-retardant UL 94V-0 plastic case for added safety and durability in high-demand areas. Wide operational range from -55°C to 100°C, enabling use in environments exposed to extreme temperatures.

High insulation resistance of 100,000 MΩ ensures dependable isolation and longevity. Standards compliant: IEC 60068-1, RoHS, and UL, meeting industrial safety and environmental requirements. Ideal for use as a pulse, snubber, or timing capacitor in high-frequency, high-stability, and low loss circuits.

Measuring at 7.2 mm in length, 5.5 mm in width, and 7 mm in height, with 0.5 mm diameter leads and a pin count of two, this compact capacitor is well-suited for space-constrained designs. The lead length of 4 mm further supports convenient board insertion.

Industrial applications include power supplies, signal processing, HVAC control boards, renewable energy inverters, and automated manufacturing controls where reliability and stability are paramount. Laboratory and instrumentation engineers also benefit from its low-loss, high-frequency performance and strong thermal robustness.

This KEMET film capacitor is part of the reputable PFR510 series, manufactured with adherence to global quality standards. Its packaging in bulk bags makes it efficient for production lines and assembly workstations.
