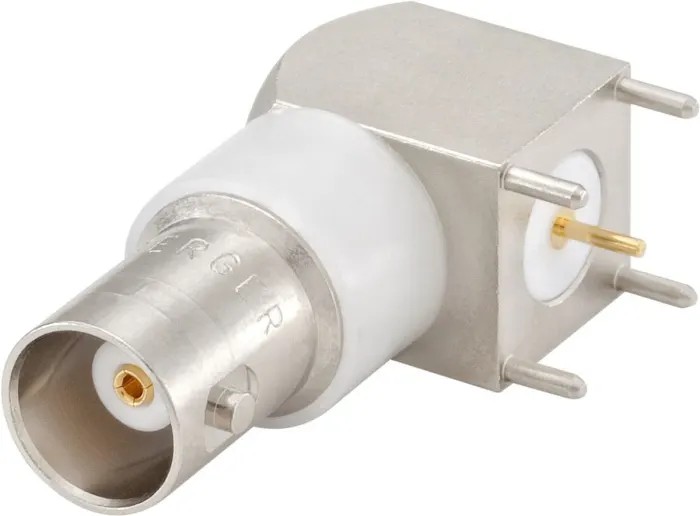

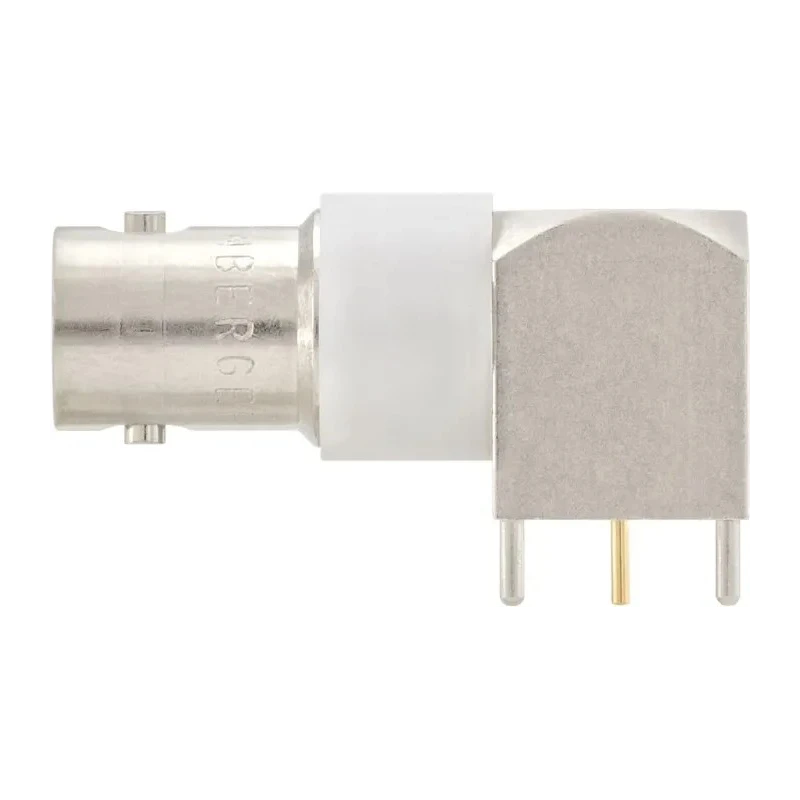

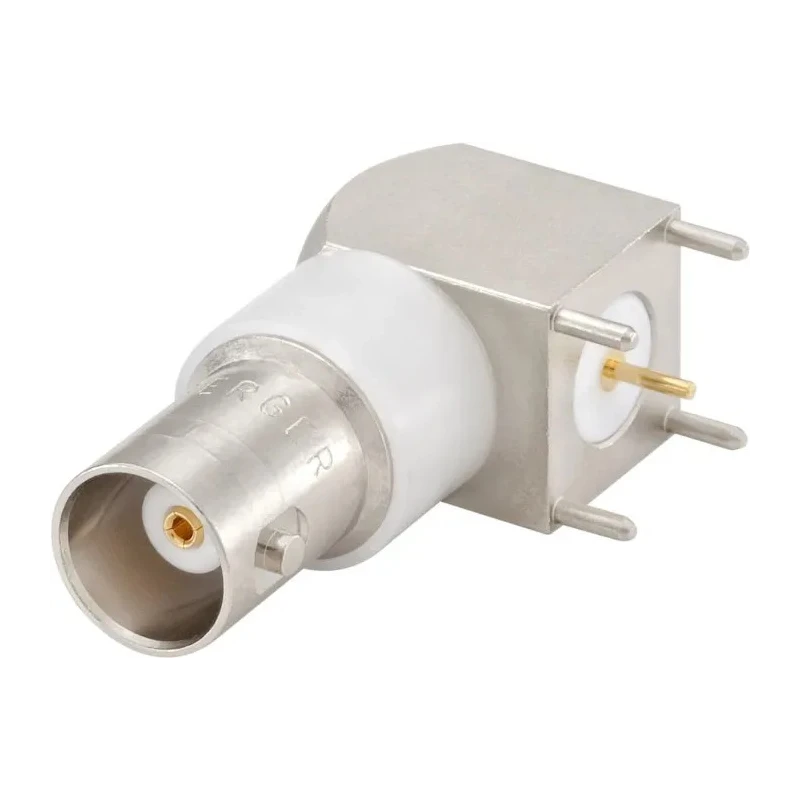

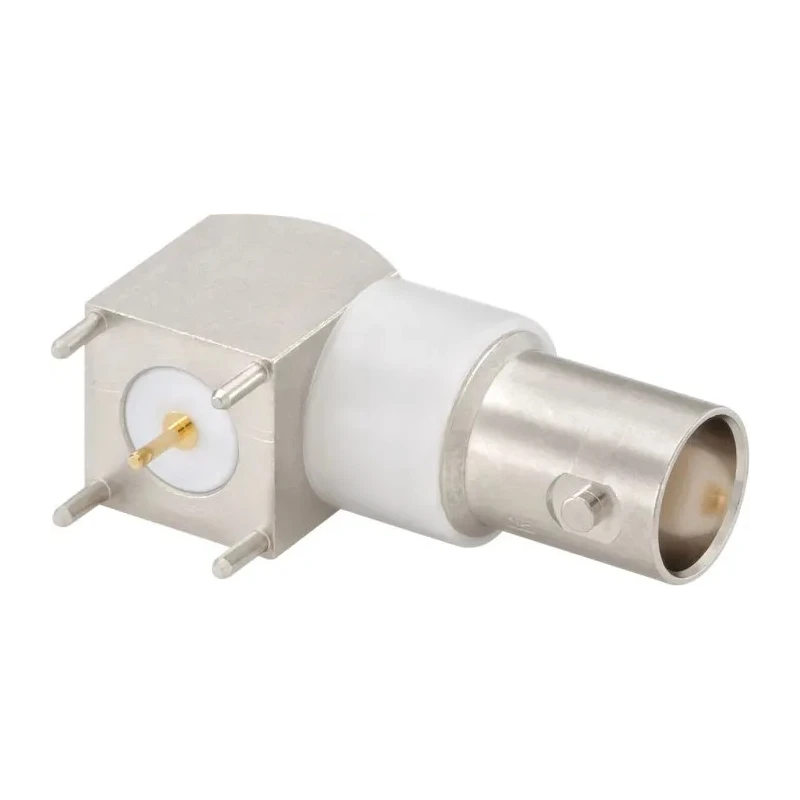

Rosenberger 51 Series Coaxial Connector PCB Female BNC 50 Ω Right Angle Body Through Hole 51K204-400A5
Specifications
| Country of Origin | Hungary |
|---|---|
| Size | Standard |
| Brand | Rosenberger |
| Orientation | Right Angle |
| Model | 51K204-400A5 |
| Mount Type | PCB |
| Operating Frequency | 10GHz |
| Contact Material | Brass |
| Series | 51 |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- This connector features a right angle body with a through hole termination type for secure PCB mounting.
- It has a standard size with nickel plating on the brass body to ensure durability and corrosion resistance.
- The bayonet coupling mechanism allows quick connect and disconnect with a quarter turn.
- The gold-plated female contact provides excellent conductivity and low signal loss with 50 ohm impedance.
- Designed to operate reliably between -55°C to 155°C in demanding industrial and electronic applications.
- Suitable for telecom, automotive, medical equipment, base stations, antennas, cable modems, and instrumentation.
- The product is manufactured in Hungary to high quality standards without specific approvals listed.
Product Description
Rosenberger 51K204-400A5 is a high-quality 51 Series Coaxial Connector featuring a female BNC interface designed for PCB mounting. This coaxial connector operates at an impedance of 50 Ω and supports operating frequencies up to 10 GHz, making it ideal for high-frequency applications.
The connector body is right angled and finished with nickel plating over brass for enhanced durability and resistance to environmental factors. The contact is gold plated brass, ensuring low-loss signal transmission and excellent conductivity. The termination type is through hole, providing secure and reliable mechanical connection to printed circuit boards.
This BNC connector employs a bayonet coupling mechanism allowing rapid quarter-turn mating for ease of connection and disconnection. It complies with interface standards IEC 61169-8, MIL-PRF-39012, and CECC 22120, although no formal approvals are noted.
The connector is built to maintain performance over a wide temperature range from -55°C to 155°C, supporting usage in harsh industrial environments. Ideal applications include telecom systems, automotive electronics, medical equipment, base stations, antennas, cable modem installations, and instrumentation devices.
This connector features a right angle body with a through hole termination type for secure PCB mounting. It has a nickel-plated brass body for enhanced durability and corrosion resistance. The gold-plated female contact ensures superior electrical performance.
The bayonet coupling provides easy and fast connection with a quarter turn. Designed for continuous operation from -55°C up to 155°C. Operates at 50 Ω impedance with frequency range DC to 10 GHz. Suitable for industrial, laboratory, construction, and telecommunication uses.
The Rosenberger 51 Series coaxial connectors are trusted components in demanding electronic systems requiring reliable, low-loss signal transfer. This product brings Rosenberger's longstanding expertise and quality manufacturing from Hungary to your applications.
Explore more in our Electronics Components Coaxial Connector category for additional Rosenberger connectors and adaptors to fit various specifications and uses.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this model is 10 GHz, making it suitable for high-frequency applications.
This connector operates at an impedance of 50 Ω, which is standard for many RF applications.
It features a through hole termination type, providing a secure mechanical connection to printed circuit boards.
The contact is made of gold-plated brass, while the body is nickel-plated brass, enhancing durability and corrosion resistance.
The bayonet coupling mechanism allows for quick connect and disconnect with a quarter turn, facilitating ease of use.
This connector features a right angle body orientation, which is useful for space-constrained applications on PCBs.
It is suitable for telecom systems, automotive electronics, medical equipment, base stations, antennas, cable modems, and instrumentation devices.
This model is a standard size connector designed for PCB mounting, ensuring secure installation.
It complies with interface standards IEC 61169-8, MIL-PRF-39012, and CECC 22120, although no formal approvals are noted.
This connector is manufactured in Hungary, adhering to high quality standards.
The contact gender of this connector is female, designed to connect with male counterparts in coaxial applications.
