Vero Technologies Double-Sided FR4 Matrix Board Epoxy Glass Fabric Laminate 1.6mm Thickness 1mm Holes 2.54mm Pitch 222-2991

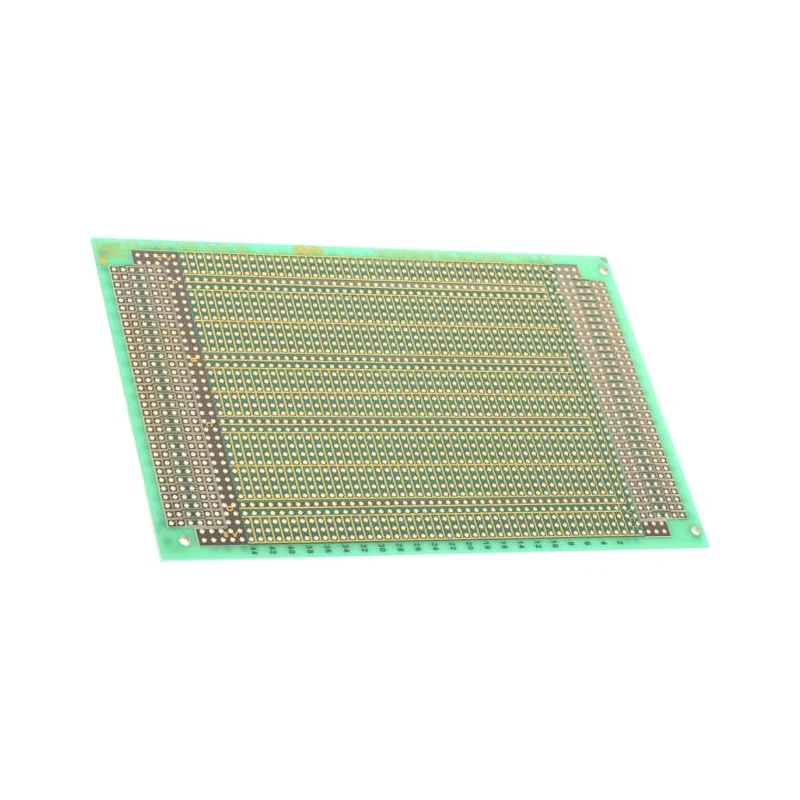

Vero Technologies 222-2991 is a double-sided FR4 matrix board designed with 1mm plated through holes spaced on a 2.54mm pitch on a 160mm by 100mm epoxy glass fabric laminate. The board thickness of 1.6mm provides rigid support for complex electronic circuit prototyping, particularly for microprocessor applications requiring high-density layouts and reliable screening.

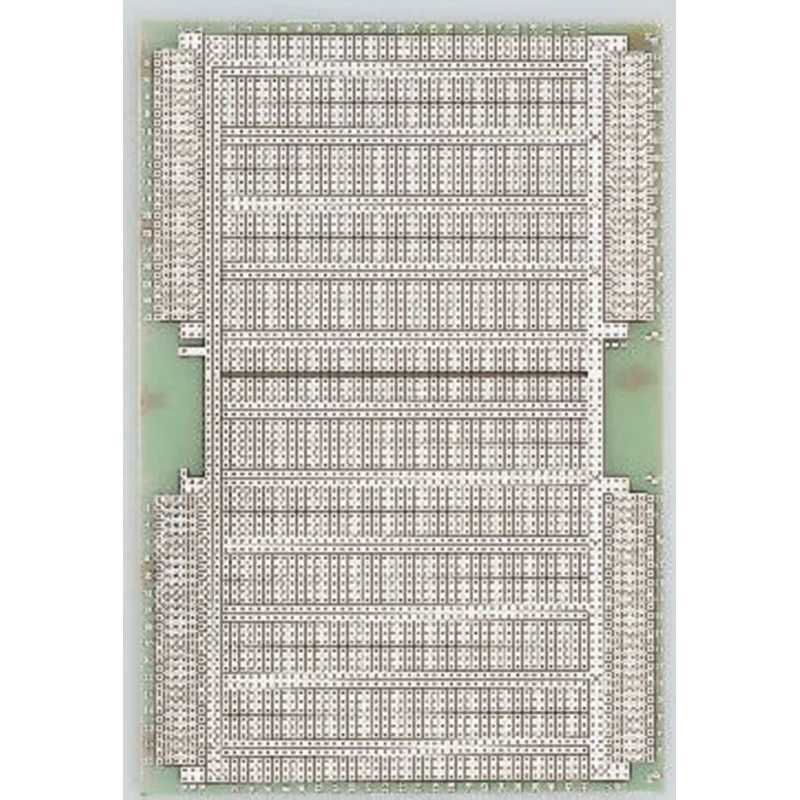

This matrix board features a colander ground plane on the component side that helps dissipate switching spikes, enhancing glitch-free, high-speed circuit operation. The ground plane is solder resist coated and screen printed in yellow except for the 0V rail regions, allowing easy through connection aligned with wiring side rails.

The plated through holes link the top and bottom pads directly, eliminating the need for linking pins and resulting in mechanically strong solder joints. This design greatly improves connection reliability, which is critical in environments with potential vibration.

Designed for compatibility, the board supports fitting of 64/96-way DIN 41612 indirect edge connectors at either end and is suitable for KM6-II eurocard sub-rack systems. The copper thickness is 35μm, supporting excellent conductivity and durability.

Manufactured under RoHS compliance and produced in the United Kingdom, this Matrix Board offers high quality, reliability, and environmentally conscious construction. It is ideal for industrial, laboratory, and electronic prototyping applications requiring precise and durable circuit boards.

The board has two sides with corresponding wiring for flexible circuit design. Epoxy glass fabric laminate provides excellent electrical insulation and mechanical strength. Features plated through holes of 1mm diameter on a standard 2.54mm pitch matrix.

Contains provisions for VCC rails and buses, configurable for individual application use. Compatible with a range of DIN 41612 connectors and eurocard systems. Explore more professional electronic prototyping products within EnvMart's Electronics Components category for precise and reliable circuit board solutions.
