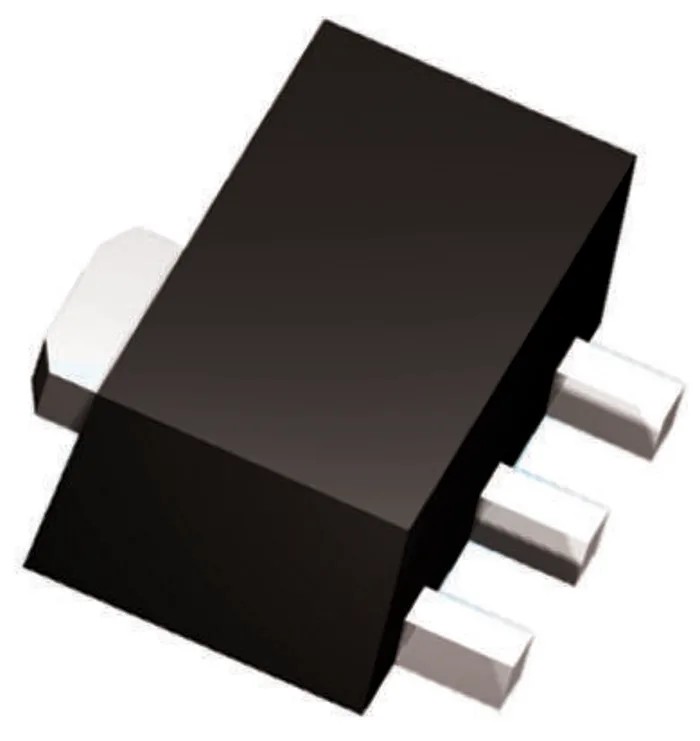

DiodesZetex 1 A NPN Bipolar Transistor, 40 V, Surface Mount SOT-89 Package FCX491ATA

DiodesZetex FCX491ATA is a general purpose NPN bipolar transistor designed for reliable operation in a variety of electronic and industrial applications. It supports a maximum collector current of 1 ampere and a collector-emitter voltage rating of 40 volts, making it well suited for moderate power switching and amplification tasks.

The device comes in a compact 3-pin SOT-89 surface mount package, promoting ease of installation and efficient use of PCB space. The transistor exhibits a minimum DC current gain (hFE) of 35, facilitating effective amplification and switching performance.

This transistor is capable of dissipating 1 watt of power, which is adequate for low power electronic designs. It operates reliably over an extended temperature range of -65°C to 150°C, suitable for demanding industrial and automotive environments. Additionally, it complies with the automotive AEC-Q101 standard, ensuring quality and durability for vehicle electronics.

Featuring a maximum transition frequency of 150 MHz, the FCX491ATA transistor enables high-frequency switching roles in communication and signal processing circuits. Physical dimensions are 4.6 mm in length, 4.25 mm in width, and 1.6 mm in height, making it compact enough for dense PCB layouts.

Supports maximum DC collector current of 1 ampere. Rated for maximum collector-emitter voltage of 40 volts. 3-pin SOT-89 surface mount package. NPN transistor polarity with a minimum current gain of 35. Power dissipation up to 1 watt.

Operating temperature range from -65°C to 150°C. Maximum transition frequency of 150 MHz. Meets automotive standard AEC-Q101. Compact 4.6 mm x 4.25 mm x 1.6 mm dimensions. Designed for single transistor configurations.

This transistor is ideal for industrial, automotive, and general electronic applications requiring reliable switching and amplification. Browse the EnvMart selection for high quality semiconductor components including Bipolar Transistors from top manufacturers like DiodesZetex.
