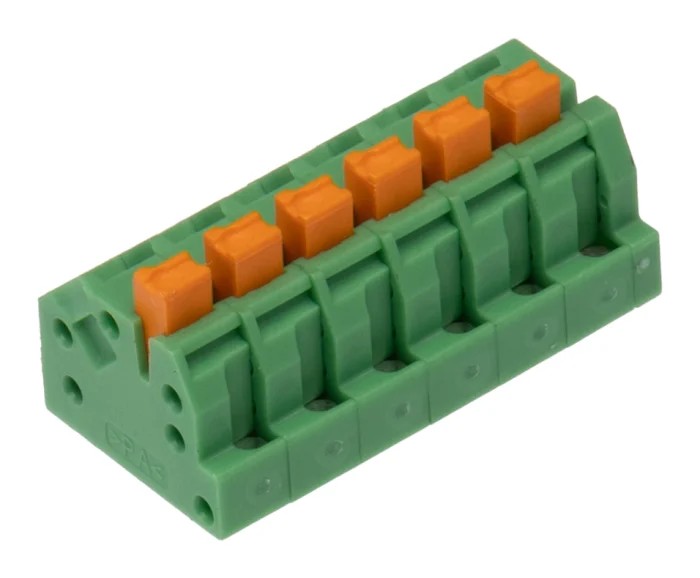

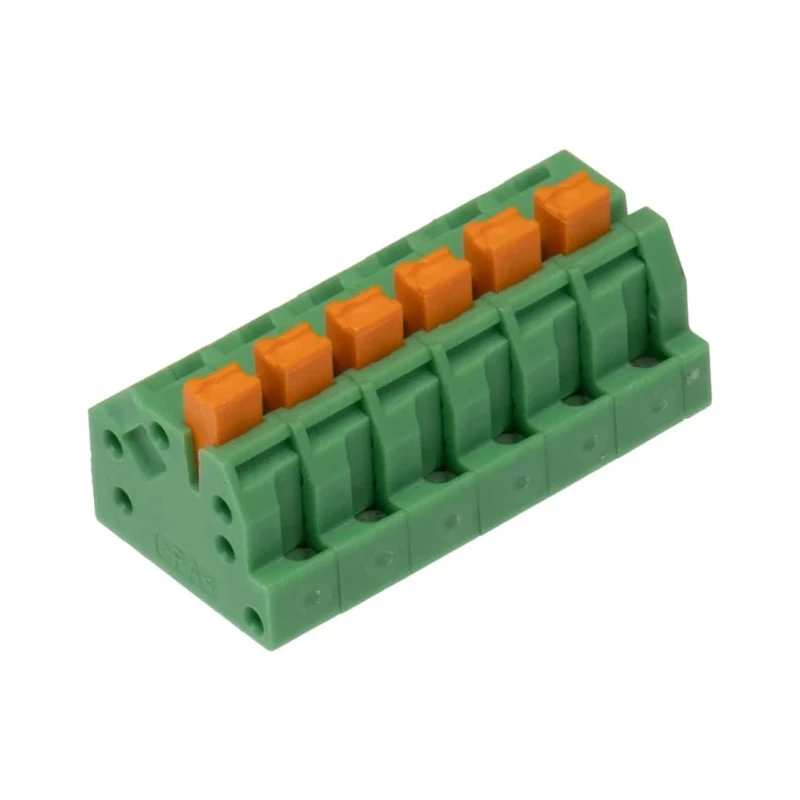

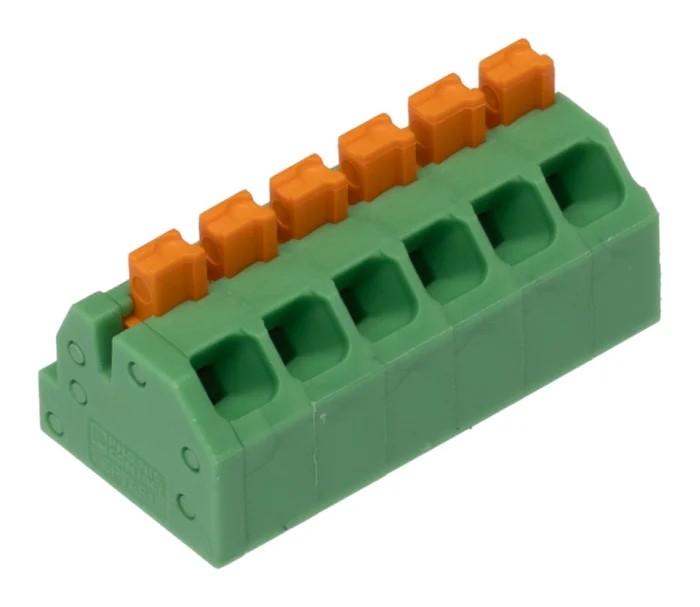

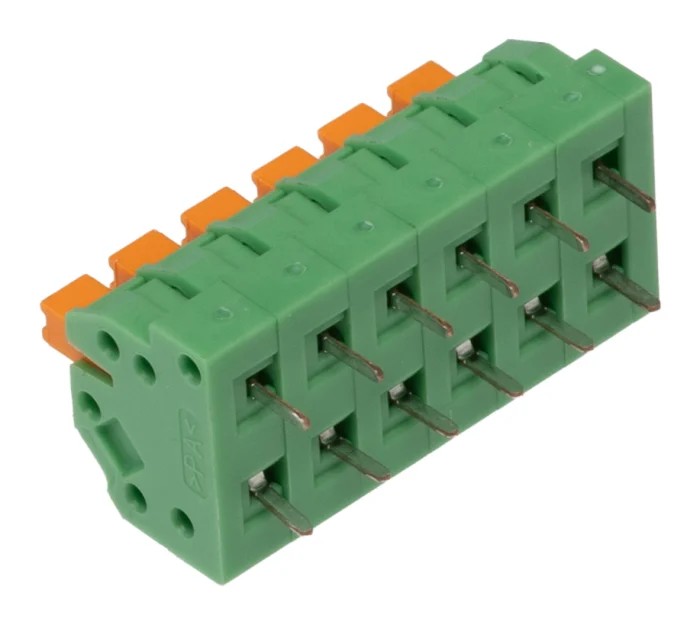

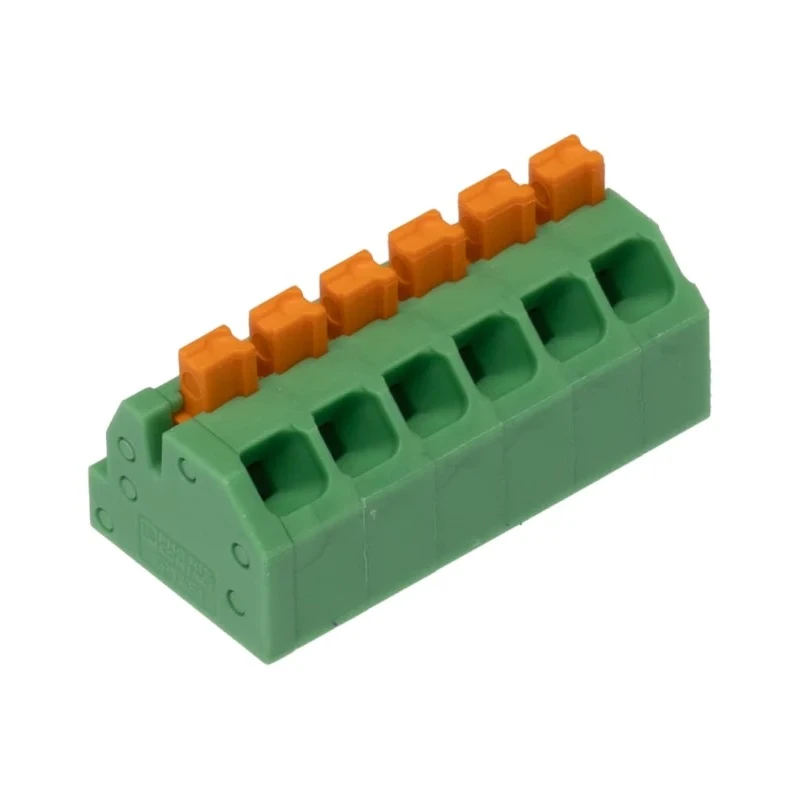

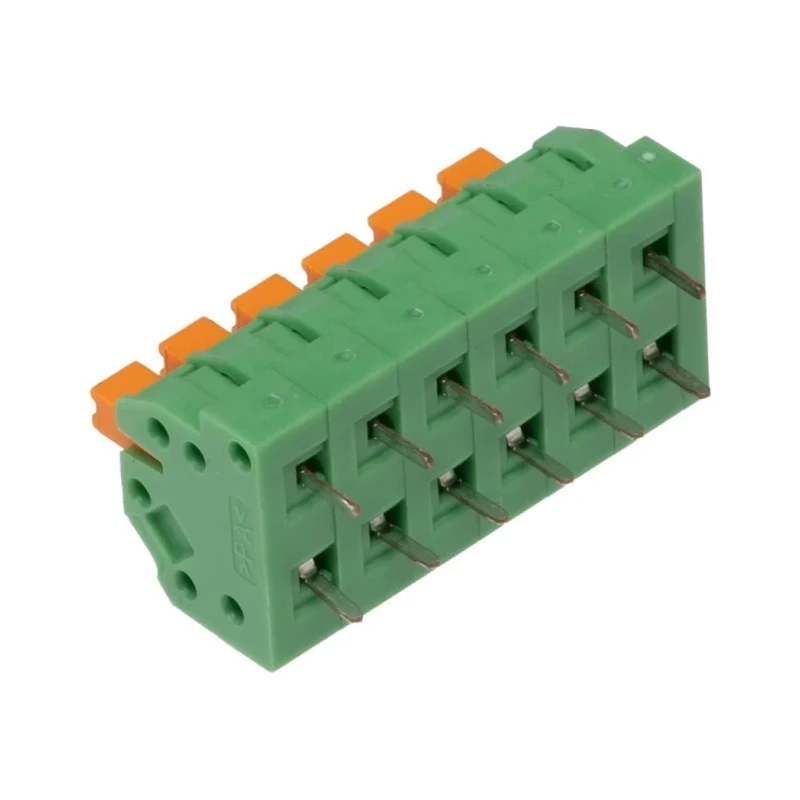

Phoenix Contact Angled Wave Soldering Mount PCB Terminal Block, 6 Contacts, 3.5 mm Pitch, 16A, 160V, Polyamide 1862084

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Angled Wave Soldering Mount PCB Terminal Block, 6 Contacts, 3.5 mm Pitch, 16A, 160V, Polyamide 1862084

Name: Phoenix Contact Angled Wave Soldering Mount PCB Terminal Block, 6 Contacts, 3.5 mm Pitch, 16A, 160V, Polyamide 1862084
Brand: PHOENIX CONTACT
SKU: 214620
Price: 2.53 USD
Availability: InStock



Category PCB Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	160V
Brand	Phoenix Contact
Orientation	Angled
Current	16A
Model	1862084
Mount Type	Wave Soldering Mount
Housing Material	Polyamide
Series	SPTAF 1/ 6-3.5-EL
Number of Rows	1
Pitch	3.5mm
Standards/Approvals	cULus Recognised, EU RoHS
Number of Contacts	6

Key Features

Push-in spring connection saves time and eliminates the need for tools.
Defined contact force ensures long-term connection stability.
Finger-operated release button allows user-friendly operation.
Compact size ideal for space-constrained electronic applications.
Integrated test option allows for quick and easy electrical testing.
Angled orientation optimizes connection direction for installation convenience.
Suitable for solid and flexible conductors from 0.2 mm² to 1.5 mm².
Rated for surge voltage up to 2.5 kV ensuring enhanced safety.

Product Description

Phoenix Contact 1862084 series angled wave soldering mount PCB terminal block features 6 contacts with a 3.5 mm pitch and is rated for 16A current and 160V voltage. It is constructed with a durable polyamide housing, offering reliability and compact design for demanding industrial and automation applications.

The angled orientation and wave soldering mount type optimize space and facilitate easier PCB wiring in environments with limited space. The push-in spring connection technology eliminates the need for tools, speeding up installation, while the defined contact force provides stable, long-lasting electrical connections.

User convenience is enhanced by the finger-operated release button, and the integrated test option allows quick verification of electrical contact integrity during maintenance. The terminal block safely accommodates both solid and flexible conductors from 0.2 mm² to 1.5 mm² with an 8 mm stripping length recommendation.

This product complies with cULus Recognised and EU RoHS standards and is suitable for a variety of applications including industrial machinery, compact electronics, and circuit board connections requiring secure terminal linkage. Manufactured in Germany, the product ensures high quality and performance reliability in professional settings.

Push-in spring connection saves installation time and eliminates tools. Defined contact force ensures long-term stability of electrical connections. Finger-operated release button enables easy wiring and maintenance. Compact size supports space-constrained PCB layouts.

Integrated test point allows quick electrical testing. Angled orientation optimizes wiring direction and PCB fit. Supports solid and flexible conductors from 0.2 to 1.5 mm². Surge voltage rating up to 2.5 kV enhances safety in transient conditions.

Recommended conductor stripping length is 8 mm for optimal contact. Explore more in the PCB Terminal Blocks category at EnvMart for reliable electronic connection solutions.
