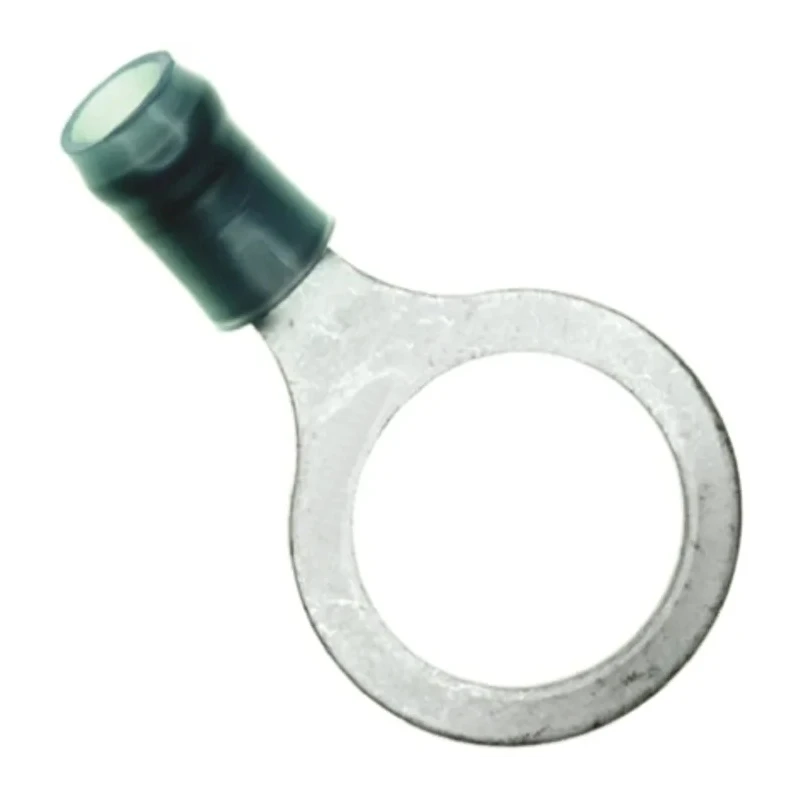

TE Connectivity PIDG Insulated Ring Terminal M12 Stud Size, 16 AWG to 14 AWG Wire Size, Blue 328849

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity PIDG Insulated Ring Terminal M12 Stud Size, 16 AWG to 14 AWG Wire Size, Blue 328849

Name: TE Connectivity PIDG Insulated Ring Terminal M12 Stud Size, 16 AWG to 14 AWG Wire Size, Blue 328849
Brand: TE Connectivity
SKU: 131973
Price: 3.12 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
Colour	Blue
THICKNESS	0.84mm
Model	328849
Insulation	Insulated
Overall Length	32.84mm
Contact Material	Copper
Series	PIDG
Maximum Operating Temperature	105°C
Insulation Material	Nylon
Contact Plating	Tin
Minimum Wire Size mm²	1mm²
Maximum Wire Size mm²	2.6mm²
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	14AWG
Outer Ring Diameter	18.11mm
Inner Ring Diameter	13.08mm
Stud Size	M12

Key Features

Constructed with high conductivity copper body ensuring optimal electrical performance.
Features a copper sleeve inside the barrel providing improved wire insulation support and preventing fraying.
Serrations in the wire barrel offer maximum contact and tensile strength after crimping.
Color coded nylon sleeve facilitates rapid wire size and tooling identification during installation.
Funnelled wire entry design allows easy and fast wire insertion during high-speed production processes.
Suitable for a wide range of applications including instruments, lighting, power supplies, panel boxes, transportation, motors, aerospace, and appliances.
Designed to meet or exceed MIL-T-7928, Type II, Class 1 and 2 standards for reliability in demanding circuit environments.
Maximum operating temperature is 105°C suitable for diverse environments.

Product Description

TE Connectivity 328849 PIDG Insulated Ring Terminal with M12 stud size and wire compatibility from 16 AWG to 14 AWG is engineered for industrial and electronic wiring applications requiring reliable and uniform crimp connections. The terminal features a high conductivity copper body with tin plating, ensuring excellent electrical contact and resistance to corrosion.

The insulated nylon sleeve is color coded blue to enable easy identification of wire size, assisting installers in high-volume wiring tasks. Designed with a serrated wire barrel, the terminal achieves superior tensile strength and contact reliability, while the copper sleeve inside the barrel supports wire insulation and prevents fraying.

Its overall length of 32.84mm and a thickness of 0.84mm make it a compact and durable component for electrical assemblies. The Ring Terminal supports wire sizes ranging from 16 AWG (1mm²) up to 14 AWG (2.6mm²), and the stud size is M12 with inner and outer ring diameters of 13.08mm and 18.11mm respectively.

TE Connectivity's PIDG terminals are widely used across industrial, laboratory, electrical panel manufacturing, aerospace, automotive, and commercial equipment sectors. Their construction ensures a uniform, high-quality crimp that withstands vibration and environmental stresses.

Constructed with a high conductivity copper body and copper sleeve for wire insulation support. Nylon insulation sleeve is blue colored for wire size identification. Serrated wire barrel ensures maximum contact and tensile strength.

Funnel shaped wire entry prevents wire strand damage and speeds assembly. Meets demanding MIL-T-7928 Type II, Class 1 and 2 requirements. Suitable for aerospace, industrial controls, lighting, panel boxes, motors, and appliances.

Maximum operating temperature of 105°C for diverse operating environments. Manufactured in the United States ensuring high production standards. Explore more TE Connectivity wire terminals and other electrical connectors at EnvMart for comprehensive wiring solutions.
