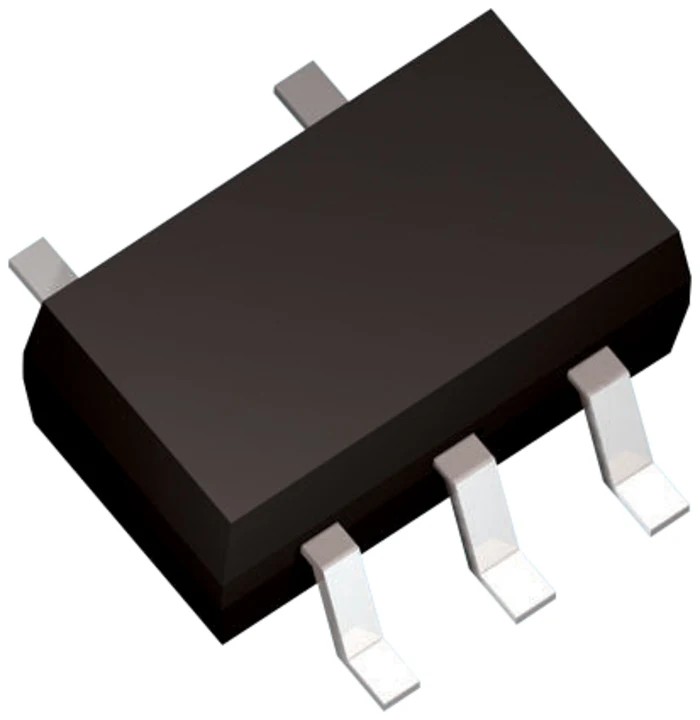

DiodesZetex 1 2-Input NOR Logic Gate, 5-Pin SOT-25 CMOS Surface Mount 74AHC1G02W5-7

DiodesZetex 74AHC1G02W5-7 is a high-performance 1 2-input NOR logic gate designed for surface mount applications. Packaged in a compact 5-pin SOT-25 format, it incorporates CMOS input technology and push-pull output, enabling efficient digital logic interfacing.

This logic gate operates over a broad supply voltage range from 2V to 5.5V and provides a swift maximum propagation delay of 9.5 ns at specified load capacitances. It reliably performs under severe temperature conditions ranging from -40°C to 125°C, ideal for demanding industrial, commercial, and electronic system implementations.

Its single-element design with two inputs makes it suitable for multiple digital logic tasks within semiconductor, electronics components, and computing devices. With maximum output currents set at -8mA (high level) and 8mA (low level), it supports robust signal driving capabilities compatible with the AHC logic family.

The compact SOT-25 form factor with dimensions height 1.3mm and length 3.1mm enables space-efficient surface mounting on printed circuit boards (PCBs). This device is manufactured in China and is not certified for automotive standards or any specific approvals, targeting general electronic component usage.

Operates with minimum 2V and maximum 5.5V supply voltage. Maximum propagation delay time is 9.5 ns at load capacitance. Input type CMOS with push-pull output type for efficient logic operations. Temperature operation range from -40°C to 125°C for wide environmental tolerance.

Single element, 2-input NOR logic gate within a compact 5-pin SOT-25 package. Maximum high level output current is -8mA and low level output current is 8mA. AHC logic family ensuring compatibility with advanced CMOS logic circuits.

Ideal for industrial, laboratory, and electronic manufacturing purposes requiring reliable logic gates. Made in China, suitable for general electronic component applications. Explore the DiodesZetex category for more semiconductor components and Logic Gates compatible with varied electronic designs and industrial automation requirements on EnvMart.
