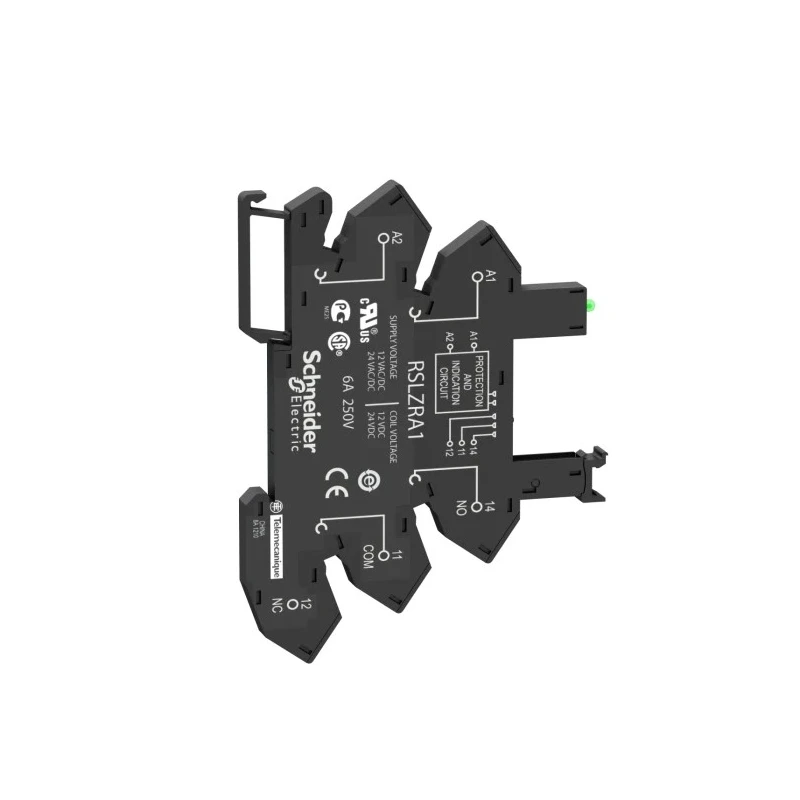

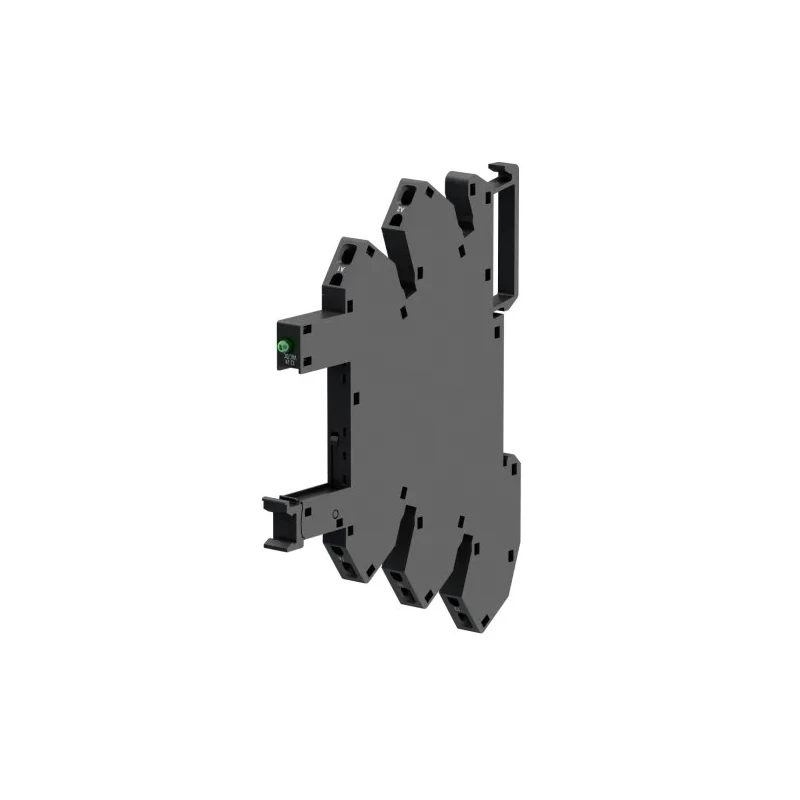

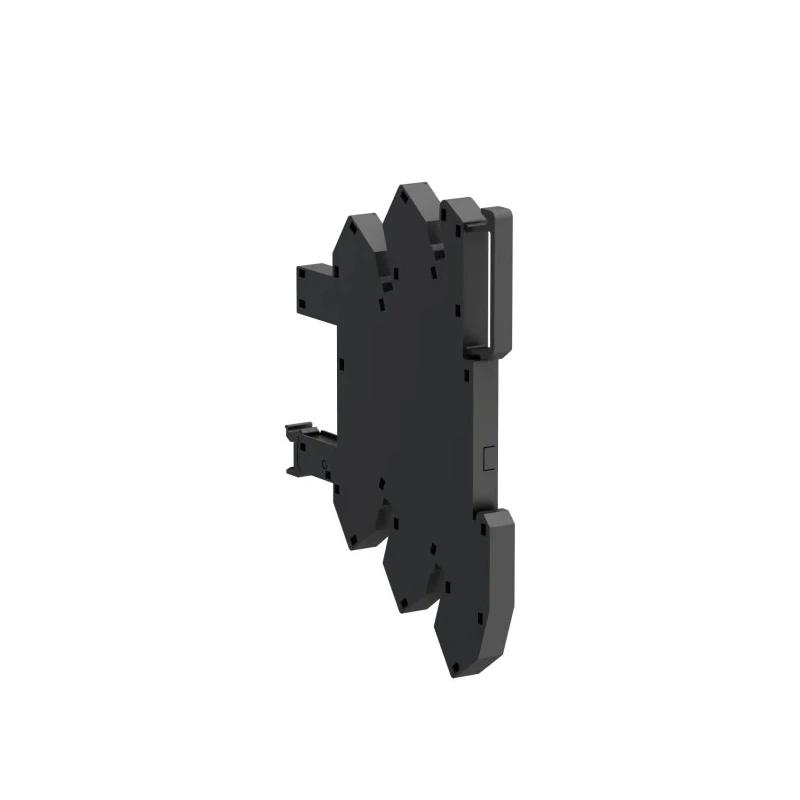

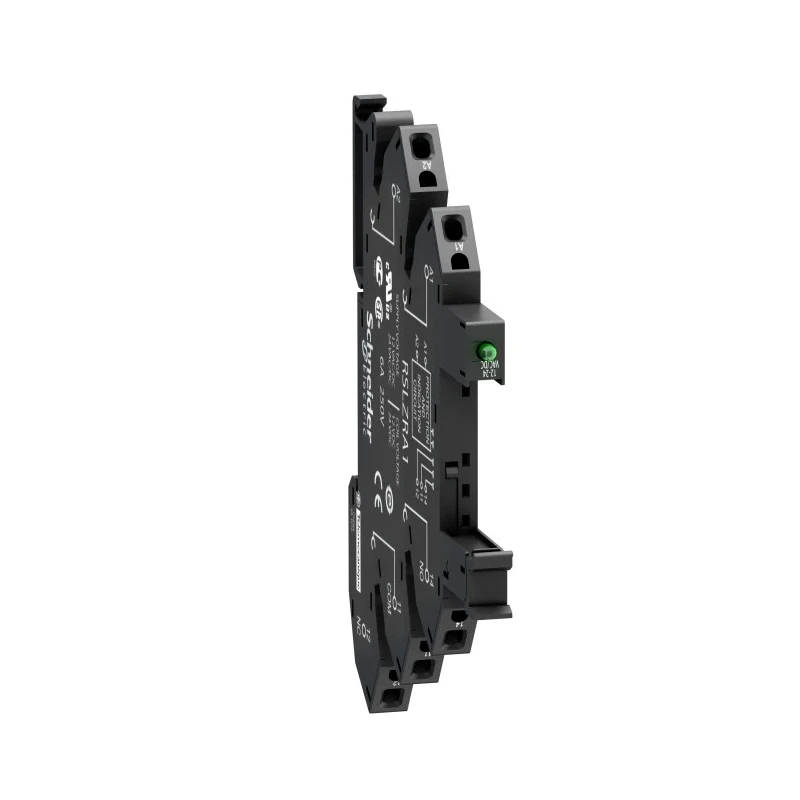

Schneider Electric Harmony Relay RSL Series Plug-in Relay Socket 24V dc Coil SPDT 6A RSLZRA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 103mm |
| Length | 6.2mm |
| Model | RSLZRA1 |
| Width | 78.7mm |
| Mount Type | Plug-in |
| Series | Harmony Relay RSL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Spring Terminal |
| Standards/Approvals | RoHS |
| Coil Voltage | 24V dc |
| Coil Current | 6A |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 24V ac |
Key Features
- Plug-in mount type for easy installation onto DIN rails.
- Spring terminal connection ensures secure wire clamping with 10 to 40N force.
- Compact dimensions of 103 mm height, 6.2 mm length, and 78.7 mm width fit tight spaces.
- Wide operating temperature from -40°C to 85°C suitable for harsh environments.
- Built with hardwearing plastic housing for impact and abrasion resistance.
- Provides galvanic isolation to prevent electrical interference during signal transfer.
- LED status indicator simplifies troubleshooting and operational checks.
- Designed for industrial automation, power plants, radio-electronic systems, and radiological applications.
Product Description
Schneider Electric RSLZRA1 Harmony Relay RSL Series plug-in relay socket features a 24V dc coil voltage and Single Pole Double Throw (SPDT) contact configuration rated for 6 amps. This relay socket is designed to provide reliable electromechanical interfacing between components operating at different electrical potentials, ensuring smooth and interference-free signal transfer through galvanic isolation.
The relay socket utilizes spring terminal connections which maintain a secure hold on wiring with clamping force ranging from 10 to 40 Newtons, ensuring wire stability even in environments subject to vibration. Its compact design with dimensions 103 mm (height) x 6.2 mm (length) x 78.7 mm (width) enables easy integration into limited installations. The plastic compression spring mount clips conveniently onto DIN rails for quick and straightforward installation.
Constructed with a hardwearing plastic housing, the unit is resistant to impact and abrasion, and carries an IP20 rating that ensures protection against finger access and objects larger than 12 mm. Operating temperature ranges from -40°C to 85°C, making it suitable for use in harsh industrial conditions. An LED indicator provides clear visual status, simplifying maintenance and troubleshooting.
This Relay Socket is suitable for use in automated industrial operations, power generation plants, radio-electronic systems, and radiological applications. It belongs to a complete range of electromechanical relays including interface, miniature, and power relays with contacts up to 30A.
Plug-in mount type for easy installation onto DIN rails. Spring terminal ensures reliable and secure wire connections. Compact and space-saving form factor. Wide operating temperature range for diverse environments. Durable plastic housing offers impact resistance.
Galvanic isolation prevents cross interference of signals. LED status indicator facilitates troubleshooting. Suitable for industrial automation and power plant applications. Explore more Schneider Electric relays and interface products on EnvMart to meet your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this relay socket is 24V DC.
It has a maximum switching current rating of 6A.
The dimensions are 103 mm in height, 6.2 mm in length, and 78.7 mm in width.
It utilizes spring terminal connections for secure wire clamping.
The operating temperature range is from -40°C to 85°C.
This relay socket features a Single Pole Double Throw (SPDT) contact configuration.
Yes, it is suitable for harsh environments due to its wide operating temperature range and durable plastic housing.
It complies with RoHS standards.
It is designed for industrial automation, power plants, radio-electronic systems, and radiological applications.
This relay socket is designed for plug-in mounting onto DIN rails for easy installation.
An LED status indicator is included to simplify troubleshooting and operational checks.
The country of origin for this relay socket is India.
