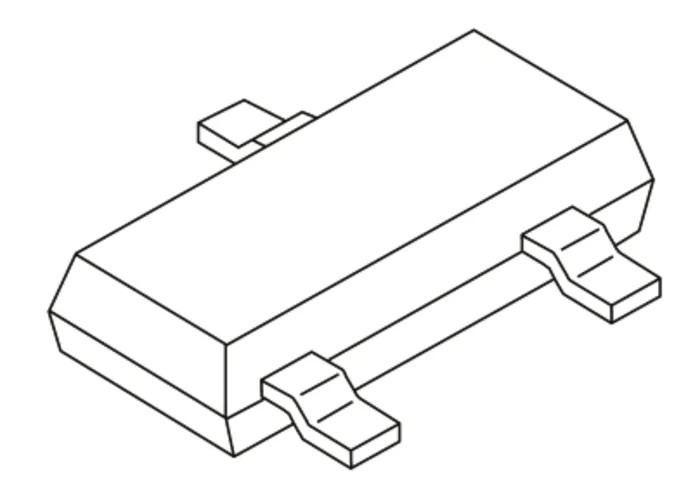

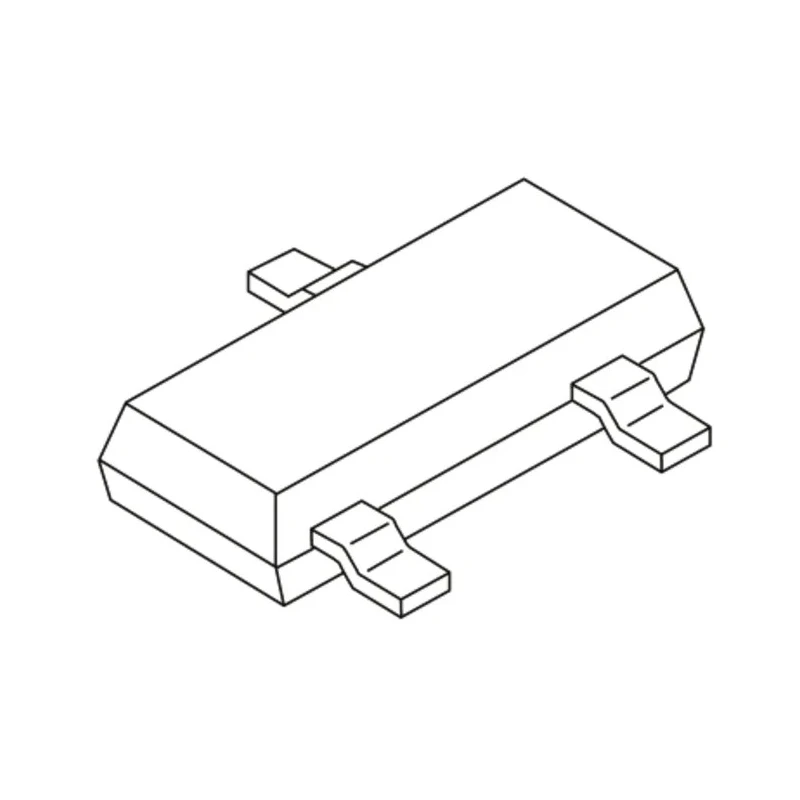

Nexperia 2-Element Uni-Directional ESD Protection Diode 40 W, 3-Pin SOT-23 MMBZ33VAL,215

Nexperia MMBZ33VAL,215 2-Element Uni-Directional ESD Protection Diode is engineered for rapid response to transient voltage events, providing durable protection for sensitive electronics. The device’s common anode design integrates two elements in a single chip, enhancing ESD suppression capabilities while maintaining a compact footprint.

This diode is housed in a SOT-23 small outline transistor package, making it ideal for surface mounting on printed circuit boards in automotive, industrial, and consumer electronics applications. The peak pulse power dissipation rating of 40 watts and maximum peak pulse current of 0.87 amps ensure robust handling of surges and spikes.

Operating temperatures range widely from -55°C to 150°C, allowing reliable functioning under harsh environmental conditions. The device’s minimum breakdown voltage is 31.35 volts with a reverse stand-off voltage up to 26 volts, suitable for protecting circuits against voltage transients within this range.

With a low maximum reverse leakage current of 5 nanoamperes and a clamping voltage of 46 volts, the diode effectively prevents damage due to electrical overstress while minimizing power loss. Compliance with automotive standard AEC-Q101 underscores its suitability for use in high-reliability automotive electronic systems.

The compact physical dimensions - 3 mm length, 1.4 mm width, and 1.1 mm height - facilitate integration into high-density electronic assemblies. Manufactured in China with strict quality controls, this diode assures consistent performance.

This diode features a common anode configuration with two elements per chip for effective ESD suppression. Surface mount package type SOT-23 facilitates compact design and easy installation. Peak pulse power dissipation of 40 W ensures capability to handle strong transients.

Wide operating temperature range from -55°C to 150°C for diverse application environments. Low maximum reverse leakage current reduces power loss and improves efficiency. Clamping voltage at 46 V protects sensitive electronics from voltage spikes.

Meets automotive standard AEC-Q101 for use in vehicular electronics. Compact size dimensions support dense PCB layouts.

Industrial uses include protection in automotive electronics, consumer devices, telecommunications, and power management systems. This diode is an essential component in safeguarding semiconductor devices against electrostatic discharge and other transient voltage conditions.
