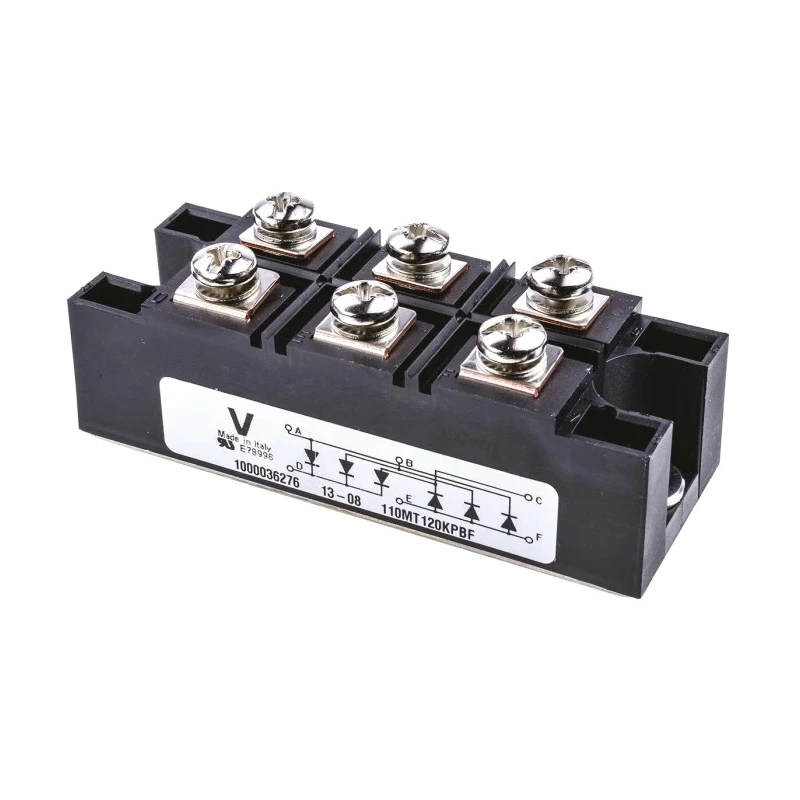

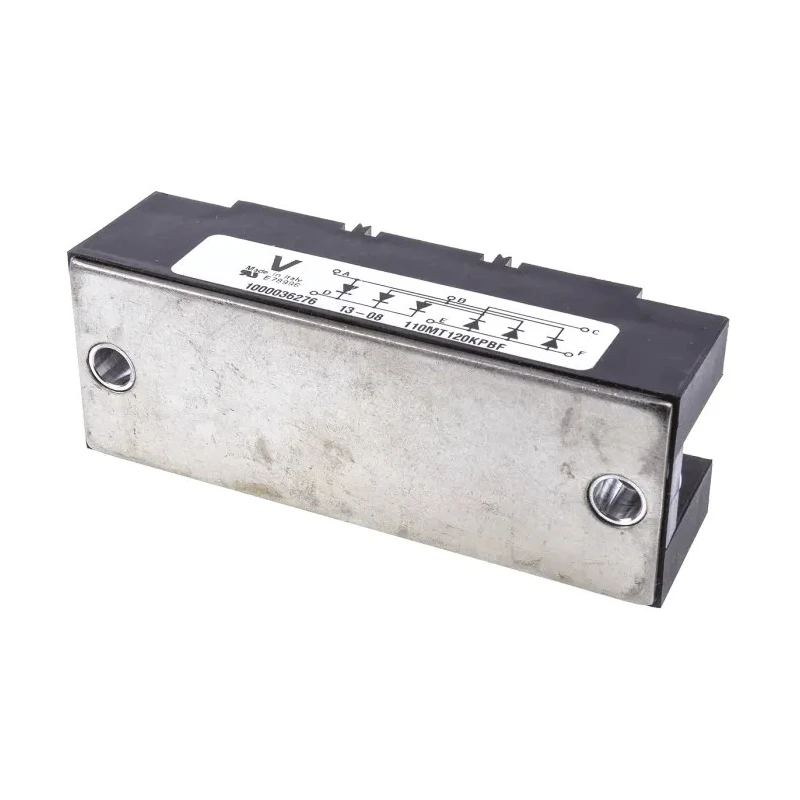

Vishay Bridge Rectifier Module 1200 V Peak Reverse Repetitive Voltage 1 kA Forward Current 150A 6-Pin Single VS-110MT120KPBF

Vishay VS-110MT120KPBF Bridge Rectifier Module is engineered for efficient conversion of alternating current (AC) to direct current (DC) in industrial, electronic, and power supply equipment. Rated for 1200 V peak reverse repetitive voltage and 150A forward current, this module supports demanding three-phase rectification needs with a robust 6-pin single configuration.

The module's INT-A-PAK package ensures high thermal conductivity and an electrically insulated case, enabling superior heat dissipation and reliability under harsh operating conditions. Withstanding a wide temperature range from -40°C to 150°C, it suits applications in industrial automation, manufacturing machinery, and power electronics. Its peak non-repetitive forward surge current of 1kA adds extra protection against transient currents, ensuring long-term durability.

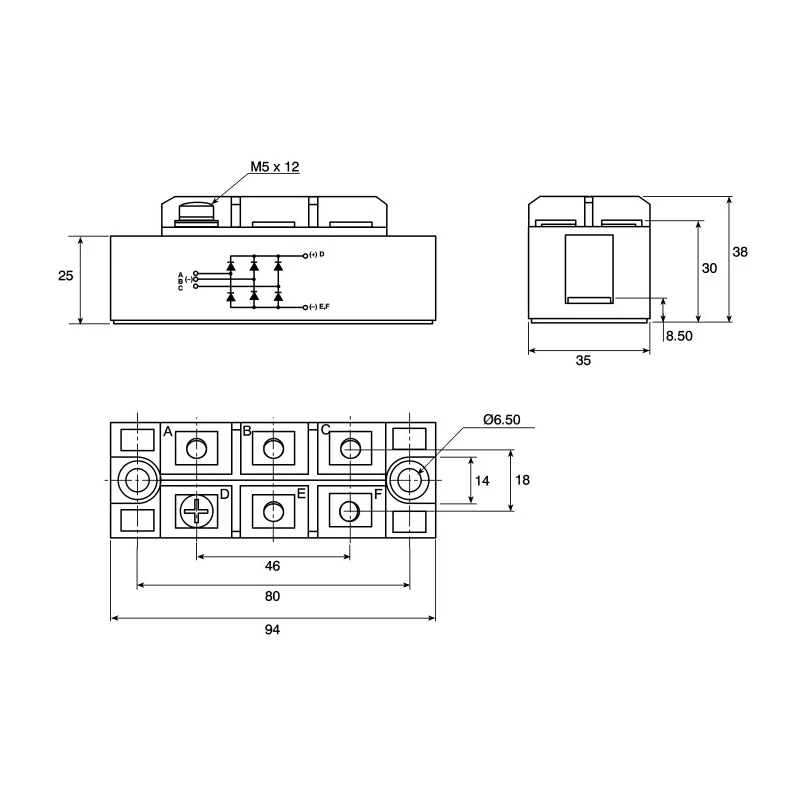

Physical dimensions of 94 mm by 35 mm by 30 mm facilitate compact mounting in panels or control enclosures. The module features a low peak forward voltage of 1.4 V which reduces conduction losses and enhances energy efficiency.

This bridge rectifier module finds extensive use in industrial power conversion systems, motor drives, welding machines, and other high power electronics requiring dependable and efficient rectification.

Supports a peak reverse repetitive voltage of 1200 V for reliable performance. Handles a forward current of 150A suitable for high power semiconductor circuits. Designed for three-phase configuration offering efficient conversion.

Compact INT-A-PAK package ensures high thermal conductivity and electrical insulation. Operating temperature range from -40°C to 150°C supports various industrial conditions. Features 6-pin single configuration for straightforward panel mounting installation.

Peak non-repetitive forward surge current capacity of 1kA enhances surge robustness. Low peak forward voltage of 1.4V minimizes power losses during operation. Physical dimensions optimized at 94mm length, 35mm width, and 30mm height for compact integration.

Manufactured to industry standards ensuring durability and reliability. Choose Vishay Bridge Rectifier Modules from EnvMart for industrial and electronic applications that demand reliable power conversion and thermal performance.
