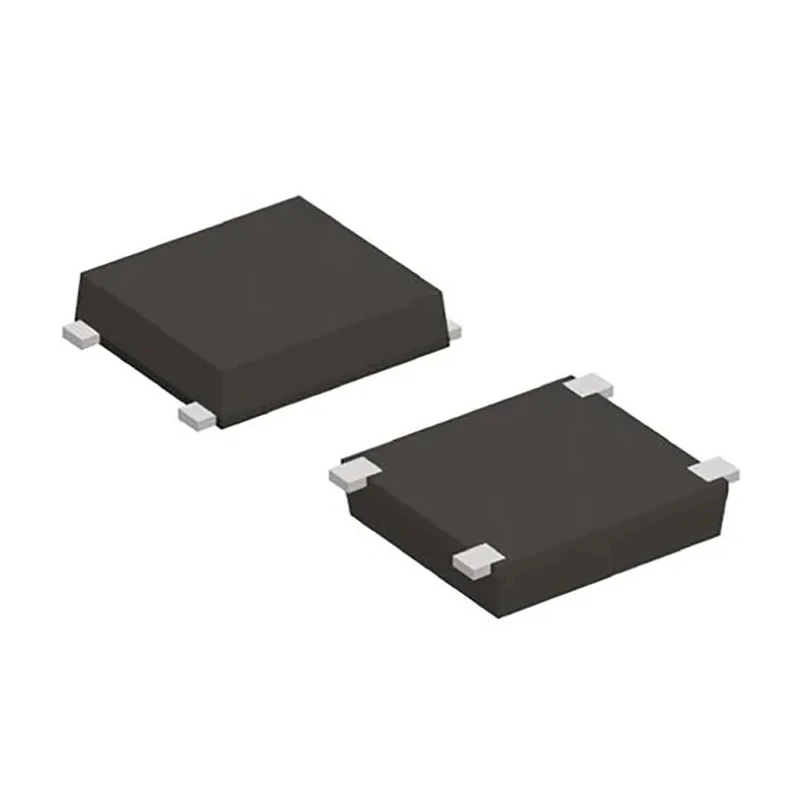

DiodesZetex Bridge Rectifier 1000V 70A 4-Pin Surface Mount MSB15MH-13
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.42mm |
| Length | 6.7mm |
| Model | MSB15MH-13 |
| Width | 7.4mm |
| Mount Type | Surface |
| Series | MSBL |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | MSBL |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 70A |
| Forward Current If | 1.5A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- Supports peak reverse repetitive voltage up to 1000V for robust AC to DC conversion.
- Glass passivated die construction ensures high reliability and long service life.
- 1.5A steady-state forward current with up to 70A non-repetitive surge current capacity.
- MSBL package allows for space-saving surface mount integration in high-density electronic assemblies.
- Wide operating temperature range from -55°C to 150°C for versatility in diverse environments.
- Low forward voltage drop of 1.1V to maximize efficiency in power conversion circuits.
- Suitable for single-phase bridge rectification applications in switched-mode power supplies, adapters, chargers, and more.
Product Description
The DiodesZetex MSB15MH-13 is a high-performance bridge rectifier engineered for efficient conversion of AC to DC power in demanding electronic applications. With its surface mount MSBL package, the device is ideal for high-density designs where space is at a premium.
This bridge rectifier supports a peak reverse repetitive voltage (Vrrm) of up to 1000V and a maximum forward current (If) of 1.5A. It can accommodate peak non-repetitive forward surge currents (Ifsm) up to 70A, making it suitable for power supplies, adapters, and similar loads that experience inrush events. Its robust glass passivated die construction enhances device longevity and reliability.
The four-pin, single-phase configuration allows straightforward integration onto printed circuit boards, employing a surface mount technique for fast and reliable manufacturing. The rectifier operates across a wide temperature range from -55°C to 150°C, ensuring stable performance in industrial, commercial, and consumer electronic equipment.
This device features a low forward voltage drop of just 1.1V, contributing to high efficiency in power conversion designs. The compact dimensions - 6.7mm length, 7.4mm width, and 1.42mm height - result in a thin profile that is especially valued in compact assemblies and portable equipment.
The MSB15MH-13 is designed for diverse applications, including switched-mode power supplies, battery chargers, adapters, consumer electronics, and instrumentation. It is well-suited for engineers seeking reliable surface mount solutions for bridge rectification tasks in both industrial and laboratory environments.
Key features such as its robust maximum ratings, high surge capability, and compliance with safety standards make this bridge rectifier an excellent fit for modern circuit requirements.
For more electronics and semiconductor solutions, browse the full EnvMart category of Bridge Rectifier Modules and explore the DiodesZetex range for quality power component options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MSB15MH-13 supports a peak reverse repetitive voltage of up to 1000V, making it suitable for robust AC to DC conversion applications.
This model has a maximum forward current rating of 1.5A, allowing it to handle steady-state conditions effectively.
It can accommodate peak non-repetitive forward surge currents up to 70A, which is beneficial for applications that experience inrush events.
The operating temperature range for the MSB15MH-13 is from -55°C to 150°C, ensuring stable performance in various environments.
This bridge rectifier has dimensions of 6.7mm in length, 7.4mm in width, and 1.42mm in height, making it suitable for compact designs.
It uses an MSBL package type, which is designed for surface mount applications, facilitating space-saving integration.
The forward voltage drop for the MSB15MH-13 is 1.1V, which helps maximize efficiency in power conversion circuits.
This model features a single-phase configuration, which simplifies integration onto printed circuit boards.
The MSB15MH-13 has a pin count of 4, allowing for straightforward connections in electronic assemblies.
It is suitable for applications such as switched-mode power supplies, battery chargers, and adapters, among others.
The peak reverse current for this bridge rectifier is 5μA, indicating its low leakage characteristics.
The MSB15MH-13 is manufactured in India, contributing to its availability for various electronic applications.
