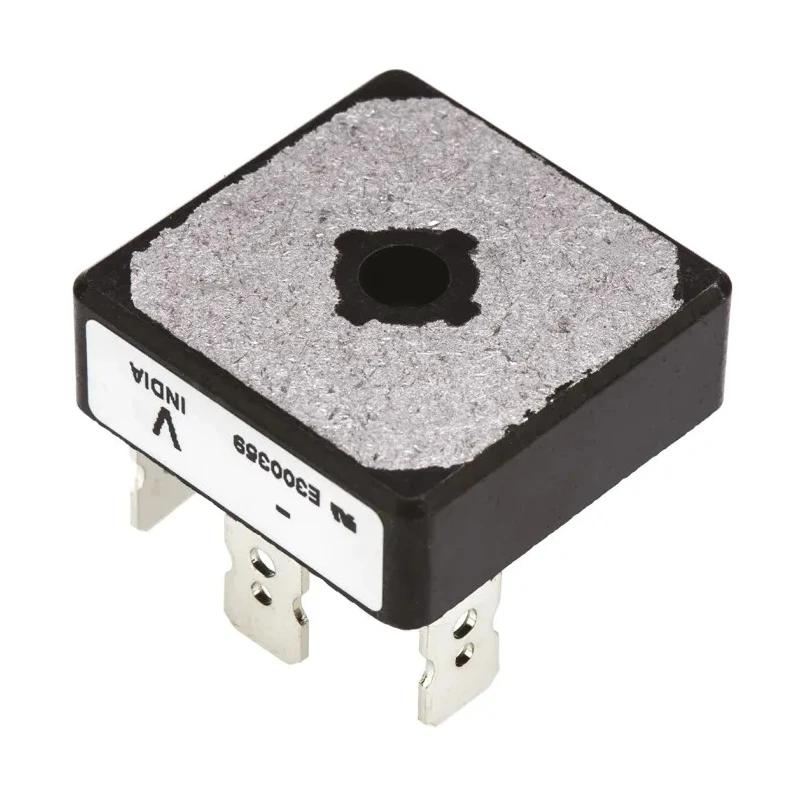

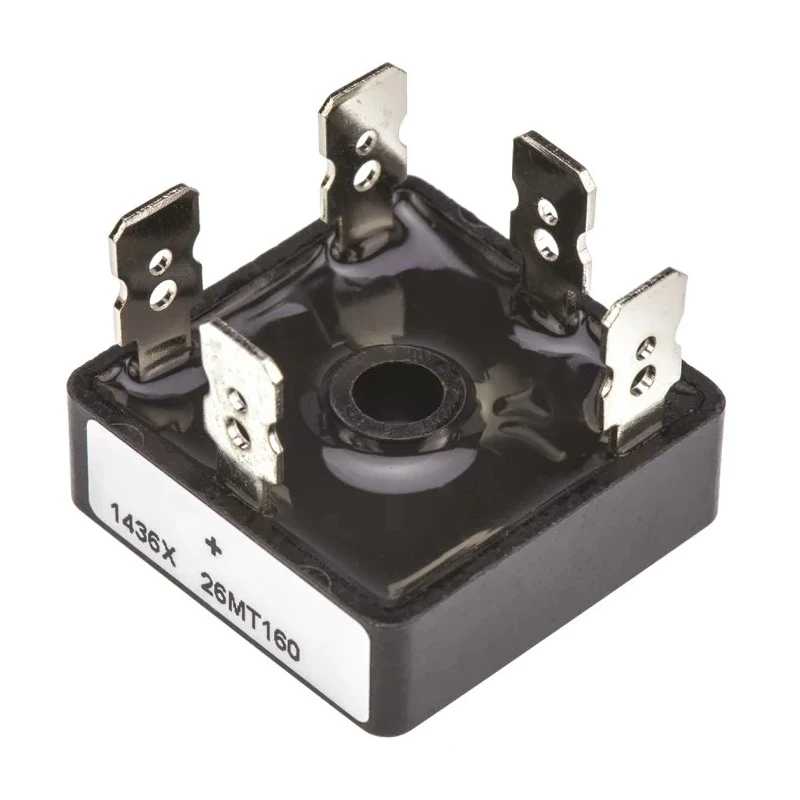

Vishay Bridge Rectifier Three Phase 1600V 375A 5-Pin D-63 Through Hole VS-26MT160
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 10mm |
| Length | 28.5mm |
| Model | VS-26MT160 |
| Width | 28.5mm |
| Mount Type | Through Hole |
| Series | VS-26MT |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-63 |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 3 |
| Pin Count | 5 |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 375A |
| Forward Current If | 25A |
| Peak Forward Voltage Vf | 1.26V |
| Universal, 3-way terminals | Push-on, wrap around or solder |
| Vishay Bridge Rectifier, 1600 V 500 A, 5-Pin SingleBrand | Vishay |
Key Features
- This rectifier module is designed for converting AC input into DC output in industrial applications.
- Comes with high thermal conductivity and an electrically insulated case for improved durability.
- Handles up to 375A peak surge current and 25A forward current.
- Operates reliably between -55°C and 150°C.
- Compact D-63 package with a center hole for secure mounting.
- Suitable for full-wave rectification in power electronics, automation, and commercial systems.
- Fully compliant with relevant industrial standards and tested for maximum reliability.
Product Description
Vishay VS-26MT160 Bridge Rectifier is a three-phase, high-power semiconductor component engineered to convert an alternating current (AC) input into a direct current (DC) output for full-wave rectification. The VS-26MT160 is rated for a peak reverse repetitive voltage of 1600V and can handle up to 375A peak surge current, making it ideal for demanding industrial power applications.
This bridge rectifier features a through-hole D-63 package, providing convenient mounting options and a robust mechanical structure. The electrically insulated case and high thermal conductivity enable stable operation under high power loads, with operating temperatures ranging from -55°C to 150°C. Its center hole fixing allows secure placement during installation.
Equipped with universal terminals that support push-on, wrap around, or solder connections, the module is versatile and compatible with various system designs. The device can deliver up to 25A forward current and is engineered for excellent power-to-volume ratios, making it suitable for space-constrained installations.
Designed for rigorous full-wave rectification applications. Bridge arrangement ensures consistent output polarity for either input polarity. Used in industrial power supplies, automation, HVAC, and commercial electronics.
Ensures maximum reliability, validated in Vishay’s VS-26MT Series. Compact form factor simplifies integration into equipment and panels. Peak forward voltage is 1.26V; peak reverse current rated at 200μA.
Ideal for use in industrial control systems, manufacturing machinery, renewable energy converters, and commercial power electronics, this bridge rectifier delivers exceptional reliability where high current and high voltage handling are critical. Package dimensions are approximately 28.5 x 28.5 x 10 mm, facilitating easy fitment in standard PCB layouts or chassis panels.
Explore other Vishay semiconductor solutions and Bridge Rectifier Modules in the EnvMart Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of the Vishay VS-26MT160 bridge rectifier is 1600V.
This model can handle a forward current of up to 25A.
The maximum operating temperature for this rectifier is 150°C.
The dimensions of the D-63 package are approximately 28.5mm in length, 28.5mm in width, and 10mm in height.
This rectifier uses a through-hole mounting type.
The peak non-repetitive forward surge current rating is 375A.
The minimum operating temperature for this model is -55°C.
The VS-26MT160 rectifier has a pin count of 5.
The terminals support universal, 3-way connections including push-on, wrap around, or solder.
This bridge rectifier is suitable for full-wave rectification in industrial power supplies, automation, HVAC, and commercial electronics.
The peak forward voltage for this rectifier is 1.26V.
The peak reverse current rating is 200μA.
