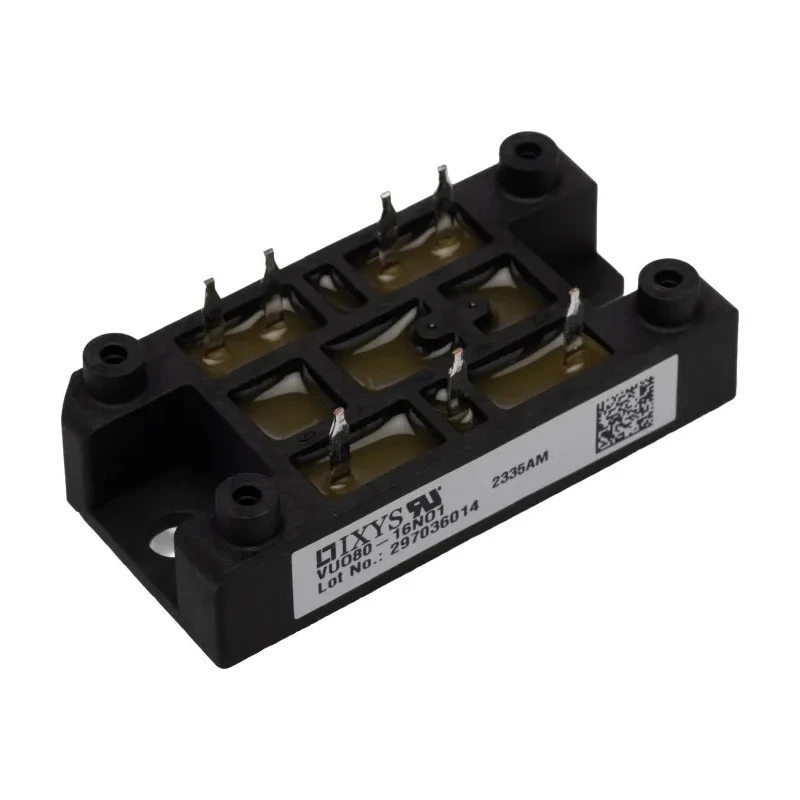

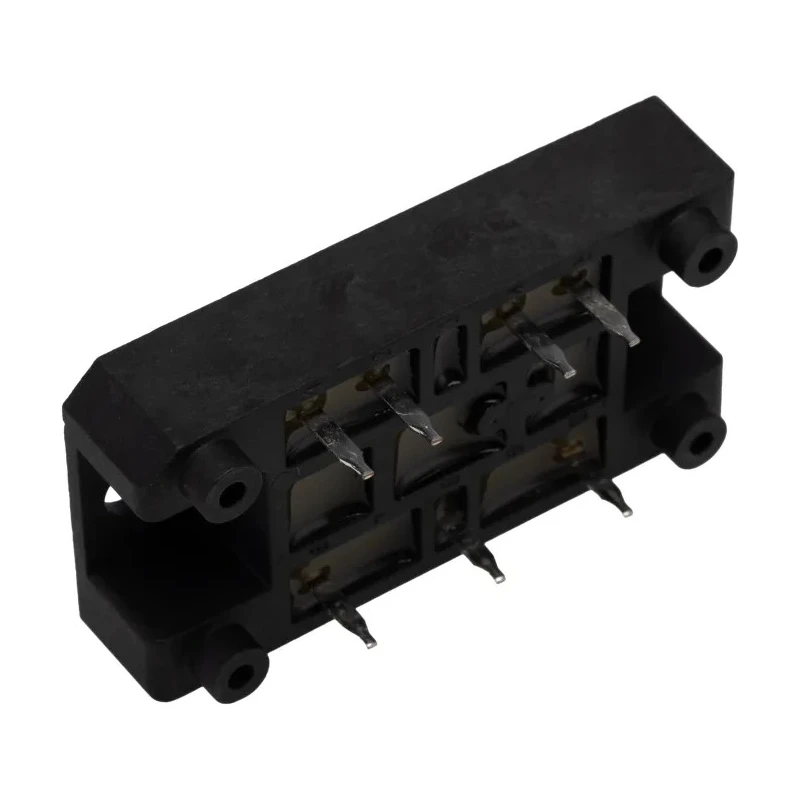

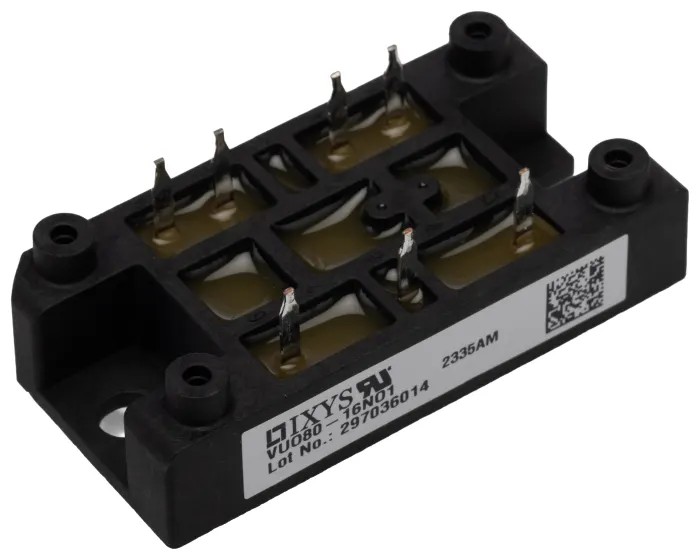

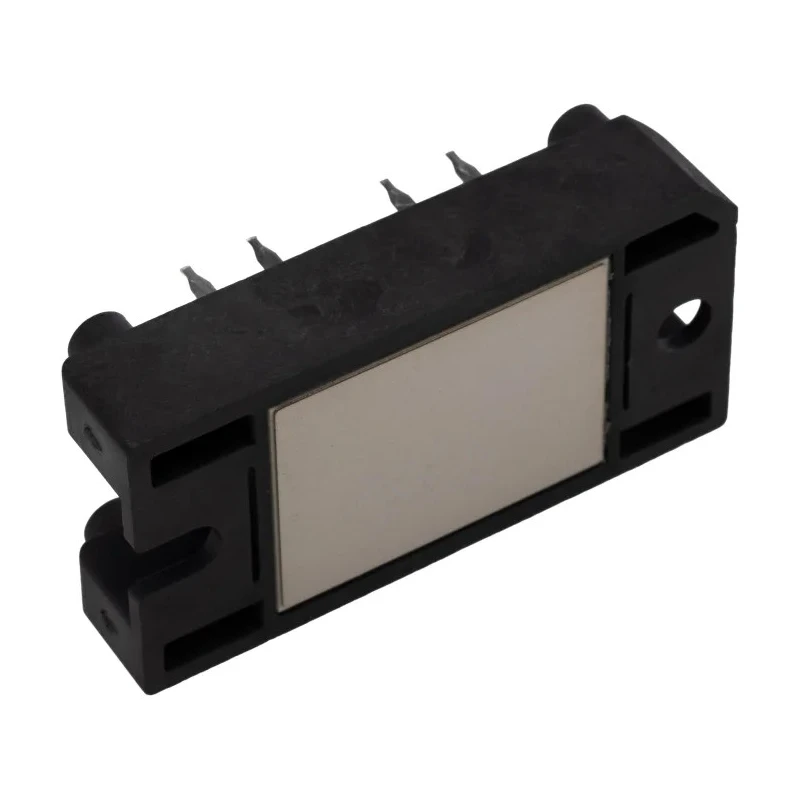

IXYS Bridge Rectifier Module 1600V 640A 5-Pin Panel V1-A-Pack VUO80-16NO1
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 17mm |
| Length | 63mm |
| Model | VUO80-16NO1 |
| Width | 31.6mm |
| Mount Type | Panel |
| Series | VUO80 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | V1-A-Pack |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 3 |
| Pin Count | 5 |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Peak Reverse Current Ir | 300μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 640A |
| Forward Current If | 82A |
| Peak Forward Voltage Vf | 1.5V |
| IXYS Bridge Rectifier, 1200 V 570 A, 5-Pin SingleBrand | IXYS |
| UL Registered | E 72873 |
Key Features
- Three-phase bridge rectifier module for high current industrial applications.
- Rated for up to 1600V peak reverse repetitive voltage for safe and reliable operation.
- Maximum continuous current of 82A with a surge capacity of 640A.
- Panel mount V1-A-Pack design with direct copper bonding ceramic for improved heat dissipation.
- Wide temperature range from -40°C to 150°C enables operation in demanding environments.
- Low forward voltage drop and minimal leakage ensure energy efficiency.
- 5-pin configuration suited for PCB mounting and secure installation.
- Compact package at 63mm length, 31.6mm width, and 17mm height for space-saving integration.
Product Description
The IXYS VUO80-16NO1 Bridge Rectifier Module is engineered for demanding industrial and electronic power applications requiring robust three-phase AC to DC conversion. With a peak reverse repetitive voltage of 1600V and a maximum surge current capability of 640A, this module ensures reliable operation in high-power environments.
This module features a panel mount V1-A-Pack form factor, optimized with direct copper bonding ceramic technology to enhance heat dissipation and improve thermal cycling performance. The 5-pin configuration streamlines PCB mounting, allowing for secure and efficient installation in control cabinets, power supplies, and motor drives.
Designed to deliver stable DC output from a three-phase AC source, the rectifier operates efficiently with a maximum continuous forward current of 82A. Its low forward voltage drop (1.5V) and minimal leakage current (300μA) provide excellent energy efficiency and minimize losses.
The VUO80-16NO1 operates across a wide ambient temperature range, from -40°C up to 150°C, making it suitable for both indoor and outdoor installations, including harsh industrial environments. Its durable construction and compact footprint (63mm x 31.6mm x 17mm) ensure ease of integration even in restricted spaces.
Key applications for this module include motor control panels, power supplies, industrial automation systems, and commercial electrical distribution. The module meets UL registered standards, supporting compliance and quality expectations for mission-critical builds.
Energy efficiency, reliability, and ease of mounting are hallmarks of the VUO80-16NO1. It is suitable for sectors such as manufacturing, HVAC, power conversion, and renewable energy systems.
Explore more Bridge Rectifier Modules and IXYS products in the Electronics & Electricals > Semiconductor > Bridge Rectifier Module category on EnvMart for high-performance power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The IXYS VUO80-16NO1 has a peak reverse repetitive voltage of 1600V.
This model can handle a maximum continuous forward current of 82A.
The surge current capacity of this bridge rectifier module is 640A.
The dimensions of this module are 63mm in length, 31.6mm in width, and 17mm in height.
It operates within a temperature range of -40°C to 150°C.
The VUO80-16NO1 features a 5-pin configuration that is suited for PCB mounting, allowing for secure installation.
This bridge rectifier module is suitable for applications such as motor control panels, power supplies, and industrial automation systems.
The forward voltage drop for the VUO80-16NO1 is 1.5V.
The peak reverse current is rated at 300μA.
The package type is V1-A-Pack, designed for panel mounting.
Yes, the IXYS VUO80-16NO1 is UL registered with the designation E 72873.
The module utilizes direct copper bonding ceramic technology to enhance heat dissipation and thermal cycling performance.
