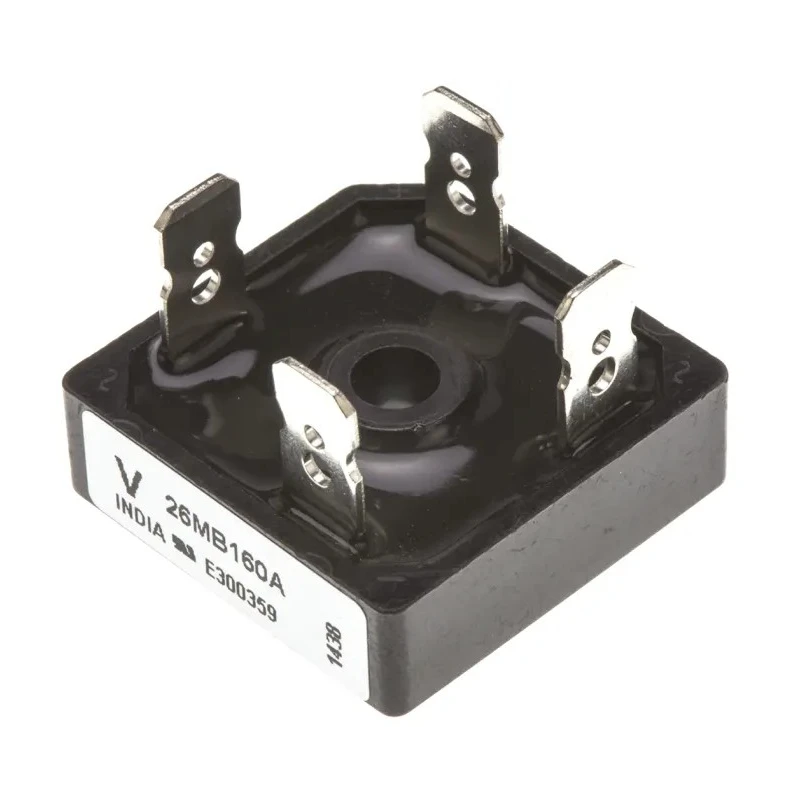

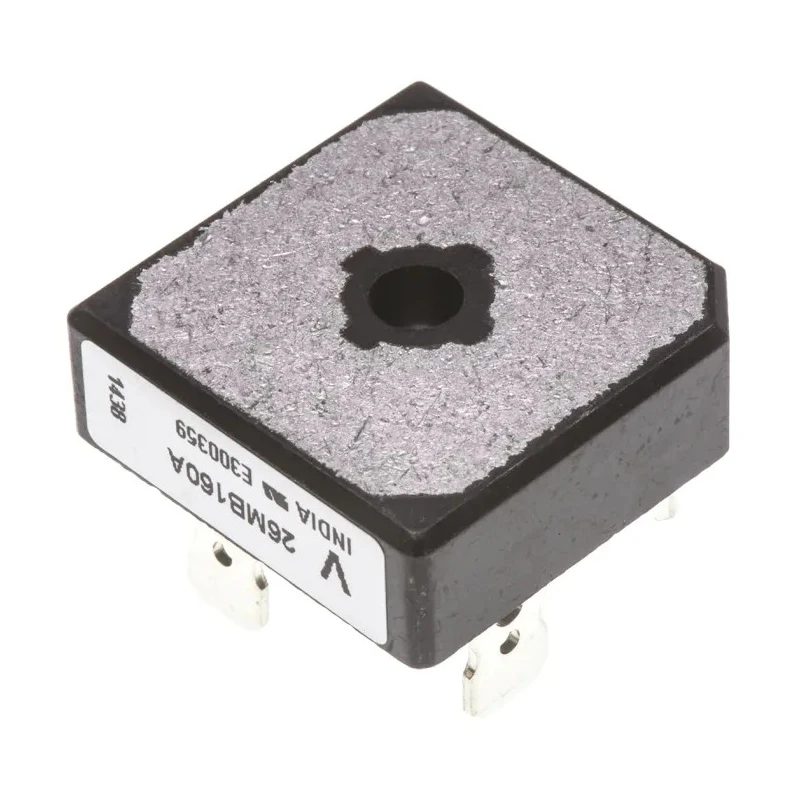

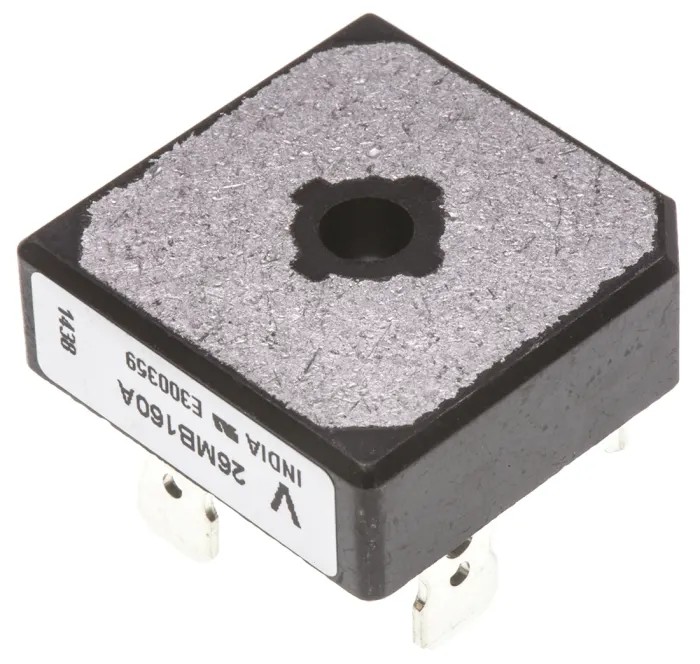

Vishay Bridge Rectifier 1600V 420A 4-Pin Single Phase Screw Mount D-34 VS-26MB160A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 9.8mm |
| Length | 28.5mm |
| Model | VS-26MB160A |
| Width | 28.5mm |
| Mount Type | Screw |
| Series | VS-26MB |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-34 |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 420A |
| Forward Current If | 25A |
| Peak Forward Voltage Vf | 1.25V |
| Universal, 3 way terminals | push-on, wrap around, or solder |
| IXYS Bridge Rectifier Module, 1600 V 440 A, 4-Pin SingleBrand | IXYS |
| Vishay Bridge Rectifier, 1600 V 155 A, 4-Pin SingleBrand | Vishay |
Key Features
- Reliable rectification for industrial and instrumentation use.
- Offers a peak reverse repetitive voltage of 1600V.
- Handles a peak forward surge current of up to 420A.
- Supports single-phase AC to DC conversion with 4-pin configuration.
- High thermal conductivity and electrically insulated case for improved safety.
- Operates between -55°C and +150°C ambient temperature.
- Compact D-34 package with screw mounting for secure installation.
- Nickel-plated terminals support lead-free soldering.
Product Description
Vishay VS-26MB160A Bridge Rectifier is designed for robust, efficient AC to DC conversion in demanding industrial, instrumentation, and general-purpose applications. With a peak reverse repetitive voltage of 1600V and a peak non-repetitive forward surge current of 420A, this device provides dependable rectification with excellent reliability and performance.
The unit features a compact D-34 package and supports installation through secure screw mounting. The rectifier includes four universal terminals allowing push-on, wrap around, or solder connections, making it versatile for a variety of configurations.
Electrical insulation is provided by the high thermal conductivity package, improving both thermal management and safety. Nickel-plated terminals are compatible with lead-free soldering alloys, while the center hole permits convenient fixing. This model is well-suited for full-wave rectification tasks in instrumentation and general-purpose setups.
The rectifier operates reliably in extreme temperature conditions, from -55°C to +150°C, making it suitable for environments where durability and stability are critical. It maintains a maximum forward current of 25A and a low peak reverse current of 10μA, ensuring efficient operation with minimal energy loss.
Reliable rectifier for industrial and instrumentation applications. Peak repetitive reverse voltage: 1600V. Forward surge current: up to 420A. 4-pin, single-phase bridge configuration. Operating temperature range: -55°C to +150°C.
Compact and robust D-34 package with screw mount. Electrically insulated case for enhanced safety. Universal 3-way terminals for easy connectivity. Nickel-plated terminals suitable for modern soldering methods. Qualified for demanding industrial standards.
Typical use cases include industrial rectification, laboratory instrumentation powering, and commercial equipment requiring a reliable AC to DC conversion stage. This rectifier is commonly applied in manufacturing, HVAC, water treatment systems, and power supply assemblies.
Browse more Vishay Bridge Rectifier Modules and other semiconductor solutions on EnvMart to enhance industrial electronic efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of this model is 1600V.
It can handle a peak non-repetitive forward surge current of up to 420A.
This rectifier operates reliably within a temperature range of -55°C to +150°C.
It comes in a compact D-34 package and is designed for screw mounting.
This model features a total of 4 pins for connections.
The universal 3-way terminals support push-on, wrap around, or solder connections.
The maximum forward current rating for this model is 25A.
The peak forward voltage for this bridge rectifier is 1.25V.
It is suitable for industrial rectification, laboratory instrumentation powering, and general-purpose AC to DC conversion.
The peak reverse current for this rectifier is 10μA.
The country of origin for this model is India.
This model belongs to the VS-26MB series.
