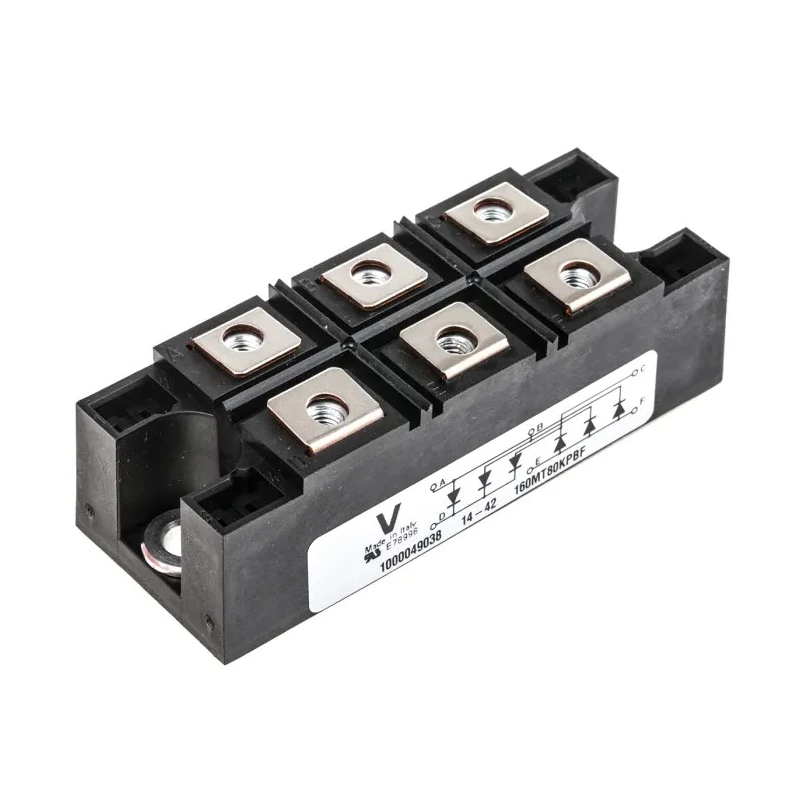

Vishay Bridge Rectifier Module 800 V, 1.5 kA, 6-Pin, INT-A-PAK, Panel Mount, Three Phase VS-160MT80KPBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 30mm |
| Length | 94mm |
| Model | VS-160MT80KPBF |
| Width | 35mm |
| Mount Type | Panel |
| Series | VS-160MT |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | INT-A-PAK |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 3 |
| Standards/Approvals | UL file E78996 |
| Pin Count | 6 |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.5kA |
| Forward Current If | 200A |
| Peak Forward Voltage Vf | 1.49V |
Key Features
- Rated for a peak reverse repetitive voltage of 800 V for reliable operation.
- Features a peak non-repetitive forward surge current of 1.5 kA for robust performance.
- Supports a continuous forward current of up to 200 A, suitable for heavy-duty systems.

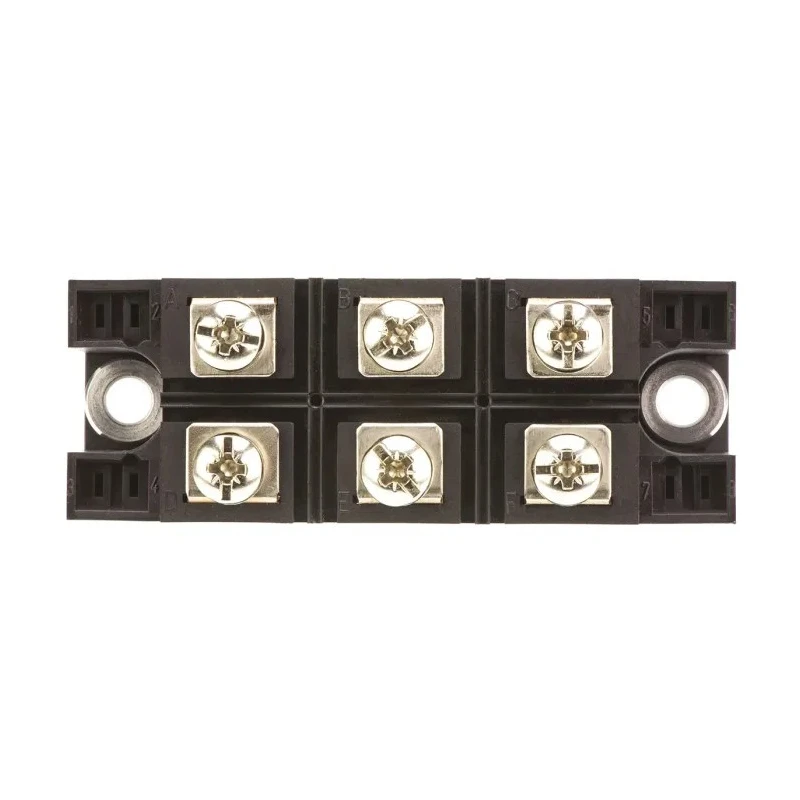

- Provides six terminals in a compact INT-A-PAK configuration for secure panel mounting.
- Operates within -40°C to +150°C, making it suitable for harsh environments.

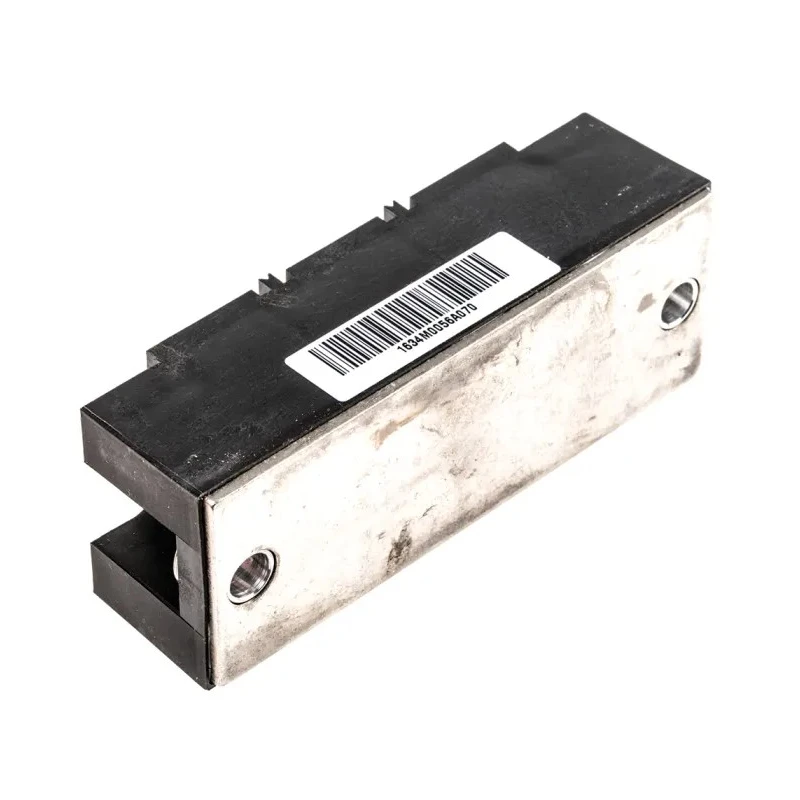

- Thermally insulated case with high conductivity for enhanced power and heat dissipation.
- Three-phase bridge arrangement ideal for industrial power supplies and rectifier systems.
Product Description
Vishay VS-160MT80KPBF Bridge Rectifier Module is a high-performance semiconductor solution designed for demanding power conversion and industrial rectification tasks. This three-phase module features an INT-A-PAK package, panel mount configuration, and operates with a peak reverse repetitive voltage of 800 V and a forward current capability of 200 A. Its robust electrical characteristics ensure reliability within full-wave rectification applications where consistent DC output is required from AC sources.
The module is engineered with six diodes in a bridge circuit, providing full-wave rectification for three-phase AC systems. Its peak surge capability of 1.5 kA allows effective handling of transient loads, while the high thermal conductivity and electrically insulated case support maximum reliability and operational longevity. The INT-A-PAK package makes installation straightforward and secure, particularly in compact industrial enclosures and panel-mounted assemblies.

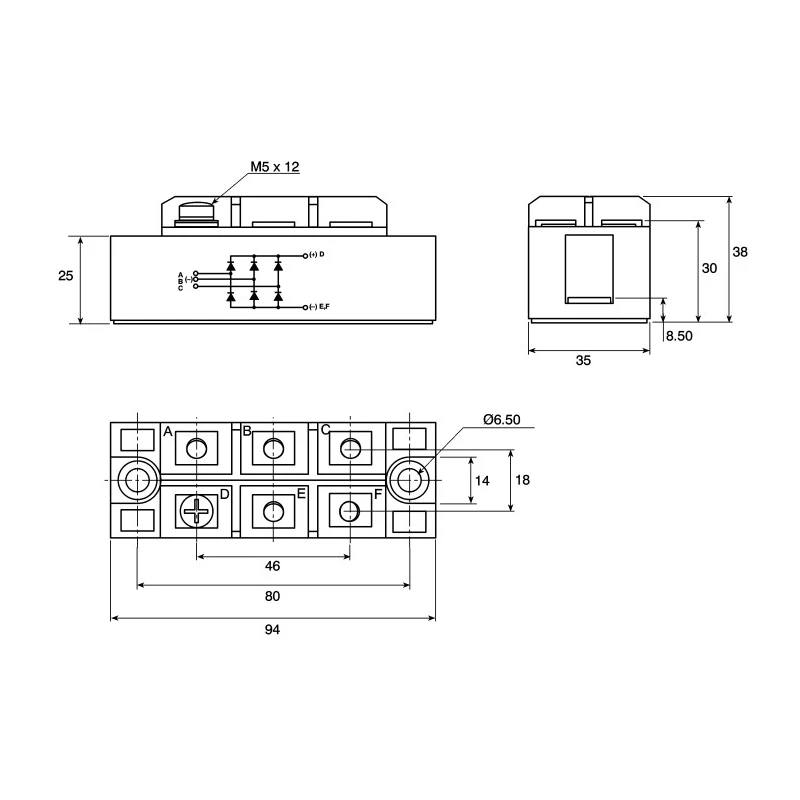

Vishay’s bridge rectifier is capable of performing in harsh environmental conditions, supporting an operating temperature range from -40°C to +150°C. The panel mount design, combined with screw terminals, offers excellent mechanical stability, supporting heavy-duty industrial, manufacturing, power distribution, and control equipment use cases. Its compact dimensions (94 mm length, 35 mm width, 30 mm height) provide a favorable power volume ratio.
The module guarantees isolating voltage up to 4000 Vrms, contributing to electrical safety and insulation integrity in high-voltage systems. The 1.49 V peak forward voltage means efficient conduction with minimal losses, while the low leakage reverse current ensures negligible unwanted flow during operation. Applications include industrial motor drives, power supplies, HVAC controls, automation systems, renewable energy inverters, and any area requiring reliable three-phase rectification.
Additional features include compliance with UL file E78996, keyed for global industrial safety standards. With no automotive standard claimed, this bridge rectifier is intended primarily for power management and legacy industrial systems rather than automotive electronics.
Select Vishay VS-160MT80KPBF for proven performance in panel-mount rectifier requirements. Explore more high-reliability semiconductors and rectifier modules for industrial, manufacturing, power conversion, and related electronics at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this module is +150°C.
It has a peak reverse repetitive voltage rating of 800 V.
This model can handle a continuous forward current of up to 200 A.
The peak non-repetitive forward surge current is rated at 1.5 kA.
The dimensions are 94 mm in length, 35 mm in width, and 30 mm in height.
This module supports panel mounting with a compact INT-A-PAK configuration.
It guarantees an isolating voltage of up to 4000 Vrms.
It operates within a temperature range of -40°C to +150°C.
This bridge rectifier module supports a three-phase configuration.
It complies with UL file E78996 for safety standards.
The peak forward voltage is 1.49 V.
It is suitable for industrial motor drives, power supplies, HVAC controls, automation systems, and renewable energy inverters.
