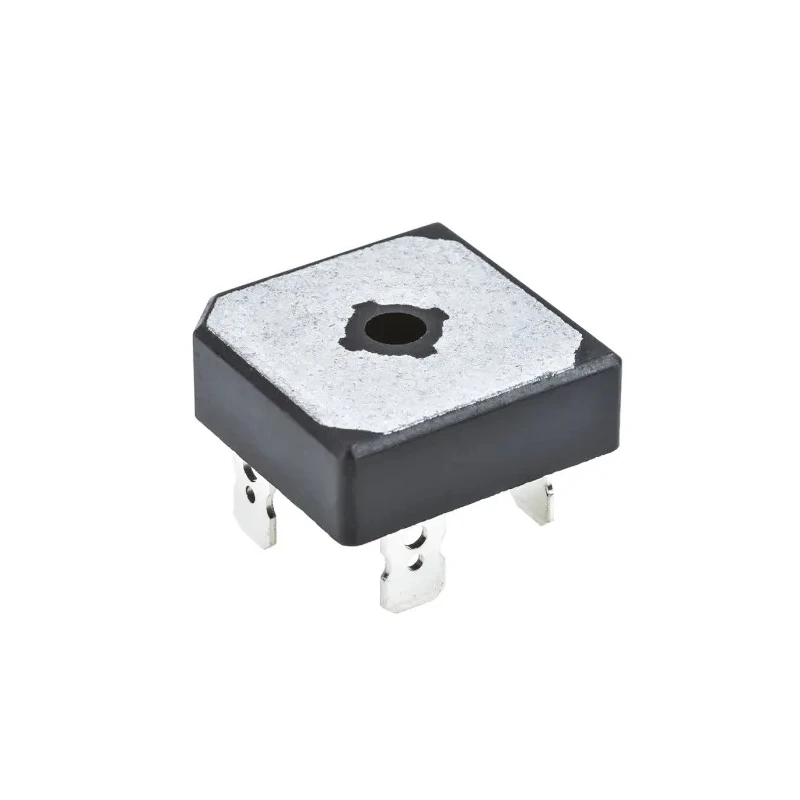

Vishay Bridge Rectifier, 200 V 420 A, 4-Pin, Screw Mount, D-34 Package VS-26MB20A

Vishay VS-26MB20A is a robust bridge rectifier, specifically engineered to handle demanding industrial and instrumentation environments requiring full-wave rectification. With a peak reverse repetitive voltage of 200 V and a forward surge capacity of 420 A, it ensures stable and reliable operation even under high-load conditions.

The unit features a single-phase configuration and a compact D-34 package with screw mount design, making installation straightforward across a wide range of electronic assemblies. Its four universal terminals support push-on, wrap around, or solder connections, offering flexibility for engineers and technicians.

Operating temperature ranges from -55°C to 150°C, enabling dependable performance in diverse climates. The rectifier’s forward current is rated at 25 A, and the insulated case maximizes safety and heat dissipation through high thermal conductivity.

Peak reverse repetitive voltage of 200 V protects against voltage spikes. Peak forward surge current of 420 A provides exceptional tolerance for transient loads. D-34 package facilitates screw mounting in compact spaces.

Four universal terminals suit multiple wiring strategies. Operating temperatures from -55°C to 150°C for a broad application range. Excellent power-to-volume ratio, ideal for space-limited designs. Lead-free solder compatibility for modern manufacturing requirements.

UL and RoHS approvals demonstrate compliance and quality.

Applications include industrial machinery, instrumentation panels, power supplies, and other electronics requiring robust AC-to-DC conversion. Its reliability and universal mounting make it a preferred choice for HVAC, manufacturing, commercial, and laboratory installations.
