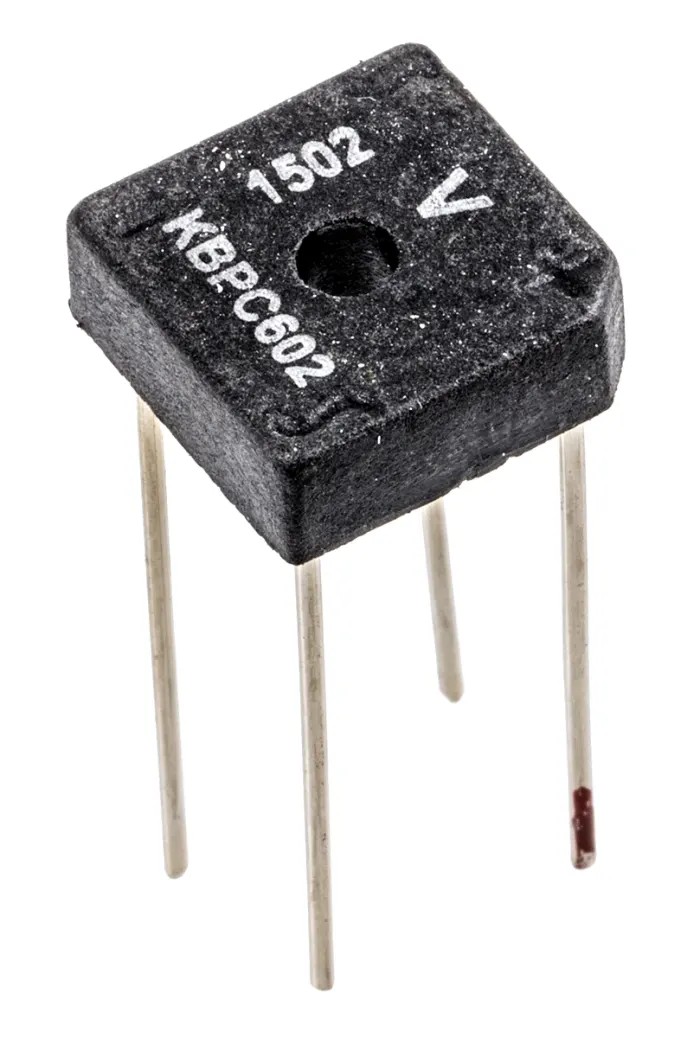

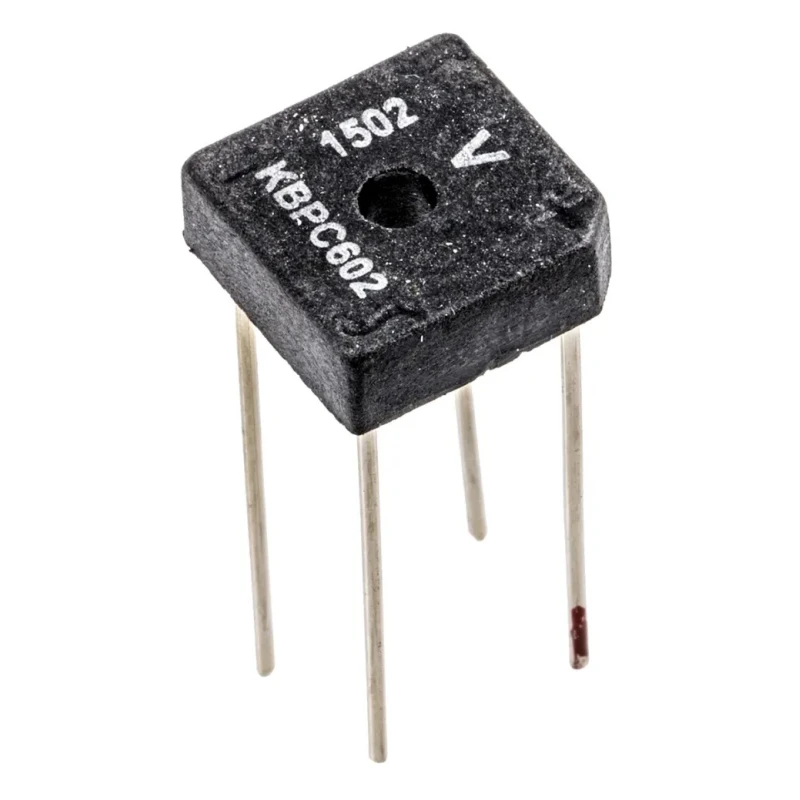

Vishay Bridge Rectifier 200V 6A 4-Pin Single VS-KBPC602
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 5.33mm |
| Length | 15.75mm |
| Model | VS-KBPC602 |
| Width | 15.75mm |
| Mount Type | Through Hole |
| Series | VS-KBPC6 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-72 |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 137A |
| Forward Current If | 6A |
| Peak Forward Voltage Vf | 1.2V |
| Vishay Bridge Rectifier, 6A, 100V, 4-PinBrand | Vishay |
Key Features
- Suitable for PCB or chassis mounting.
- Offers compact construction for space saving in circuits.
- Wide operating temperature range from -40°C to 150°C.
- Supports a peak forward surge current of up to 137A.
- Pin count of 4 allows simple integration into designs.
- Through-hole mounting style for reliable installation.
- Peak reverse repetitive voltage rated at 200V for robust operation.
- Forward current capability of 6A for demanding power applications.
Product Description
Vishay VS-KBPC602 Bridge Rectifier is a high-performance single-phase rectifier designed for printed circuit board (PCB) or chassis mounting applications. With a D-72 package and 4-pin configuration, this device efficiently converts an alternating current (AC) input into a direct current (DC) output for full-wave rectification.
Suitable for PCB or chassis mounting. Offers compact construction for space saving in circuits. Wide operating temperature range from -40°C to 150°C. Supports a peak forward surge current of up to 137A. Pin count of 4 allows simple integration into designs.
Through-hole mounting style for reliable installation. Peak reverse repetitive voltage rated at 200V for robust operation. Forward current capability of 6A for demanding power applications.
VS-KBPC602 supports an operating temperature range from -40°C to 150°C, making it ideal for both industrial and commercial electronics. Its compact D-72 form factor is suitable for space-constrained applications, and the wire lead structure ensures durability and straightforward assembly.
This bridge rectifier is engineered to deliver reliable performance in a variety of environments, with peak reverse repetitive voltage rated at 200V and a forward current capability of 6A. The peak non-repetitive forward surge current is specified at 137A, making it suitable for scenarios where power surges may occur.
The device’s through-hole mounting facilitates robust mechanical connection to PCBs or chassis, ensuring stable performance for power conversion tasks. Its single-phase configuration simplifies circuit design for full-wave rectification needs.
Typical applications include industrial automation, power supplies, AC/DC converters, and other electronics that require efficient rectification and high reliability. Explore more Vishay bridge rectifiers and semiconductor solutions in the EnvMart Electronics & Electricals category for expert power management and reliability.
Explore more products in our Bridge Rectifier Module category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 150°C.
The peak reverse repetitive voltage is rated at 200V, allowing for robust operation in various applications.
This model has a forward current capability of 6A, making it suitable for demanding power applications.
The peak non-repetitive forward surge current is specified at 137A, accommodating power surges effectively.
It features a through-hole mounting style, which facilitates reliable installation on PCBs or chassis.
The dimensions of this bridge rectifier are 15.75mm in length, 15.75mm in width, and 5.33mm in height.
This model has a single-phase configuration, designed for full-wave rectification.
This bridge rectifier has a pin count of 4, allowing for simple integration into designs.
The package type for this model is D-72, which is compact for space-saving applications.
The minimum operating temperature is -40°C, making it suitable for a wide range of environments.
Typical applications include industrial automation, power supplies, and AC/DC converters that require efficient rectification.
The peak reverse current is rated at 10μA, indicating its efficiency in handling reverse conditions.
