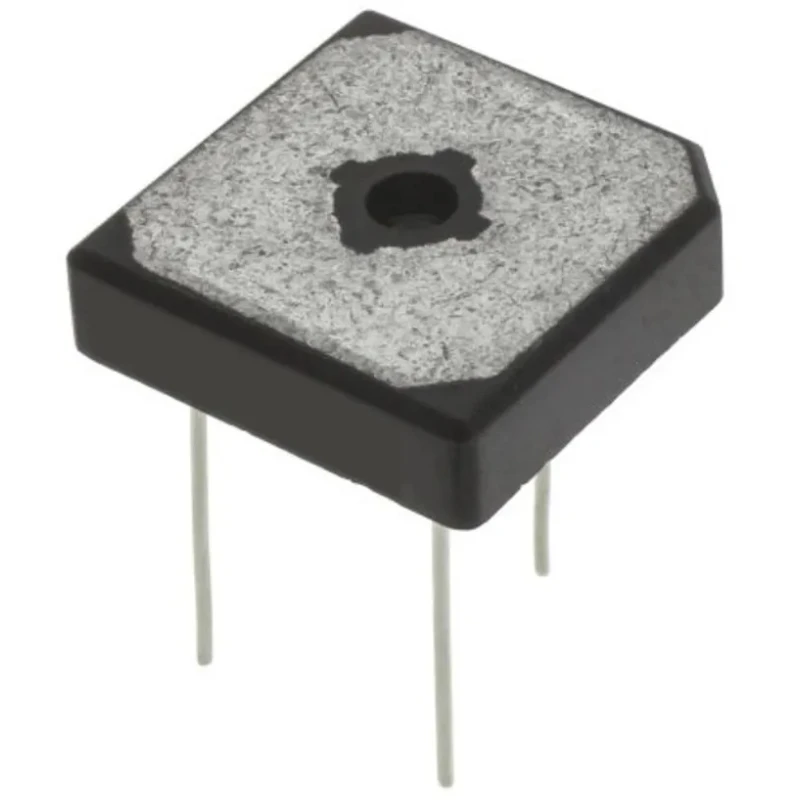

onsemi Bridge Rectifier 800 V 15 A GBPC1508W 4-Pin Through Hole, GBPC Package
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 11.23mm |
| Length | 29mm |
| Model | GBPC1508W |
| Width | 29mm |
| Mount Type | Through Hole |
| Series | GBPC15W |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBPC |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 300A |
| Forward Current If | 15A |
| Peak Forward Voltage Vf | 1.1V |
| GBPC1508 | 15 A Bridge Rectifer |
Key Features
- Peak reverse repetitive voltage rated at 800 V for robust circuit protection.
- Handles up to 15 A continuous forward current for demanding power applications.
- Through-hole mounting for secure PCB placement and improved thermal management.
- Integrally molded heatsink lowers thermal resistance for maximum heat dissipation.
- Surge overload capability up to 300 A for safe transient handling.
- Isolated voltage from case to lead over 2500 V ensures operational safety.
- Terminals finished in silver or nickel for versatile soldering and corrosion resistance.
- Broad operating temperature range from -55°C to 150°C for industrial reliability.
Product Description
The onsemi GBPC1508W is a high-performance bridge rectifier designed for reliable conversion of AC to DC in demanding power systems. This model features a peak reverse repetitive voltage of 800 V and can handle a continuous forward current up to 15 A, making it an ideal solution for industrial, commercial, and laboratory power supply circuits.
Its GBPC package includes an integrally molded heatsink, which considerably lowers thermal resistance, ensuring consistent heat dissipation under continuous operation. The rectifier supports surge overload ratings up to 300 A, allowing the device to withstand significant transient events without failure.
The through-hole configuration offers robust mechanical stability and excellent thermal management during PCB mounting and soldering. Terminals are finished in silver for GBPC-W wire-type packages and nickel for standard configurations, ensuring flexible soldering options and corrosion resistance.
Safety is enhanced by an isolated voltage from case to lead exceeding 2500 V, protecting sensitive components from potential high-voltage hazards. Operating temperature ranges are broad, spanning from -55°C minimum up to 150°C maximum, thus supporting use in challenging environments.
Typical applications include power supplies, inverter circuits, motor control, industrial automation equipment, and general use in electronic devices that require efficient rectification. This bridge rectifier is suitable for engineering, manufacturing, maintenance, and prototyping tasks where stable power conversion is critical.
The GBPC1508W is part of the GBPC15W series, renowned for reliability and robust performance in power electronics. Explore more onsemi rectifier devices and related semiconductor solutions in EnvMart’s category for Bridge Rectifier Modules.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of this model is rated at 800 V, providing robust circuit protection.
It can handle a continuous forward current of up to 15 A, making it suitable for demanding power applications.
The GBPC1508W has a surge overload capability of up to 300 A, allowing it to safely handle significant transient events.
This model operates within a broad temperature range from -55°C to 150°C, ensuring reliability in challenging environments.
It features a through-hole mounting configuration, which provides robust mechanical stability and improved thermal management during PCB placement.
The dimensions of this bridge rectifier are 29 mm in length, 29 mm in width, and 11.23 mm in height.
This model has a single configuration, suitable for various power conversion applications.
The terminals are finished in silver for GBPC-W wire-type packages and nickel for standard configurations, ensuring corrosion resistance and versatile soldering options.
It has an isolated voltage rating exceeding 2500 V from case to lead, enhancing operational safety.
This bridge rectifier is suitable for power supplies, inverter circuits, motor control, industrial automation equipment, and general electronic devices requiring efficient rectification.
The peak forward voltage for this model is 1.1 V, which is typical for bridge rectifiers in its class.
The GBPC1508W is manufactured in India.
