IXYS Bridge Rectifier Module 1600 V 600 A 5-Pin Panel Mount VUO62-16NO7

Free Delivery in India | Lowest Global Shipping Charges

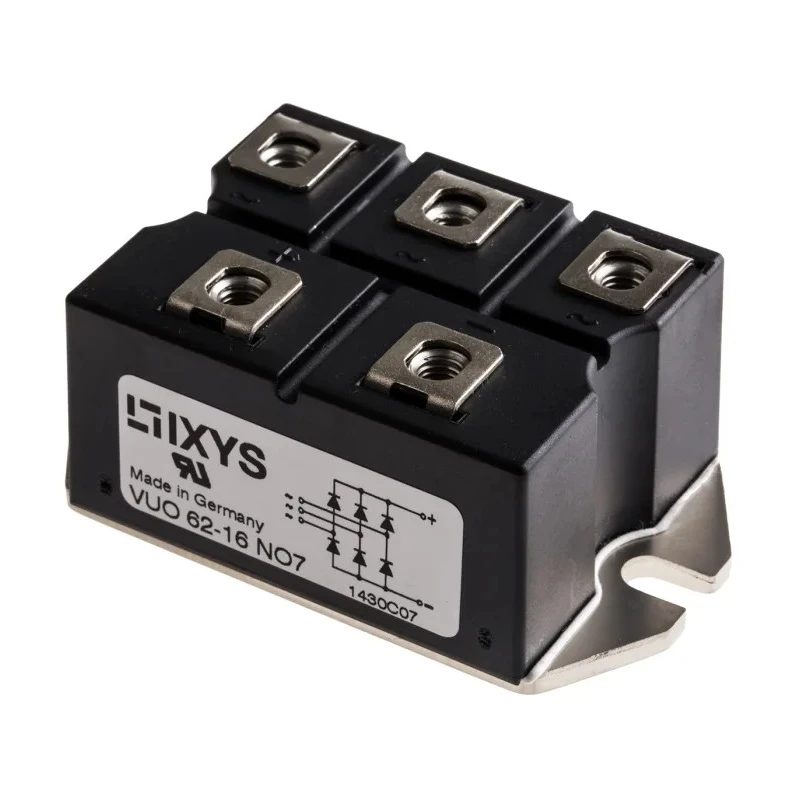

IXYS Bridge Rectifier Module 1600 V 600 A 5-Pin Panel Mount VUO62-16NO7

Name: IXYS Bridge Rectifier Module 1600 V 600 A 5-Pin Panel Mount VUO62-16NO7
Brand: IXYS
SKU: 86023
Price: 47.22 USD
Availability: InStock



Category Bridge Rectifier Module Brand IXYS Condition New

Specifications

Country of Origin	Germany
Brand	IXYS
Height	30mm
Length	72mm
Model	VUO62-16NO7
Width	42mm
Mount Type	Panel
Series	VUO62
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	PWS D
Minimum Operating Temperature	-40°C
Number of Phases	3
Pin Count	5
Peak Reverse Repetitive Voltage Vrrm	1600V
Peak Reverse Current Ir	300μA
Peak Non-Repetitive Forward Surge Current Ifsm	600A
Forward Current If	63A
Peak Forward Voltage Vf	1.8V
IXYS Bridge Rectifier Module, 1600 V 820 A, 5-Pin SingleBrand	IXYS

Key Features

Panel mount bridge rectifier module rated for 1600 V peak reverse repetitive voltage.
Delivers a maximum forward current of 63 A for continuous operation.
Supports up to 600 A peak non-repetitive forward surge current for high-load start-up.
Equipped with 5-pin configuration, suitable for three-phase systems.
Low forward voltage drop and low leakage current enhance efficiency.
Employs Direct Copper Bonding (DCB) ceramic for improved thermal cycling.
Operates reliably from -40°C to 150°C, suitable for harsh environments.
PWS D package type ensures easy integration and mechanical stability.

Product Description

The IXYS VUO62-16NO7 Bridge Rectifier Module is a high-performance industrial semiconductor device engineered for reliable AC to DC conversion in three-phase systems. Designed for panel mounting, this 5-pin module offers a peak reverse repetitive voltage of 1600 V and a forward current capability of up to 63 A, making it suitable for demanding power applications including motor drives, power supply circuits, HVAC systems, and industrial automation.

This bridge rectifier employs Direct Copper Bonding (DCB) ceramic technology, which enhances both temperature and power cycling characteristics. Its low forward voltage drop and extremely low leakage current reduce operational losses, contributing to higher system efficiency and longer service life. The module is rated for a peak non-repetitive forward surge current of 600 A, providing robust protection against transient overloads and heavy load starts.

The VUO62-16NO7 is designed to operate safely within a wide ambient temperature range from -40°C to 150°C, ensuring stable function in harsh industrial environments. The product features a panel mount and PWS D package type, simplifying installation and maintaining mechanical reliability. Its 5-pin configuration makes it ideal for three-phase rectification, supporting consistent output and compatibility with large-scale power conversion setups.

Bridge rectifiers like this module are widely used for converting alternating current (AC) to direct current (DC), employing a circuit of diodes to maintain output polarity regardless of input phase. Typical use cases include heavy-duty industrial equipment, power distribution systems, renewable energy interfacing, and backup power infrastructure.

With its IXYS pedigree, the VUO62-16NO7 delivers assured performance and compliance with UL standards (UL registered E 72873), and is manufactured in Germany with quality materials. It is not automotive-standard approved, focusing instead on industrial and commercial deployments.

This product is a preferred choice for engineers seeking a reliable, efficient, high-current bridge rectifier module for panel-mounted power conversion in diverse sectors such as manufacturing, infrastructure, laboratory systems and energy management.

Explore more Bridge Rectifier Modules, power semiconductors and industrial electronics from IXYS and leading brands in the EnvMart catalog.
