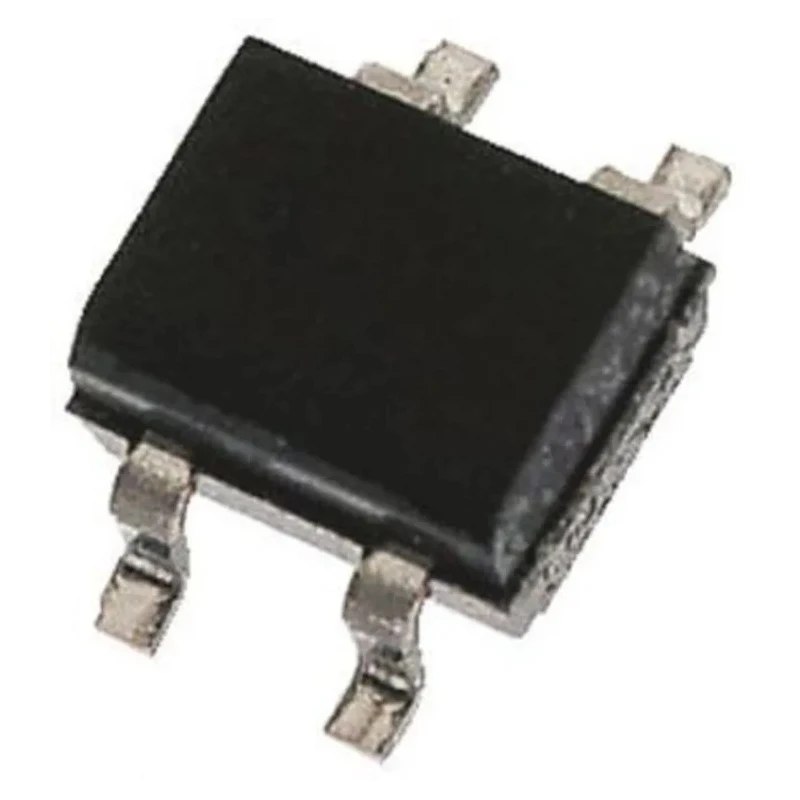

Fagor Electronica Bridge Rectifier 1000V 35A Surface Mount TO-269AA 4-Pin Single AEC-Q101 1SMZG10GP TR
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Fagor Electronica |
| Height | 2.5mm |
| Length | 4.75mm |
| Model | 1SMZG10GP TR |
| Width | 3.65mm |
| Mount Type | Surface |
| Series | 1SMZG |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-269AA |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Automotive Standard | AEC-Q101 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 35A |
| Forward Current If | 800mA |
| Peak Forward Voltage Vf | 1.15V |
Key Features
- Surface mount bridge rectifier suitable for PCB integration.
- Offers 1000V peak reverse repetitive voltage for robust protection.
- Supports up to 35A peak forward surge current and 800mA continuous current.
- Supplied in TO-269AA package with 4-pin single-phase configuration.
- Wide operating temperature range from -40 °C to +150 °C for industrial flexibility.
- Automotive standard AEC-Q101 compliance ensures reliable performance.
- Low peak forward voltage (1.15V) minimizes power loss and heating.
- Used in power conversion circuits, battery chargers, and electronic devices.
Product Description
The Fagor Electronica 1SMZG10GP TR Bridge Rectifier is a high-performance single-phase surface mount rectifier, delivering a peak reverse repetitive voltage of 1000V and a surge current capability up to 35A. It is engineered for integration into printed circuit boards, supporting demanding power conversion tasks across industrial, automotive, and electronic environments.
Its TO-269AA package offers a compact footprint (4.75mm x 3.65mm x 2.5mm), facilitating space-efficient designs in modern electronic assemblies. The 4-pin single configuration enables straightforward connection for AC-to-DC rectification of single-phase sources. The device is compliant with the automotive AEC-Q101 standard, confirming suitability for both general electronic and automotive power systems.
With a maximum continuous forward current of 800mA and wide operational temperature (-40 °C to 150 °C), this bridge rectifier demonstrates dependable thermal stability, making it suitable for environments with diverse temperature fluctuations. Its low peak forward voltage of 1.15V minimizes operational losses, and the low peak reverse current (100μA) enhances overall efficiency.
Common use cases include power adaptors, battery charging circuits, industrial hardware, and automotive electronic modules where reliable rectification and voltage regulation are required. Its surface-mount design supports automated PCB assembly processes, and the AEC-Q101 compliance positions it for high-reliability automotive control units, sensors, and actuators.
The rectifier’s construction provides protection against voltage transients and current surges, reinforcing safe operation in advanced power conversion designs. It is also suitable for various commercial and industrial projects where discrete semiconductors are used for robust DC conversion.
The Fagor Electronica 1SMZG10GP TR Bridge Rectifier stands out for its combination of compact size, wide temperature range, and high surge current tolerance, ideal for industrial, manufacturing, automotive electronics, and power supply design applications. Browse more in Bridge Rectifier Modules and discover solutions for advanced electronic system integration from Fagor Electronica and allied brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of this model is 1000V, providing robust protection in power conversion applications.
This bridge rectifier can handle a maximum continuous forward current of 800mA, making it suitable for various electronic applications.
The peak forward voltage of this unit is 1.15V, which helps minimize power loss and heating during operation.
The dimensions of the TO-269AA package are 4.75mm in length, 3.65mm in width, and 2.5mm in height.
It operates within a wide temperature range from -40 °C to +150 °C, allowing for use in diverse environmental conditions.
The peak non-repetitive forward surge current rating for this model is 35A, enabling it to handle high surge conditions.
Yes, it complies with the automotive standard AEC-Q101, ensuring reliable performance in automotive applications.
This model features a 4-pin configuration, facilitating straightforward connections for AC-to-DC rectification.
The peak reverse current for this unit is 100μA, which enhances overall efficiency in power conversion tasks.
It is commonly used in power adaptors, battery charging circuits, and automotive electronic modules for reliable rectification.
This model supports surface mounting, making it suitable for automated PCB assembly processes.
It is constructed as a single-phase bridge rectifier, designed for integration into printed circuit boards.
