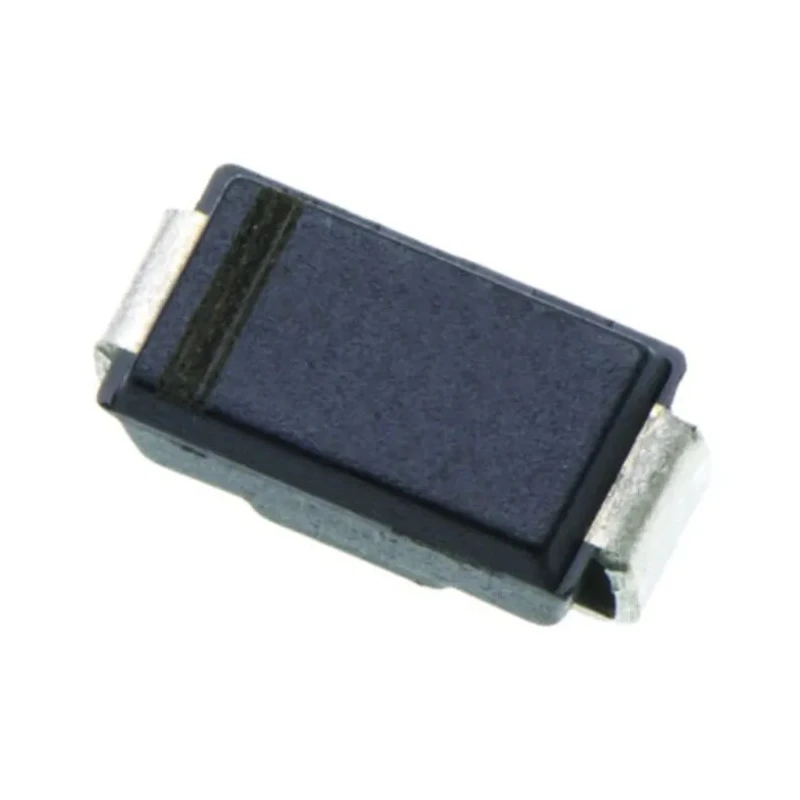

Fagor Electronica 1-Element Uni-Directional TVS Diode, 600 W, 2-Pin DO-214AA Package P6SMB18A TRTB

Fagor Electronica P6SMB18A TRTB 1-Element Uni-Directional TVS Diode is engineered for effective transient voltage suppression in electronic circuits. It features a single uni-directional diode element housed in a surface-mount DO-214AA (SMB) package, ideal for protecting sensitive semiconductor components from voltage spikes.

This diode supports a peak pulse power dissipation of 600 W and can handle maximum peak pulse currents of 24 A, ensuring robust surge protection. With a minimum breakdown voltage of 17.1 V and a maximum reverse standoff voltage of 15.3 V, it is well-suited for preventing damage from transient overvoltages.

Designed for broad industrial and electronic applications, this diode operates reliably over a temperature range from -65°C up to 175°C, with minimal reverse leakage current of 1 μA to maintain circuit efficiency. Its clamping voltage of 25.5 V offers superior circuit safety during voltage surges.

The compact and low-profile DO-214AA SMB package (5.1 mm x 3.5 mm x 2 mm) allows for efficient surface mounting on printed circuit boards in telecommunications, automotive electronics, industrial controls, and consumer electronics applications. The diode’s single-element design enables precise, uni-directional transient voltage suppression.

Manufactured in Thailand, this Fagor Electronica TVS diode meets the demands of high-quality, reliable semiconductor components used in electronic circuits and systems requiring protection from electrostatic discharge and voltage transient events.

This diode features a uni-directional configuration for effective transient voltage protection. The package type is DO-214AA (SMB), suitable for surface mounting applications. It withstands a peak pulse current up to 24 A ensuring high reliability under surge conditions.

Minimum breakdown voltage is 17.1 V with a maximum reverse standoff voltage of 15.3 V. Operating temperature ranges from -65°C to 175°C, ensuring performance in a wide temperature range. Low maximum reverse leakage current of 1 μA reduces power losses in circuits.

The clamping voltage is rated at 25.5 V, offering robust overvoltage protection. The compact dimensions are 5.1 mm length, 3.5 mm width, and 2 mm height. The product is manufactured in Thailand and is supplied new.

Equip your electronic and industrial projects with this reliable Fagor Electronica TVS Diode and protect sensitive components effectively from voltage transients. Browse the Electronics & Electricals category on EnvMart for more semiconductor protection solutions.
