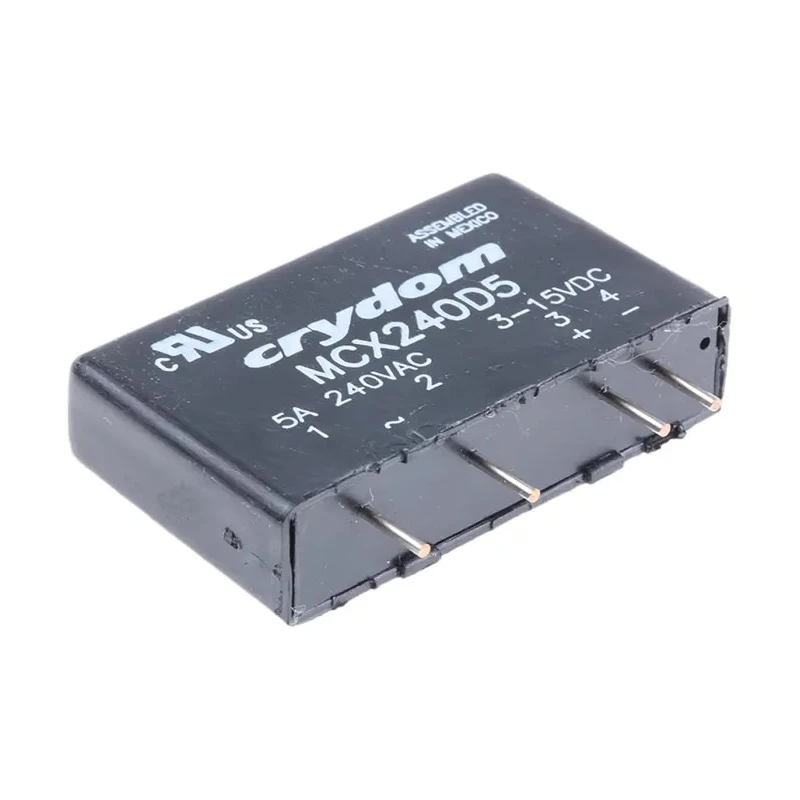

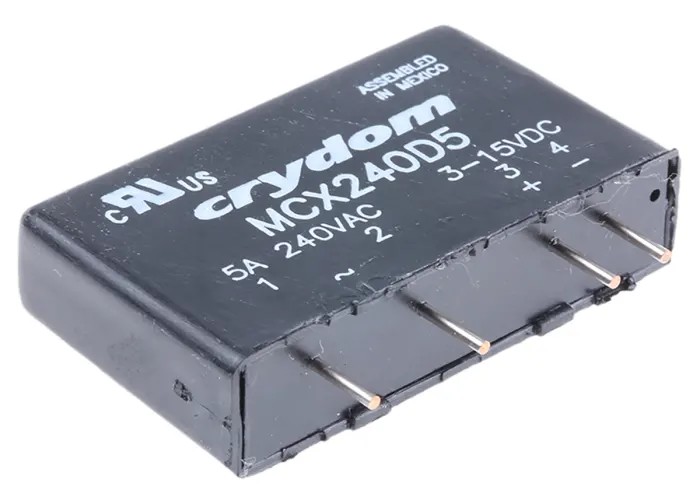

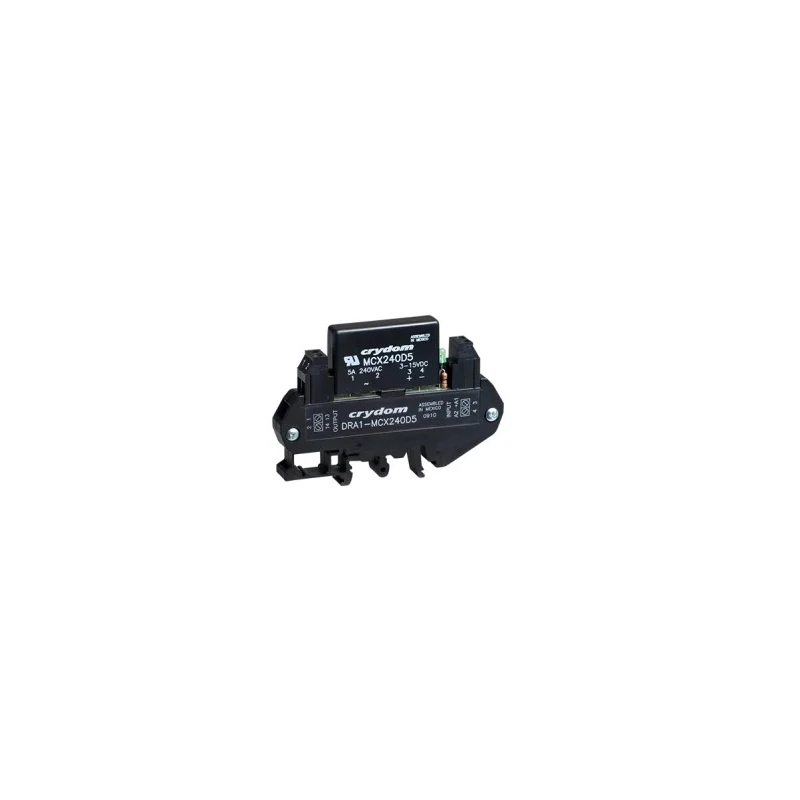

Sensata / Crydom MCX Series Solid State Relay DIN Rail Mount 5A, 280V Load, 15V Control MCX240D5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Sensata / Crydom |
| Height | 26.04mm |
| Length | 43.1mm |
| Model | MCX240D5 |
| Mount Type | DIN Rail |
| Output type | SCR |
| Series | MCX |
| Maximum Operating Temperature | 80°C |
| Capacitance | 10pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Cross |
| Maximum Load Current | 5A |
| Standards/Approvals | UL E116949, RoHS |
| Maximum Load Voltage | 280V |
| Minimum Load Voltage | 12V |
| Minimum Control Voltage | 3V dc |
| Maximum Control Voltage | 15V |
| Off State Leakage Current | 0.1mArms |
| On State Resistance | 1000000000Ω |
Key Features
- Supports DIN Rail mounting for fast and secure installation.
- Maximum load current of 5A and 280V AC load voltage suitable for various automation and industrial applications.
- Control voltage range from 3V DC to 15V DC, ideal for versatile electronic interfacing.
- Zero-cross switching ensures reduced electrical noise and reliable operation.
- Wide operating temperature range from -40°C to +80°C for robust performance in demanding environments.
- Screw terminal type provides easy wiring and secure connection.

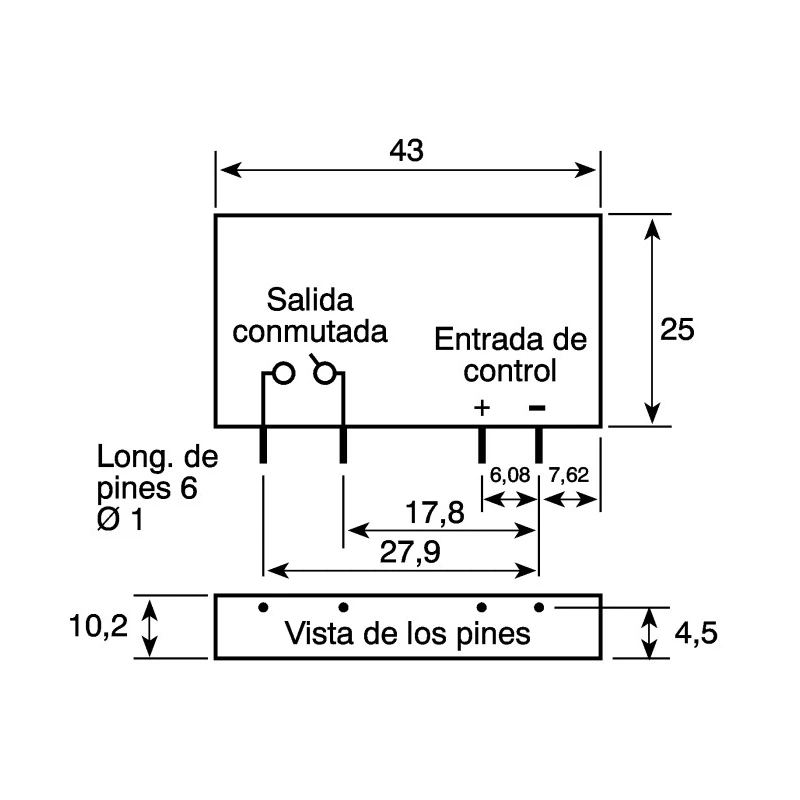

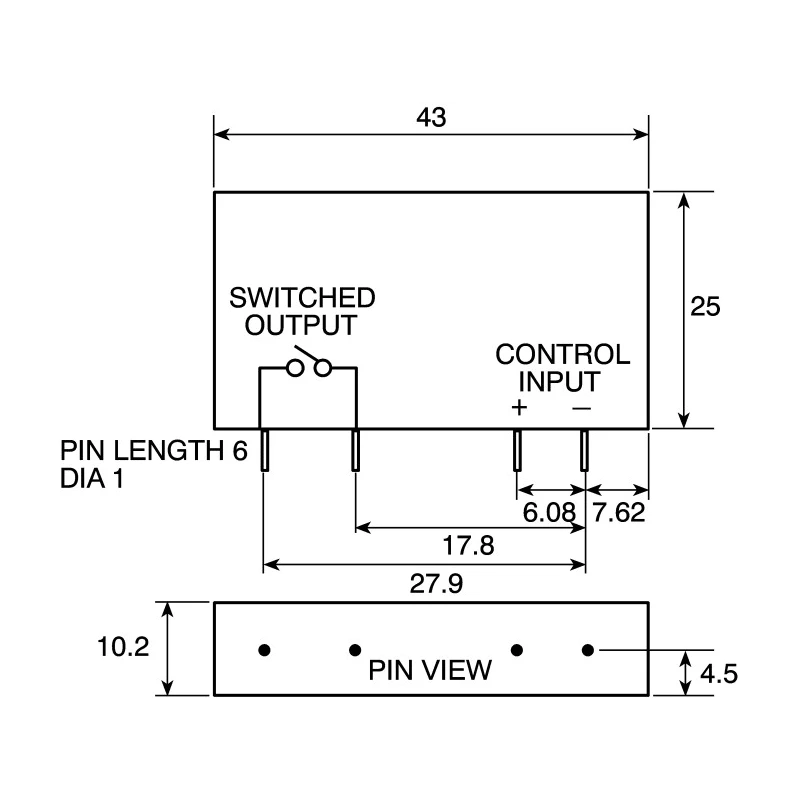

- Compact dimensions of 43.1mm length, 10.2mm width, and 26.04mm height for space-constrained panels.
- Off state leakage current of only 0.1mArms and extremely high on-state resistance.
Product Description
Sensata / Crydom MCX240D5 is a robust, industrial-grade solid state relay designed for DIN rail mounting, ideal for automation, process control, and equipment protection in demanding environments. With a 5 ampere maximum load current and a wide 12V to 280V AC load voltage range, this relay provides reliable switching for lighting, heating, and motor control applications.
The MCX240D5 features zero-cross switching, minimizing electrical noise and ensuring precision operation in automated systems. Its compact footprint - 43.1mm in length, 10.2mm in width, and 26.04mm in height - allows for efficient use of panel space, particularly suited for densely packed industrial control cabinets.
Engineered for versatility, the relay operates with a control voltage range from 3V DC up to 15V DC, making it compatible with a broad array of electronic controllers and PLCs. The screw terminal design facilitates easy, secure installation, enhancing reliability and maintaining electrical integrity over the relay's extended service life.
This solid state relay maintains performance in extreme temperature conditions, from -40°C to +80°C, making it suitable for environments requiring high durability and dependability. Its SCR output type ensures stable operation, and the extremely high on-state resistance contributes to energy efficiency and minimal heat generation.
Low off-state leakage (0.1mArms) and low capacitance (10pF) further improve reliability and reduce electrical interference. The relay meets UL E116949 and RoHS compliance, supporting global deployment and industry standards for safety and environmental impact.
Industrial applications include process controls, HVAC systems, manufacturing lines, and any scenario demanding silent, fast, and maintenance-free relay operation. Its approved performance and adaptability make the MCX240D5 a preferred choice for professionals requiring efficiency and quality in industrial automation.
Browse more Sensata / Crydom MCX Series solid state relays and related DIN rail automation products in the Solid State Relay category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 5A.
It operates with a control voltage range from 3V DC to 15V DC.
This relay can handle a load voltage range from 12V to 280V AC.
The operating temperature range is from -40°C to +80°C.
It supports DIN rail mounting for fast and secure installation.
The dimensions are 43.1mm in length, 10.2mm in width, and 26.04mm in height.
The output type is SCR (Silicon Controlled Rectifier).
The off state leakage current is 0.1mArms.
It utilizes zero-cross switching to minimize electrical noise.
It features screw terminal type for easy wiring and secure connection.
It meets UL E116949 and RoHS compliance standards.
It is suitable for automation, process control, HVAC systems, and equipment protection.
