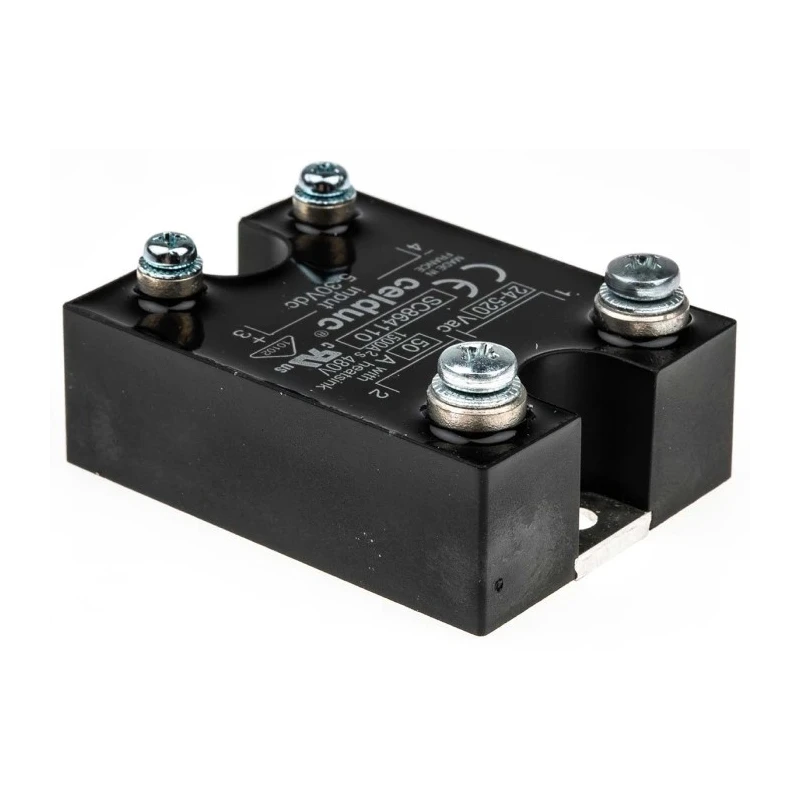

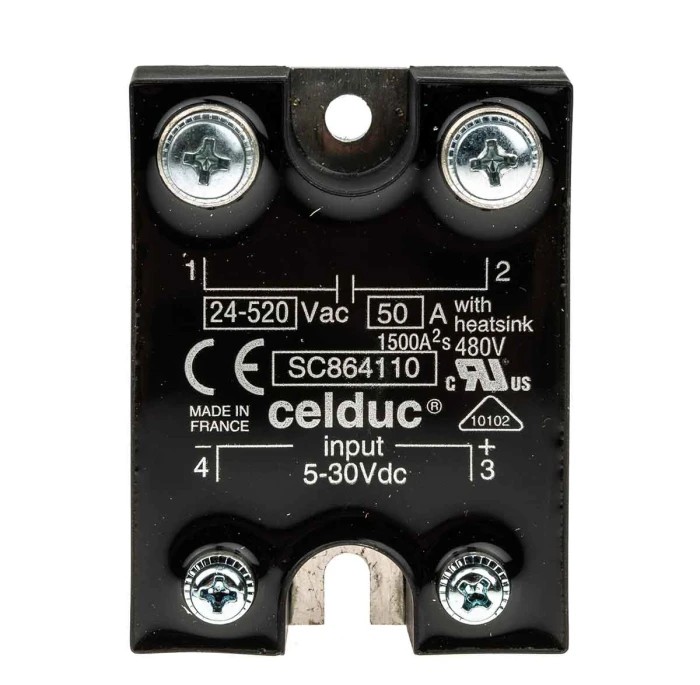

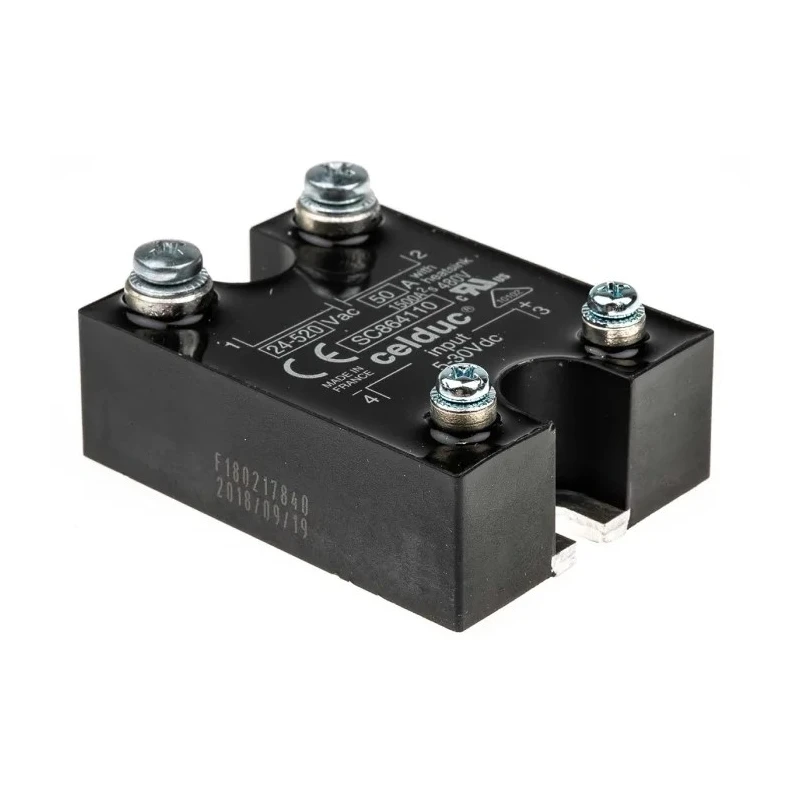

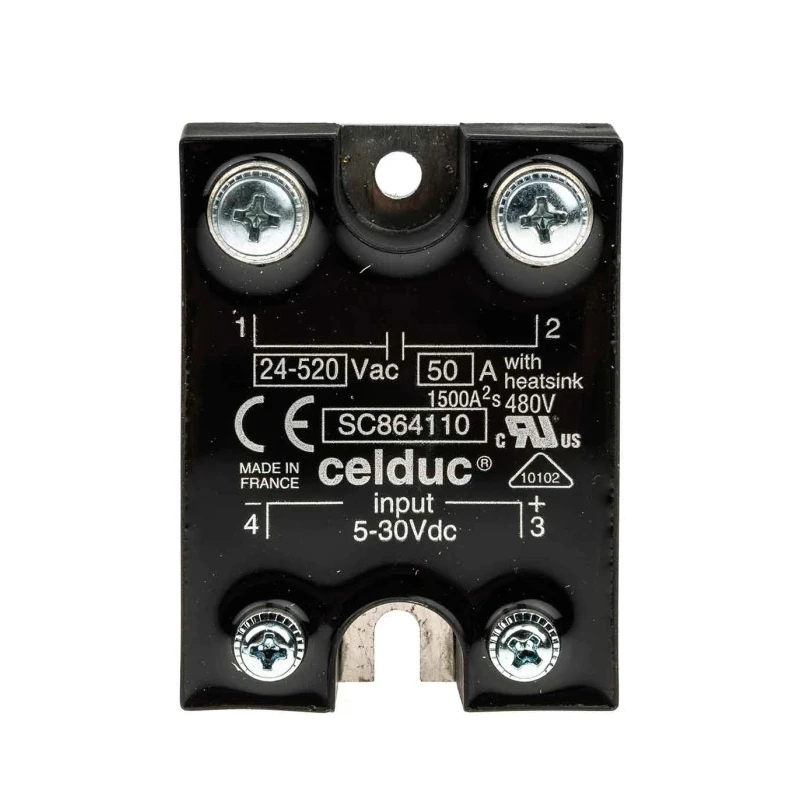

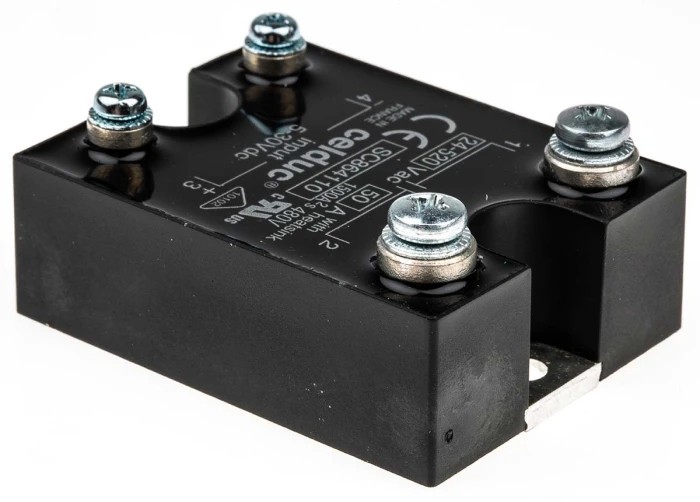

Celduc SC8 Series Solid State Relay 50A, Panel Mount, 520Vrms Load, 30V DC Control SC864110
Specifications
| Country of Origin | France |
|---|---|
| Brand | Celduc |
| Height | 27mm |
| Length | 58.2mm |
| Model | SC864110 |
| IP Rating | IP20 |
| Width | 44.5mm |
| Mount Type | Panel |
| Series | SC8 |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 50A |
| Standards/Approvals | UR |
| Minimum Load Voltage | 400V |
| Minimum Control Voltage | 5V dc |
| Maximum Control Voltage | 30V dc |
| Off State Leakage Current | 3mA |
Key Features
- Provides robust switching for loads up to 50A using solid state technology.
- Supports panel mounting for secure installation in control systems.
- Operates with load voltages up to 520Vrms and control voltages up to 30V DC.
- Zero cross switching ensures safe and reliable operation under resistive loads.
- Features screw terminals for easy electrical connection and IP20 protection rating.
- Offers a wide operating temperature range from -40°C to 100°C.
- Designed for silent operation and unlimited switching cycles.
- Low leakage current in off state and UR standards compliance.
Product Description
The Celduc SC864110 solid state relay is a high-performance panel-mount device engineered for industrial switching applications. Capable of handling loads up to 50A, this relay leverages advanced solid state technology to deliver reliable, silent, and maintenance-free operation. It is especially suited for environments requiring frequent and unlimited switching cycles, such as automated process controls and HVAC systems.
This relay is designed to operate with load voltages up to 520Vrms and control voltages up to 30V DC. Its synchronous switching with zero-cross functionality minimizes electromagnetic interference and ensures safe operation under resistive loads. The panel-mount design simplifies integration into control cabinets and panels, while screw terminal connections allow for quick and secure wiring during installation or servicing.
With an IP20 protection rating, the SC864110 offers basic enclosure protection against dust and accidental contact, enhancing safety for both equipment and operators. The relay boasts a broad operating temperature range from -40°C to 100°C, enabling stable performance in demanding environments. The off state leakage current is limited to just 3mA, supporting energy efficiency and precise switching control.

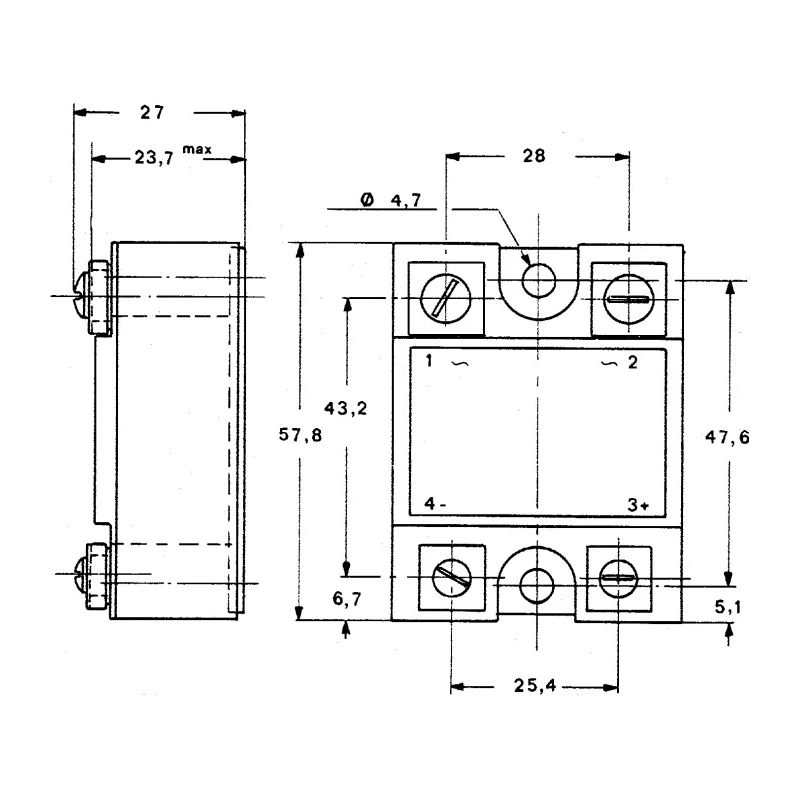

Its compact dimensions - 58.2mm length, 44.5mm width, and 27mm height - make it ideal for applications where space conservation is critical. Compliance with UR standards affirms the device's suitability for regulated industrial settings. The relay does not produce mechanical noise during switching, ensuring silent operation and longevity in continuous-use scenarios.
Celduc SC8 Series relays like the SC864110 are widely used in industrial automation, heating systems, motor control, solenoids, brakes, and home automation. Typical users include process engineers, automation panel builders, and maintenance teams working in factories, laboratories, and commercial control installations.
Explore more industrial relays, panel mount devices, and switching solutions from Celduc and other brands in the Solid State Relay category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 50A.
This unit has dimensions of 58.2mm in length, 44.5mm in width, and 27mm in height.
It operates within a temperature range of -40°C to 100°C.
This relay supports panel mounting for secure installation in control systems.
The control voltage range is from 5V DC to 30V DC.
It has an IP20 protection rating, providing basic enclosure protection against dust and accidental contact.
Zero cross switching minimizes electromagnetic interference and ensures safe operation under resistive loads.
It features screw terminals for easy and secure electrical connections.
The off state leakage current is limited to 3mA, supporting energy efficiency.
It complies with UR standards, affirming its suitability for regulated industrial settings.
It is suitable for industrial automation, heating systems, motor control, solenoids, and home automation.
The country of origin for this relay is France.
