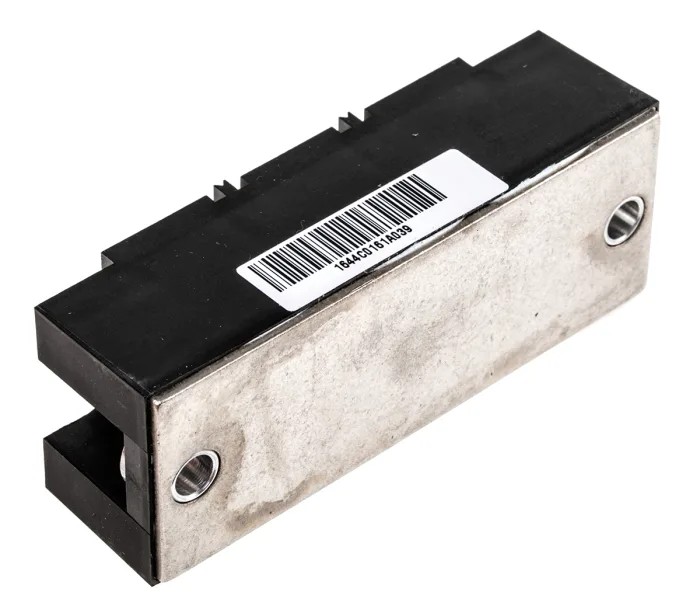

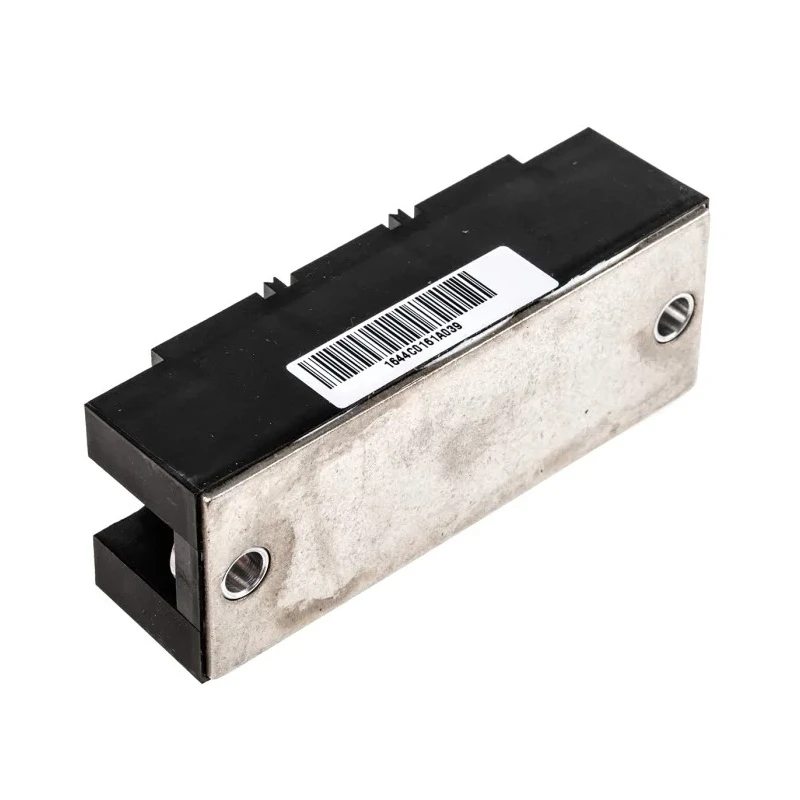

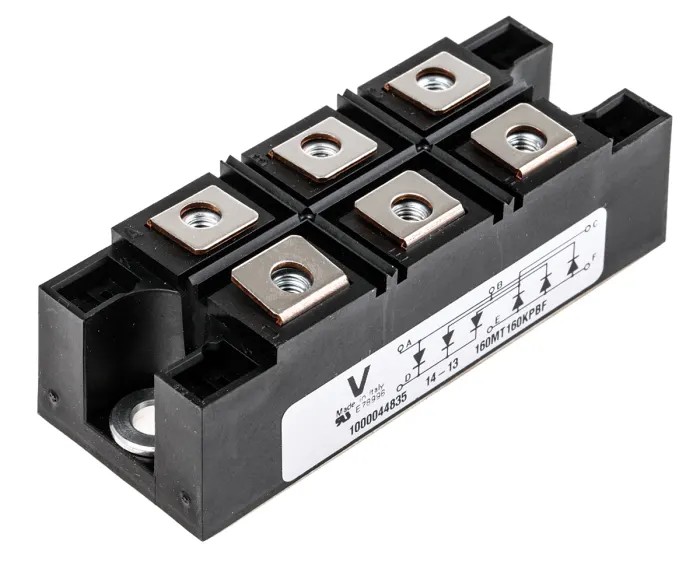

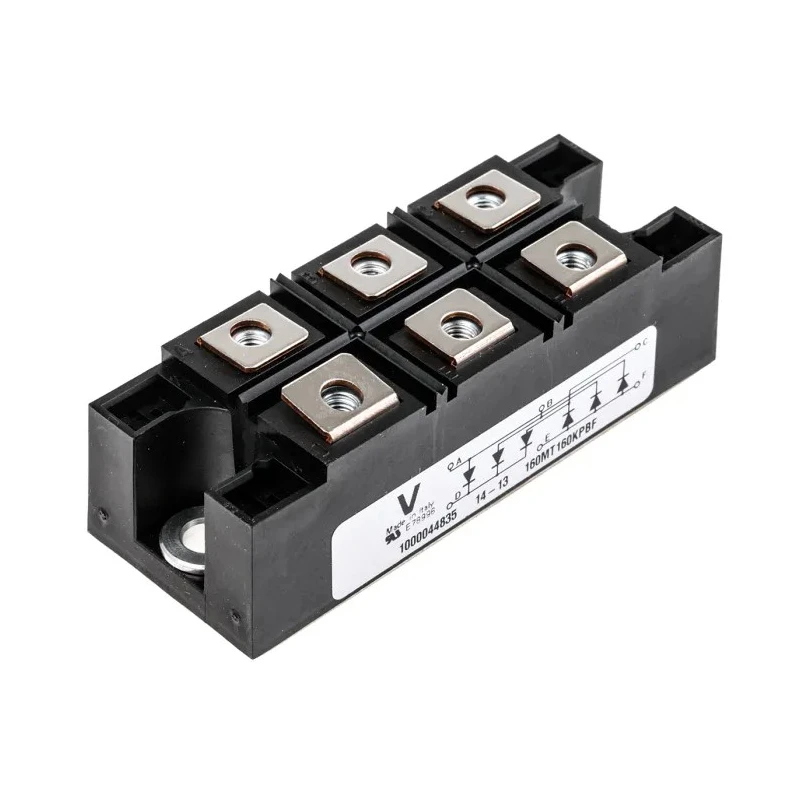

Vishay Bridge Rectifier Module 1600 V 1.5 kA 6-Pin Panel Mount INT-A-PAK VS-160MT160KPBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 30mm |
| Length | 94mm |
| Model | VS-160MT160KPBF |
| Width | 35mm |
| Mount Type | Panel |
| Series | VS-160MT |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | INT-A-PAK |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 3 |
| Pin Count | 6 |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.5kA |
| Forward Current If | 200A |
| Peak Forward Voltage Vf | 1.49V |
Key Features
- This 3-phase bridge rectifier module includes 6 pins for reliable electrical connections.
- Panel mountable with INT-A-PAK package ensuring high thermal conductivity and electrical isolation.
- Operates within a wide temperature range from -40°C to 150°C for demanding environments.
- Forward current of 200 A supports significant power applications.

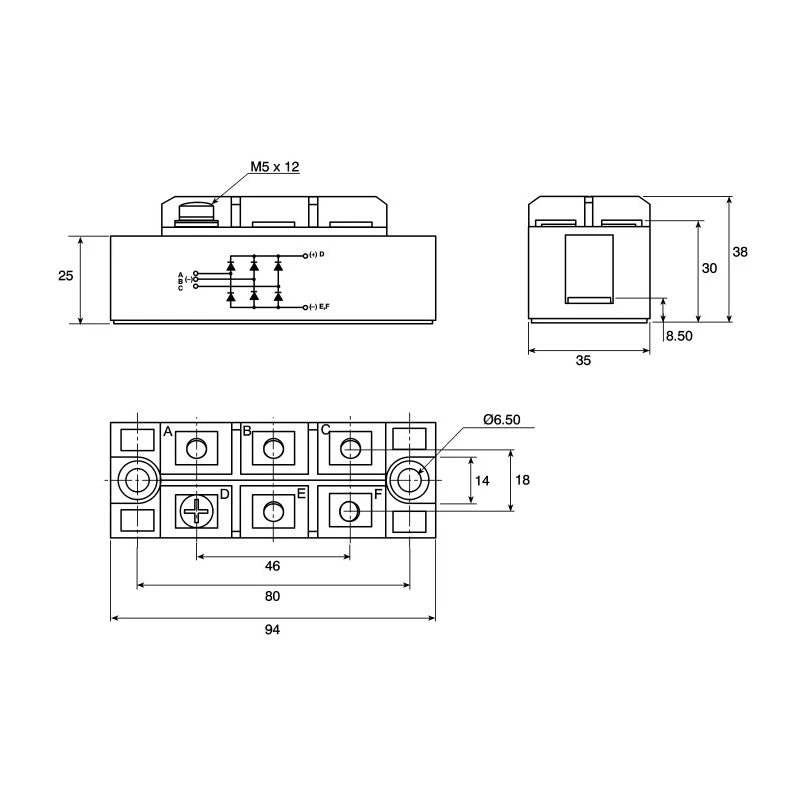

- Compact design with dimensions length 94 mm, width 35 mm, and height 30 mm optimizes space in electronic assemblies.
- Peak forward voltage of 1.49 V and peak reverse current of 10 mA improve efficiency.
- Ideal for power conversion in industrial, electronic, and semiconductor systems.
- Manufactured in India maintaining quality standards with stringent production control.
Product Description
Vishay VS-160MT160KPBF Bridge Rectifier Module is a robust three-phase power semiconductor device designed for converting AC input into DC output with full-wave rectification. Rated at 1600 V peak reverse repetitive voltage and capable of handling a peak non-repetitive forward surge current of 1.5 kA, this module supports demanding power electronics applications.
The module features a durable INT-A-PAK package with a panel mount design offering excellent thermal conductivity and an electrically insulated casing to ensure safe and efficient operation. Designed to operate in harsh environments, it withstands temperatures ranging from -40°C to 150°C, making it suitable for industrial and commercial uses.
This 6-pin single configuration bridge rectifier module has a forward current capacity of 200 A, with a low peak forward voltage of 1.49 V and minimal peak reverse current leakage of 10 mA, optimizing power efficiency and reliability.
Compact dimensions (94 mm length, 35 mm width, 30 mm height) allow integration into space-constrained equipment without compromising performance. The device complies with industry standards ensuring quality and longevity.
Common applications include use in power supplies, motor drives, industrial rectification systems, and renewable energy equipment, supporting electronic, laboratory, and manufacturing sectors.
This 3-phase Bridge Rectifier Module includes 6 pins for reliable electrical connections. Panel mountable INT-A-PAK package offers high thermal conductivity with an insulated case for safety. Wide operating temperature range from -40°C to 150°C supports versatile industrial environments.
High forward current rating of 200 A enables handling of substantial power loads. Compact form factor with 94 mm length, 35 mm width, and 30 mm height ensures ease of installation. Low peak forward voltage and peak reverse current improve operational efficiency.
Manufactured under strict quality controls in India, assuring product reliability. Designed specifically for three-phase full-wave rectification applications. Explore the versatile Vishay semiconductor range on EnvMart for all your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of this module is 1600 V.
This model has a forward current capacity of 200 A.
The dimensions are 94 mm in length, 35 mm in width, and 30 mm in height.
The maximum operating temperature is 150°C.
It supports panel mounting with an INT-A-PAK package.
The peak forward voltage is 1.49 V.
The peak non-repetitive forward surge current rating is 1.5 kA.
The minimum operating temperature is -40°C.
This module has 6 pins for electrical connections.
The peak reverse current is 10 mA.
This product is manufactured in India.
It is suitable for power conversion in industrial, electronic, and semiconductor systems.
