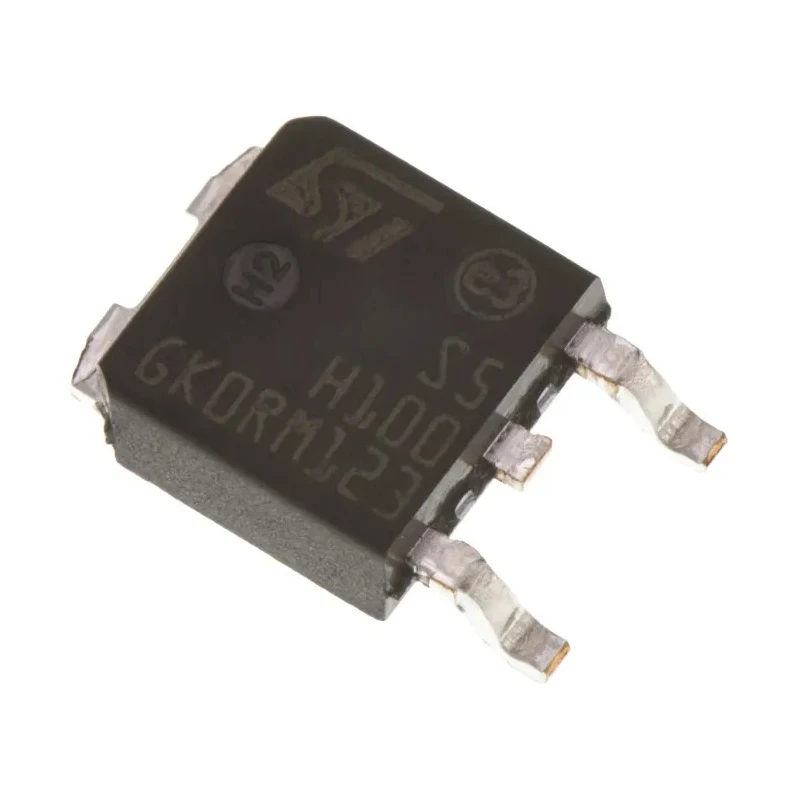

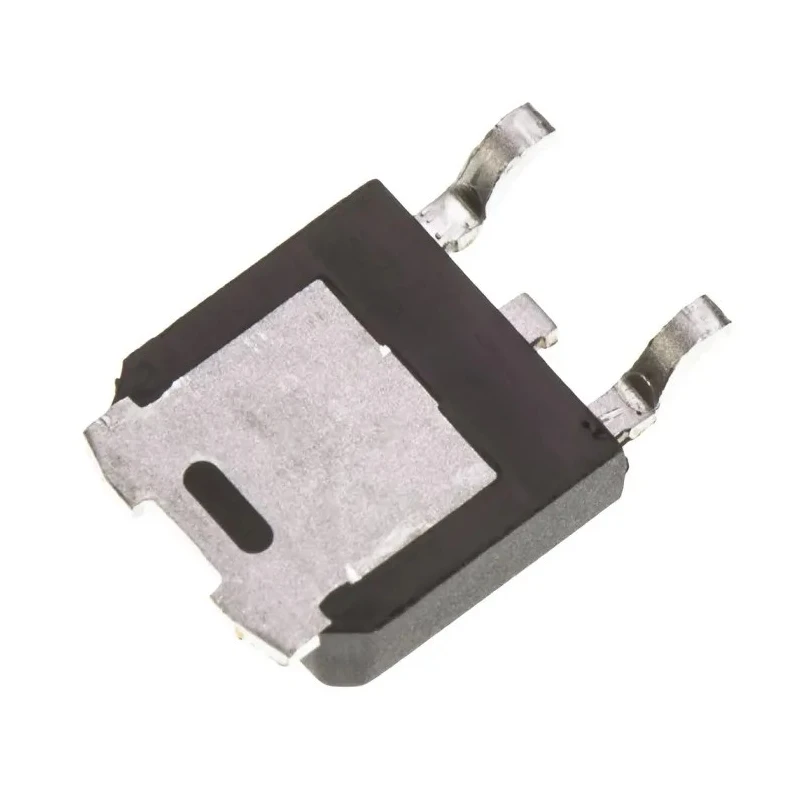

STMicroelectronics Schottky Barrier Diode 100V 5A TO-252 Surface Mount STPS5H100B
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.4mm |
| Length | 6.6mm |
| Model | STPS5H100B |
| Width | 6.2mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 3.5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 730mV |
Key Features
- Schottky barrier rectifier suitable for high efficiency applications.
- Maximum continuous forward current of 5A and peak surge current up to 75A.
- Surface mount design with TO-252 (DPAK) package for compact PCB integration.
- Excellent performance in power supply and switching tasks.
- Low forward voltage drop of 730mV ensures energy efficiency.
- Wide operating temperature from -65°C to 175°C for robust environments.
- Peak reverse repetitive voltage rated at 100V.
Product Description
STMicroelectronics STPS5H100B is a high-performance Schottky barrier diode designed for use in power supply, rectifier, and switching applications where efficiency and low voltage drop are critical. This device offers a maximum continuous forward current of 5 amps, making it ideal for circuits requiring substantial current handling capabilities while maintaining a low profile.
The diode’s TO-252 (DPAK) surface mount package enables space-saving implementation on printed circuits. With a peak reverse repetitive voltage of 100 volts and a forward voltage drop of only 730 millivolts, the STPS5H100B ensures minimized energy loss and reduced heat generation.
Its single configuration simplifies integration for rectification tasks in both industrial and commercial electronics. The product supports surge conditions with a peak forward surge current rating of up to 75A, suitable for demanding power cycles.
The STPS5H100B’s wide temperature range from -65°C to 175°C allows use in environments from laboratory equipment to industrial automation systems, and its minimal leakage current (peak reverse current of 3.5μA) contributes to energy savings and operational reliability.
This Schottky diode finds applications in switching power supplies, DC-DC converters, battery chargers, and other systems requiring efficient, fast rectification and reliable surface mount performance.
Key technical features include surface mountability, compact TO-252 (DPAK) package, low forward voltage, high surge and current ratings, and robust temperature endurance. The device is RoHS compliant for modern manufacturing requirements.
Schottky barrier rectifier suitable for high efficiency applications. Maximum continuous forward current of 5A and peak surge current up to 75A. Surface mount design with TO-252 (DPAK) package for compact PCB integration.
Excellent performance in power supply and switching tasks. Low forward voltage drop of 730mV ensures energy efficiency. Wide operating temperature from -65°C to 175°C for robust environments. Peak reverse repetitive voltage rated at 100V.
Ideal for industrial, consumer electronics, laboratory instrumentation, and commercial systems requiring reliable rectification. Explore more Schottky Diodes and semiconductor solutions from STMicroelectronics in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 5A.
The forward voltage drop is 730mV, which contributes to its energy efficiency.
The dimensions of the TO-252 package are 6.6mm in length, 6.2mm in width, and 2.4mm in height.
The peak non-repetitive forward surge current rating is up to 75A.
It operates within a temperature range of -65°C to 175°C.
This model has a pin count of 3.
This diode is a Schottky rectifier, designed for high efficiency applications.
The diode configuration is single, which simplifies integration for rectification tasks.
Yes, this diode is RoHS compliant, meeting modern manufacturing requirements.
