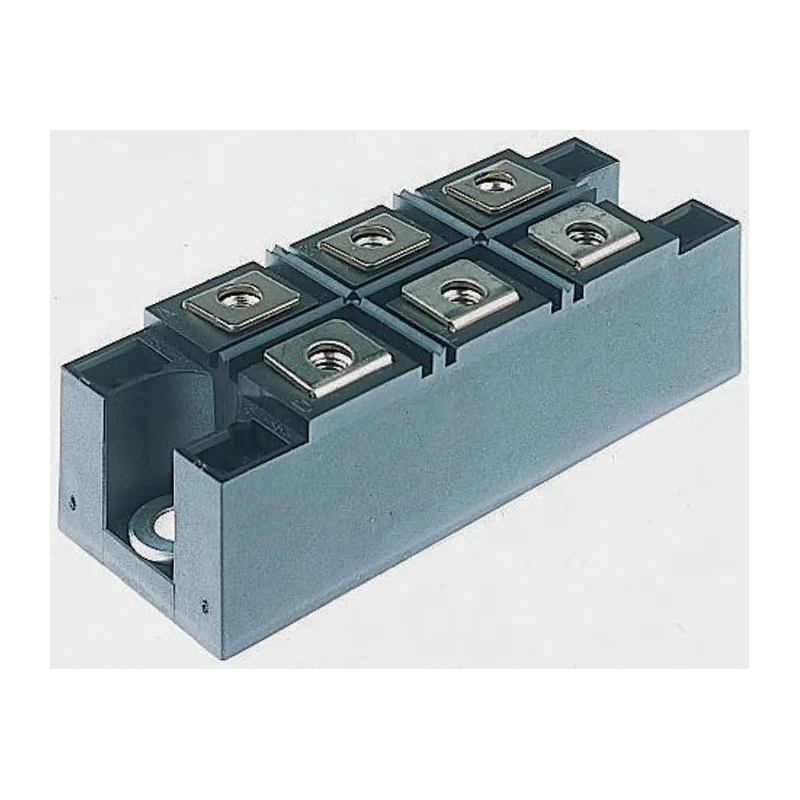

Vishay Bridge Rectifier Module 1600 V 810 A, 6-Pin Single VS-90MT160KPBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 30mm |
| Length | 94mm |
| Model | VS-90MT160KPBF |
| Width | 35mm |
| Mount Type | Panel |
| Series | VS-90MT |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | INT-A-PAK |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 3 |
| Pin Count | 6 |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 810A |
| Forward Current If | 120A |
| Peak Forward Voltage Vf | 1.6V |
Key Features
- Operates at a forward current of 120 A ensuring efficient rectification.
- Designed to withstand maximum operating temperature up to 150°C.
- Built with a panel mount type in INT-A-PAK package for easy integration.
- Compatible with three-phase power systems and includes screw terminals for reliable connections.
- Features high thermal conductivity package and electrical isolation rated at 4000 Vrms.
- Offers peak forward voltage of 1.6 V minimizing power loss during operation.
- Handles peak reverse current of 10 mA ensuring robustness under voltage stress.
Product Description
Vishay VS-90MT160KPBF Bridge Rectifier Module is engineered for industrial and commercial electronic applications requiring high-performance three-phase full-wave rectification. This module converts AC input into DC output efficiently with a peak reverse repetitive voltage rating of 1600 V and a forward current of 120 A.
Its INT-A-PAK industry standard package ensures compatibility with power modules and features excellent power-to-volume ratio. The panel mount type design with screw terminals provides secure and effective connectivity while the electrical case insulation withstands isolating voltage up to 4000 Vrms.
The device sustains maximum operating temperatures up to 150°C and minimum of -40°C, making it reliable across a wide range of environmental conditions. Peak surge forward current capability of 810 A ensures robustness under transient currents related to power spikes or start-up conditions.

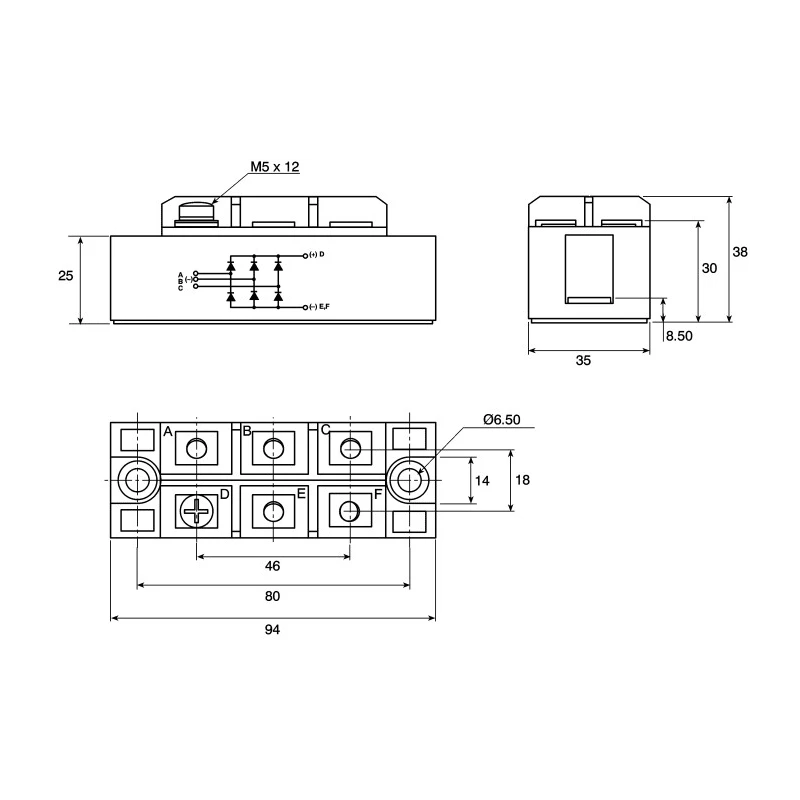

Compact mechanical dimensions of 94 mm length, 35 mm width, and 30 mm height facilitate easy integration into various electronic assemblies. The peak forward voltage of 1.6 V ensures minimal voltage drop to optimize power efficiency, while the peak reverse current of 10 mA guarantees device safety under reverse bias conditions.
Operates efficiently in industrial, automotive, and power electronic applications. Designed for three-phase systems ensuring consistent full-wave rectification. High thermal conductivity package prolongs device life and performance stability.
Isolated electrically for safer circuit designs. Robust mechanical design compatible with standard power module footprints.
This Vishay semiconductor Bridge Rectifier Module is ideal for use in power supplies, industrial controls, battery chargers, and HVAC systems. Designed to meet high reliability standards, it supports demanding industrial and laboratory environments.
Explore the Electronics & Electricals category at EnvMart for more Vishay power semiconductor devices and compatible electronic components to enhance your industrial projects and manufacturing workflows.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of the Vishay VS-90MT160KPBF is 150°C.
This model has a peak reverse repetitive voltage rating of 1600 V.
The forward current rating of the VS-90MT160KPBF is 120 A.
The dimensions of the Vishay VS-90MT160KPBF are 94 mm in length, 35 mm in width, and 30 mm in height.
It features a panel mount type design.
The peak forward voltage of the VS-90MT160KPBF is 1.6 V.
This module can handle a peak non-repetitive forward surge current of 810 A.
Yes, it is designed to be compatible with three-phase power systems.
The minimum operating temperature is -40°C.
The electrical isolation rating is 4000 Vrms.
The peak reverse current for this model is 10 mA.
It comes in an INT-A-PAK package type.
